AV131
MAINTENANCE MANUAL
2.3 Maintenance Function
D79MEC-10-030-A0
2.3-3
2.3.3 Function
Condition
Maintenance switch is provided on the front of the machine.
This switch disable the safety interlock switch to perform maintenance work.
Maintenance SW ON
ON with safety stop
error cleared
Front
Safety interlock SW
(Front cover)
Rear
Safety interlock SW
(Rear cover)
Disabled
Enabled
Enabled
Enabled
Screen message During maintenance
Maintenance switch
abnormal
Only NC axis jog movement is allowed during maintenance. (NC movement will be disabled.)

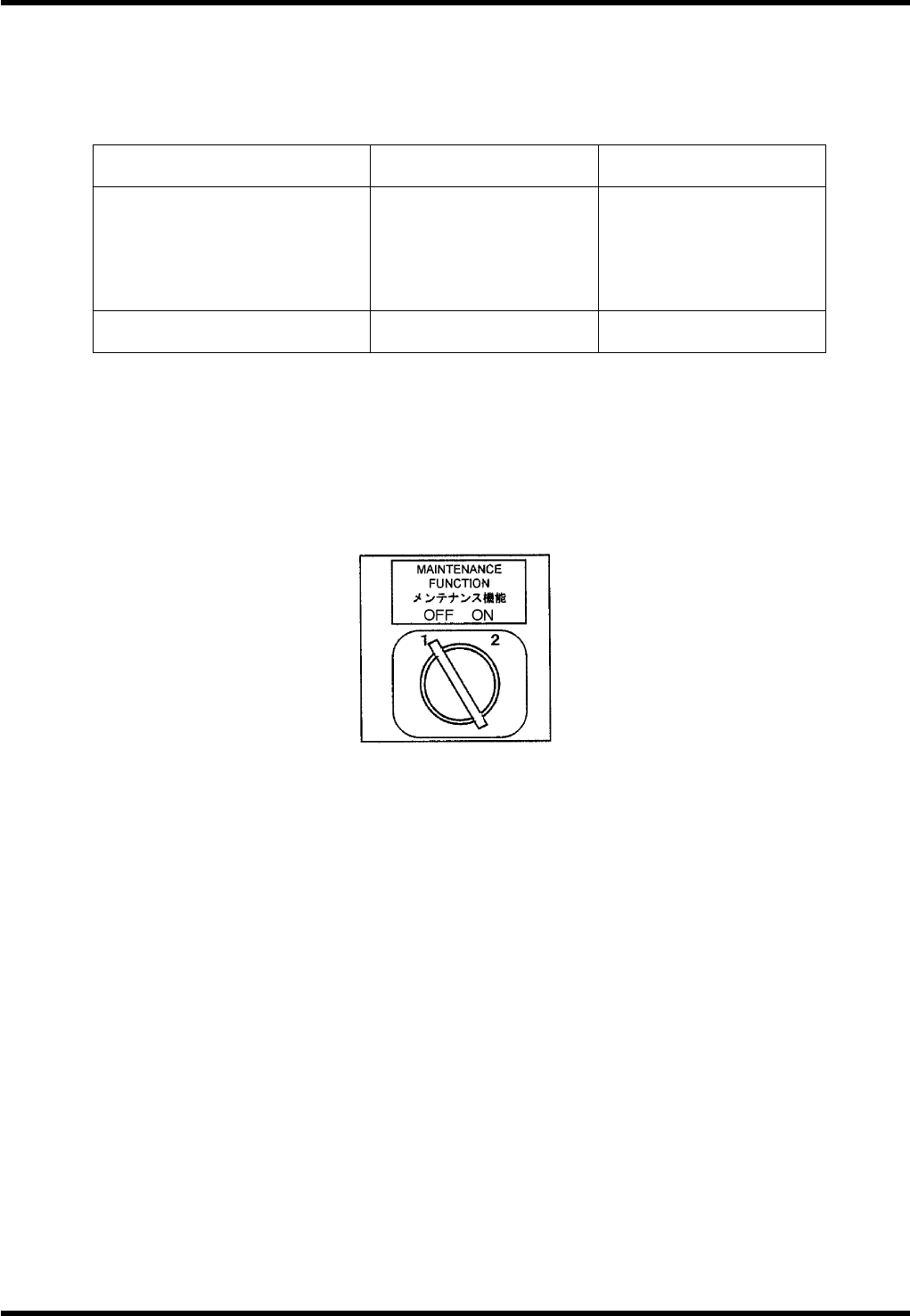

Maintenance Switch
=REMARKS=
When the maintenance switch is in the ON position, it is not possible to switch to the rear control panel.
SW: TM3-8222EZ / S-N
AV131
MAINTENANCE MANUAL
2.3 Maintenance Function
D79MEC-10-030-A0
2.3-4

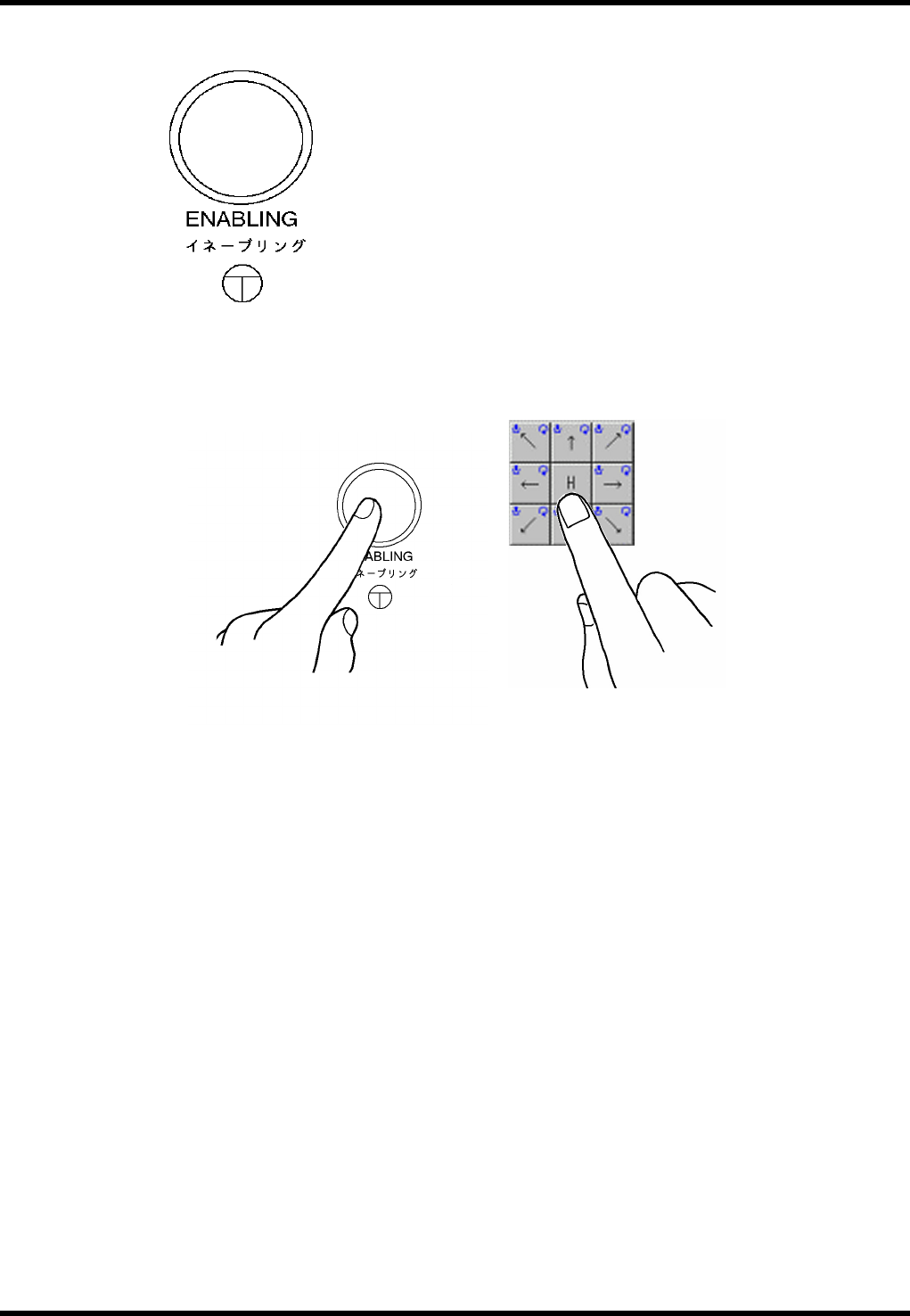

Enabling Switch
To execute jog operation of each NC axis from the control panel during maintenance, operate with one
hand while pressing the enabling switch with the other hand for safety reason.
SW: LW6MB-M1C2MLG (IDEC)
AV131
MAINTENANCE MANUAL
2.3 Maintenance Function
D79MEC-10-030-A0
2.3-5
2.3.4 Operational Restrictions
Inhibited Operations (Cannot be Stopped Unless Operating Intentionally)
Origin return of all axes
Axis positioning from the Machine adjust - NC MOVE screen
XY axis positioning from the Auto Camera Scale Measurement screen
XY axis positioning from the Board 2 Holes Teaching screen
Z axis positioning by pressing “MOVE WAITING POSITION” on the feeder carriage control panel
Origin return of the rail axis
Positioning of the rail axis from the Machine adjust - Width MOVE screen
Automatic width adjustment from the PCB Data Select screen
Automatic width adjustment from the PCB Data Edit screen
Rail width adjustment from the PCB Data Teaching screen
Any axis operation during production
Permissible Operations (Can be Stopped If Quitting Operation)
Release of safety stop by pressing <START>
Teaching of each axis from the Machine adjust - NC JOG screen (low speed)
Teaching of the XY axis from the Binary Level Setting screen (low speed)
Teaching of the XY axis from the Manual Camera Scale Measurement screen (low speed)
Teaching of the XY axis from the Auto Camera Scale Measurement screen (low speed)
Teaching of the XY axis from the Board 2 Holes screen (low speed)
Teaching of the rail axis from the Machine adjust - Width JOG screen (low speed)
Teaching of the rail axis from the Board Data Teaching screen (low speed)
