AV131 MAINTENANCE MANUAL 3.1 O utline of I nstallati on D79MEC- 11-010-A0 3.1- 2 3.1. 3 Transport Tr ansport of t he machine is carri ed out by our servi ce personnel . = R E M A R K S = If the customer shoul d m ove the…
AV131
MAINTENANCE MANUAL
3.1 Outline of Installation
D79MEC-11-010-A0
3.1-1
3.1. Outline of Installation
D79MEC-11-010-A0
Basically, installation is carried out by our service personnel.
This chapter describes fundamental installation works.
3.1.1 Environmental Requirements
If the machine has not been installed properly, expected functions cannot be attained.
Install the machine in a location where the following conditions can be met:
Adequate electric capacity to the machine
The power supply voltage fluctuation shall be within ±10V for 200/220V AC or within ±20V for
380/400/420/480V AC.
Grounding work with Class D (Class 3) or upper grade.
Supply air of 0.5 MPa and adequate rate must be assured.
Room temperature in the range of 10 to 30°C.
Humidity in the range of 25 (0°C) to 75% (40°C) with no condensation.
Height above sea level: 1,000 m or below.
Storage temperature in the range of -20 to 60°C.
.Storage humidity of 75% (60°C) or less (relative humidity), 0.029 kg/kg or less (absolute humidity).
Capable of sustaining the mass of the machine.
No considerable vibration.
No inflammable or corrosive gas.
No dust and/or soot.
=REMARKS=
This machine complies with the essential health and safety requirements in accordance with the
industrial provisions of EC Council Directives. Accordingly, the electrical components, cables and
devices must be our recommended maintenance-parts.
Our customers should not remodel machine by another maintenance-parts all by oneself.

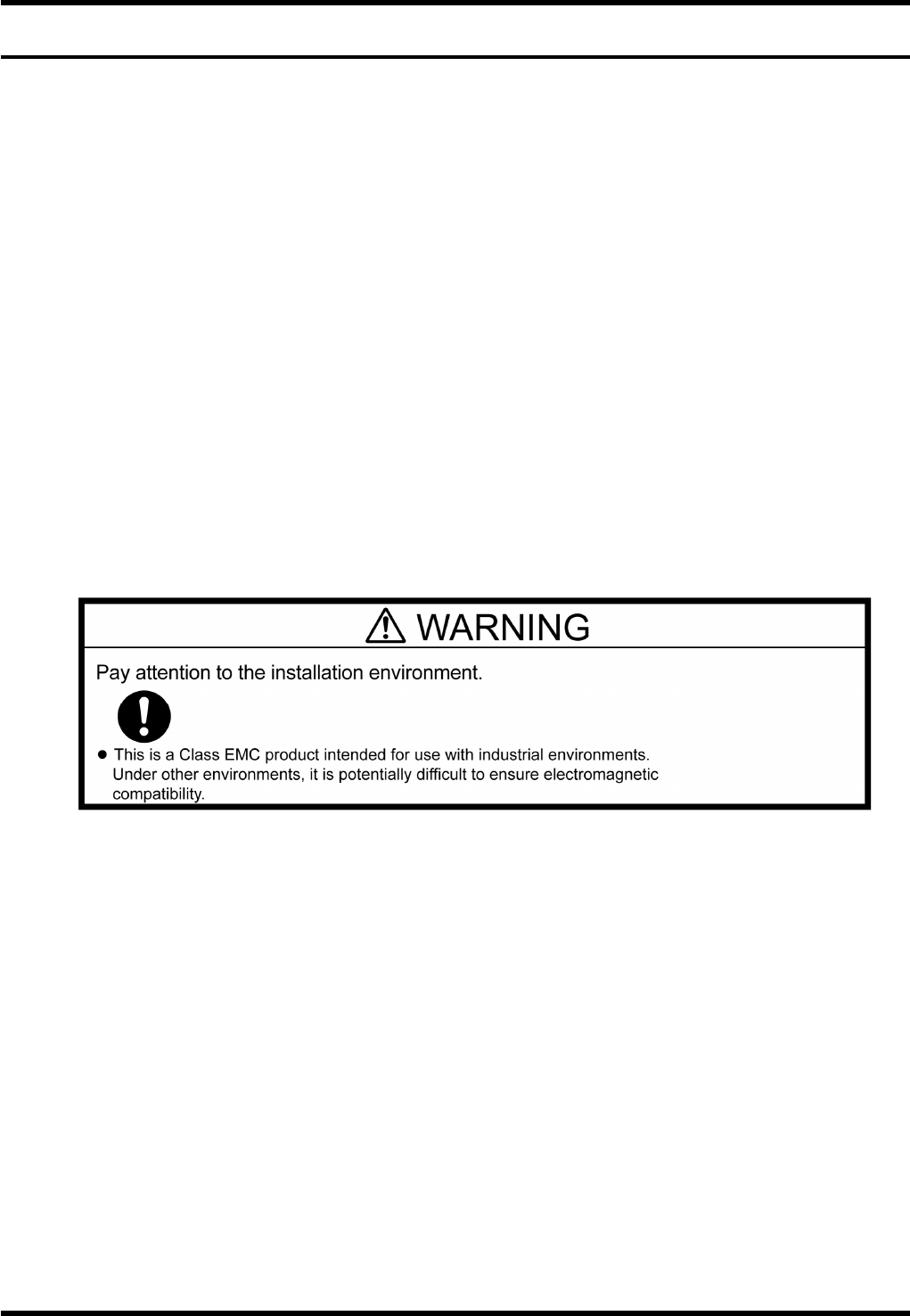

3.1.2 Disturbance of TV Monitor due to Electromagnetic Noise
If this machine is exposed to strong radial field or strong magnetic field, TV monitor may be disturbed. But
this does not cause functional loss.
AV131
MAINTENANCE MANUAL
3.1 Outline of Installation
D79MEC-11-010-A0
3.1-2

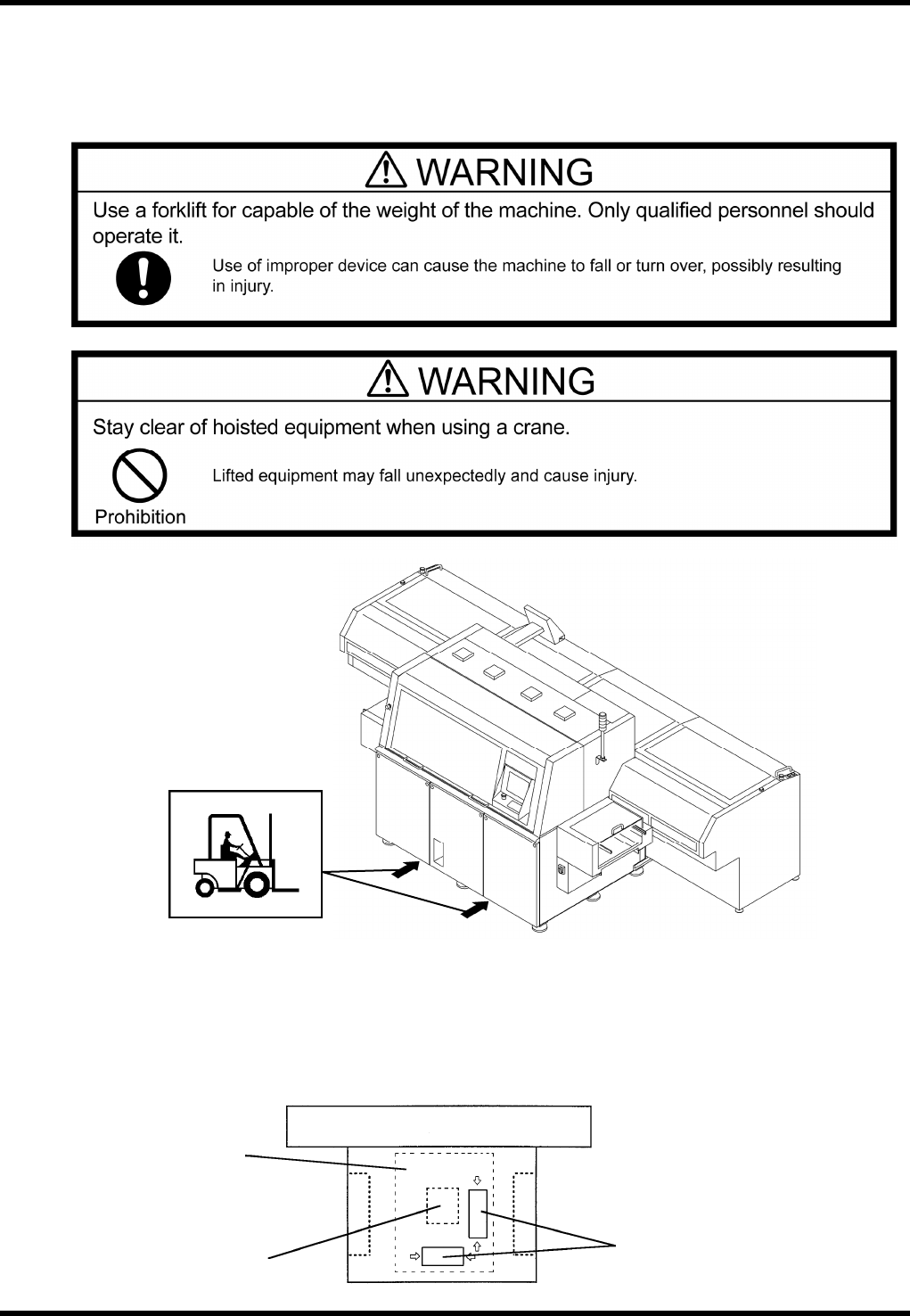

3.1.3 Transport
Transport of the machine is carried out by our service personnel.
=REMARKS=
If the customer should move the machine by himself, use an adequate apparatus capable of the weight
of the machine.
3.1.4 Installation
Install the machine even with the ground by using a spirit level.
=REMARKS=
If the machine has not been installed level with the ground, the expected functions cannot be attained.
The place where the folk lifter comes in.
Part supply unit
Places where the spirit
level takes a seat
Loader
Unloader
Anvil unit
XY table base
AV131
MAINTENANCE MANUAL
3.1 Outline of Installation
D79MEC-11-010-A0
3.1-3
3.1.5 Removing Fixing Brackets (Red)
This machine is delivered with the X-Y table, Z axis and Z covers secured with the fixing brackets (Red) to
prevent them from moving during transport.
Before starting up the machine, remove all the fixing brackets in the photos below.
Store the removed fixing brackets.
1.
1. X-Y table unit
2. Z axis
3. Z axis covers
Product No.: 1087100440301 (x 2)
Product No.: 108710233901 (x 2)
108710234001 (x 4)
Product No.: 108710233901 (x 4)
108710234101 (x 4)
Product No.: 108710403301 (x 1)
