14 Modular machine concept Example of SIPLACE X4i S NC NC C&P20 P C&P20 P NC NC PA1 PA2 C&P20 P COT In C&P20 P PA1 Placement area 1 PA2 Placement area 2 OP Operator pan el C&P20 P SIPLACE SpeedStar NC…
13

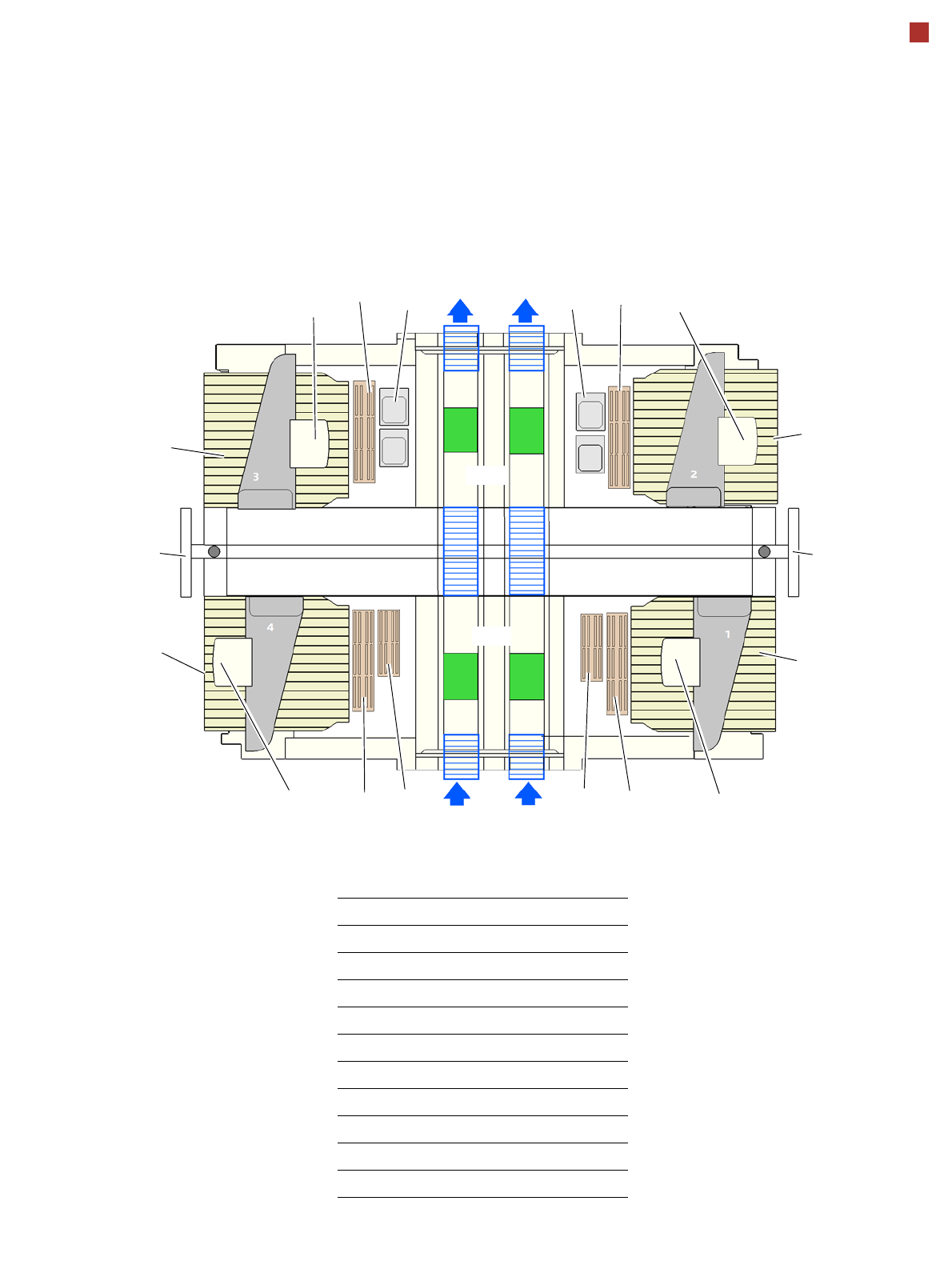

Modular machine concept
Example of SIPLACE X4 S
NC
NC
CPP
CPP
NC
NC
PA1
PA2
CPP
COT
CPP
PA1 Placement area 1
PA2 Placement area 2
OP Operator panel
CPP SIPLACE MultiStar
NC Nozzle changer
NC2 Nozzle changer "row 2"
CAM Stationary cameras
BZ Buffer zone
COT Changeover table
IN Input area - conveyor
OUT Output area - conveyor
OP
OP
BZ
PLEASE NOTE: For all possible head configurations please refer to section Machine performance from page 15.
COT
COT
COT
IN
OUT
OUT
BZ
IN
CAMCAM
NC2
NC2
14
Modular machine concept
Example of SIPLACE X4i S
NC
NC
C&P20 P
C&P20 P
NC
NC
PA1
PA2
C&P20 P
COT In
C&P20 P
PA1 Placement area 1
PA2 Placement area 2
OP Operator panel
C&P20 P SIPLACE SpeedStar
NC Nozzle changer
BZ Buffer zone
COT In Changeover table at the inner
position
IN Input area - conveyor
OUT Output area - conveyor
OP
OP
BZ
PLEASE NOTE: For all possible head configurations please refer to section Machine performance from page 15.
COT In
COT In
COT In
IN
OUT
OUT
BZ
IN
15
Machine performance
Placement head types SIPLACE SpeedStar (C&P20 P)
SIPLACE MultiStar (CPP)
SIPLACE TwinStar (TH)
Placement performance
The placement performance is influenced by the different head combinations and head positions, plus the con-
veyor configurations. Individual options and customized applications also influence the placement performance.
On request, SIPLACE can calculate the actual performance of your product on your machine configuration.
IPC value [components/h]
According to the vendor-neutral conditions of the IPC 9850 standard published by the Association of Connect-
ing Electronics Industries.
SIPLACE benchmark value [components/h]
The SIPLACE benchmark value is measured during the machine acceptance tests. It corresponds to the condi-
tions set out in the SIPLACE scope of service and supply.
Theoretical maximum output value [components/h]
The theoretical maximum output value is calculated from the most favorable conditions for each machine type
and setting, and corresponds to the theoretical conditions normally used in the industry.
SIPLACE X2 S
See the note above for definition of placement performance values.
Machine Placement area 1 Placement area 2 IPC value Benchmark
value
Theoretical
value
X2 S-A C&P20 P C&P20 P 52,000 62,500 85,250
C&P20 P CPP_L 45,500 53,750 73,300
C&P20 P CPP_H 43,000 50,750 69,220
CPP_L CPP_L 37,400 45,000 61,600
CPP_H CPP_H 33,500 39,000 55,500
CPP_L CPP_H 35,450 42,000 57,900
X2 S-B C&P20 P TH 30,800 36,250 49,450
CPP_L TH 24,000 27,500 37,450
CPP_H TH 20,600 24,500 32,900
X2 S-C TH TH 9,000 10,000 13,000
CPP_H = Multistar CPP in high assembly position
CPP_L = Multistar CPP in low assembly position
