36 Component feeding Alternative SIPLACE feeder modules Technical data Linear vibratory feeder , type 3 Packaging style track number and width of tracks S tick magazines X component trolley a 3 x 9.5 mm 2 x 15 mm 1 x…
35
Component feeding
X tape feeder modules
SIPLACE X tape feeder
modules are intelligent tape
feeder modules for flexible
production environments,
which simplify upgrading and
conversion tasks consider-
ably. All SIPLACE X feeder
modules support tape splic-
ing as a standard, which pre-
vents machine stoppages
when refilling.
The benefits at a glance:
Conversion-friendly
• The SIPLACE X tape
feeder modules are
designed as single-track
feeder modules. This min-
imizes any restrictions
during conversion.
• Omega profiles on the
tape feeder module and
table facilitate safe and
reliable upgrading and
conversion of tape feeder
modules during ongoing
production.
Robust
• Brushless motors extend
the service life of the X
tape feeder modules.
Intelligent
• A unique tape feeder mod-
ule ID ensures a precise
assignment of the compo-
nent to the tape feeder
module. This makes reli-
able setup verification
very simple.
• Component pitch, feeder
speed and other functions
are automatically set
when the setup program is
downloaded.
High feeding accuracy
• Closed loop control path
measurement ensures
highly accurate compo-
nent feeding, even for
03015 placements.
Operator-friendly
• Contactless data and
power transmission make
it easier to attach/remove
the tape feeder modules
• A menu-controlled LCD
display supports the user
with current information.

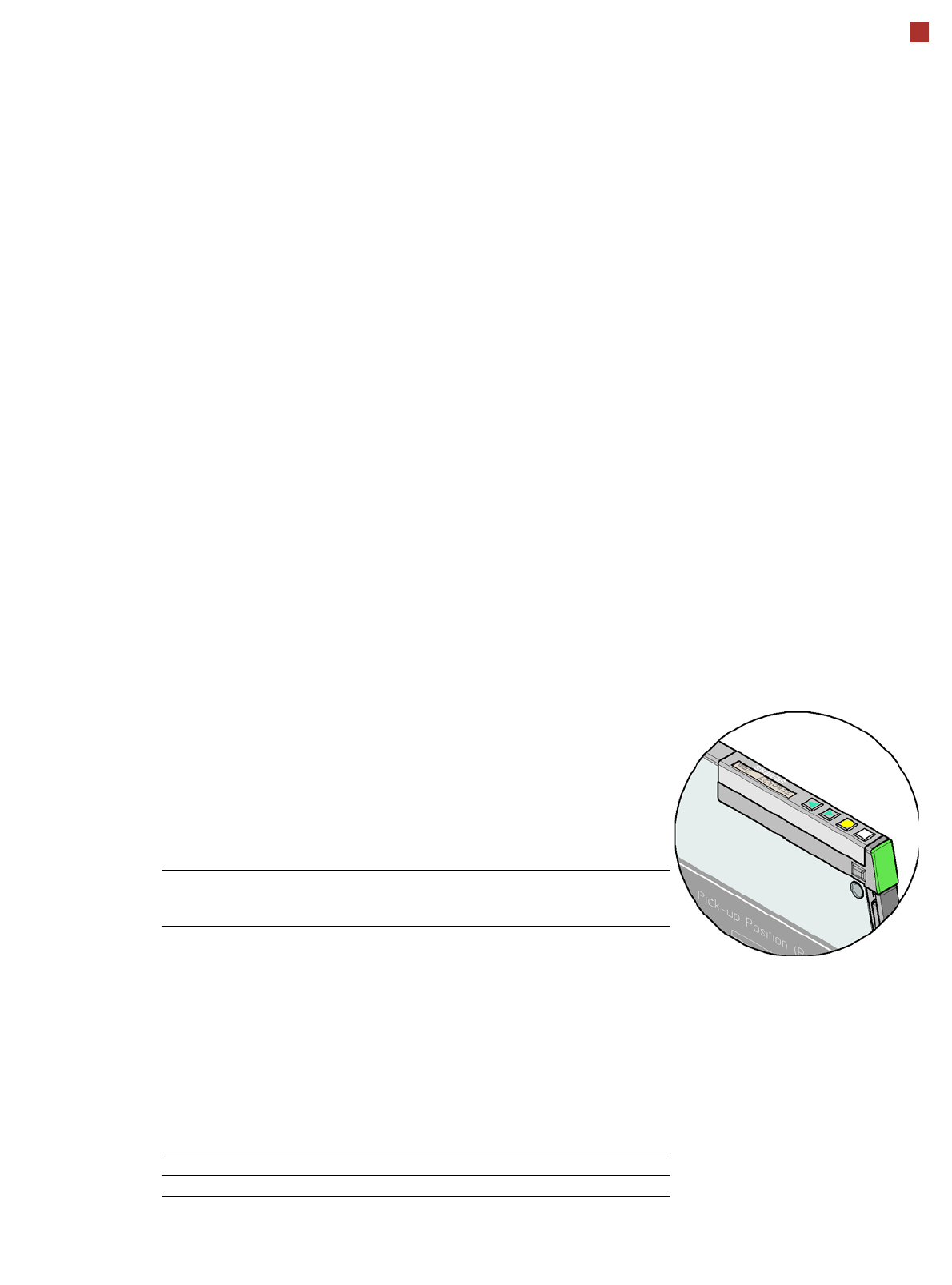

• A multicolor status display
signals the operating sta-
tuses of the X tape feeder
module:
- Green: "Ready
for operation/in
current setup"
- Orange: "Com-
ponent runs emp-
ty"
- Red: "Malfunc-
tion"
- LED off: "Tape
feeder module is
not in current set-
up and can be
torn down"
Technical data
Tape feeder
module
L x H
[mm]
Width
[mm]
Loca-
tion
Transport
increment
[mm]
Max. tape
height
[mm]
4 mm X 587x200 10,8 1 1 1,1
Smart Feeder 8 mm X 587x200 10,8 1 1/2/4/8 3,5
Smart Feeder 2x8 mm X 587x200 22,9 2 1/2/4/8 3,5
Smart Feeder 12 mm X 587x200 22,6 2 4 - 16
a
16
Smart Feeder 16 mm X 587x200 22,6 2 4 - 20
a
16
24 mm X 587x200 34,4 3 4 - 32
a
25
32 mm X 587x200 46,2 4 4 - 40
a
25
44 mm X 587x200 58,0 5 4 - 52
a
25
56 mm X 587x200 69,8 6 4 - 64
a
25
72 mm X 587x200 81,6 7 4 - 80
a
25
88 mm X 587x200 105,2 9 4 - 96
a
25
Tape reels 178 to 483 mm in diameter (7“ - 19“)
Changeover time 8 s
a) In 4mm steps
36
Component feeding
Alternative SIPLACE feeder modules
Technical data
Linear vibratory feeder,
type 3
Packaging style
track number and width of
tracks
Stick magazines
X component trolley
a
3 x 9.5 mm
2 x 15 mm
1 x 30 mm
Occupies 3 locations of an
8 mm X feeder module
Linear Dipping Unit
(LDU X)
b
for X component trolley
Occupies 9 locations of an
8 mm X feeder module
SIPLACE Glue Feeder Occupies 5 locations of an
8 mm X feeder module,
max. 1 per head
a) With X adapter
b) With restrictions
Description
Linear vibratory feeders pro-
cess components in stick
magazines. These can be
easily configured with the X
adapter for use with the X
component trolley. They can
be refilled without stopping
the machine. The X adapter
also allows you to set up the
label presenter and the
reject conveyor on the X
component trolley. The LDU
X is suitable for dip fluxing of
flip chips, CSP (Chip Scale/
Size Packages) and for coat-
ing flip chip bumps with iso-
tropic conductive adhesive.
The SIPLACE Glue Feeder
allows you to position dots of
adhesive on a component,
before it is placed.
Reject conveyor
with X adapter
Glue Feeder
Linear vibratory feeder, type 3
with X adapter
Linear Dipping Unit
(LDU X)
Label presenter with X adapter
37
Component feeding
Tray holders
Technical data for waffle pack tray SIPLACE X
Dimensions LxWxH 429 x 376 x 200 mm³
Locations occupied on the
SIPLACE X component trolley
32
Positioning options on X-Series
placement machines
Locations 2 and 4
Placement head range TwinStar, MultiStar
Max. waffle pack tray height
including components
MultiStar
TwinStar
16 mm
30 mm
Tray holder SIPLACE X
