37 Component feeding Tray holders Technical data for waffle pack tray SIPLACE X Dimensions LxWxH 429 x 376 x 200 mm³ Locations occupied on the SIPLACE X component trolley 32 Positioning options on X-Series placement mach…
36
Component feeding
Alternative SIPLACE feeder modules
Technical data
Linear vibratory feeder,
type 3
Packaging style
track number and width of
tracks
Stick magazines
X component trolley
a
3 x 9.5 mm
2 x 15 mm
1 x 30 mm
Occupies 3 locations of an
8 mm X feeder module
Linear Dipping Unit
(LDU X)
b
for X component trolley
Occupies 9 locations of an
8 mm X feeder module
SIPLACE Glue Feeder Occupies 5 locations of an
8 mm X feeder module,
max. 1 per head
a) With X adapter
b) With restrictions
Description
Linear vibratory feeders pro-
cess components in stick
magazines. These can be
easily configured with the X
adapter for use with the X
component trolley. They can
be refilled without stopping
the machine. The X adapter
also allows you to set up the
label presenter and the
reject conveyor on the X
component trolley. The LDU
X is suitable for dip fluxing of
flip chips, CSP (Chip Scale/
Size Packages) and for coat-
ing flip chip bumps with iso-
tropic conductive adhesive.
The SIPLACE Glue Feeder
allows you to position dots of
adhesive on a component,
before it is placed.

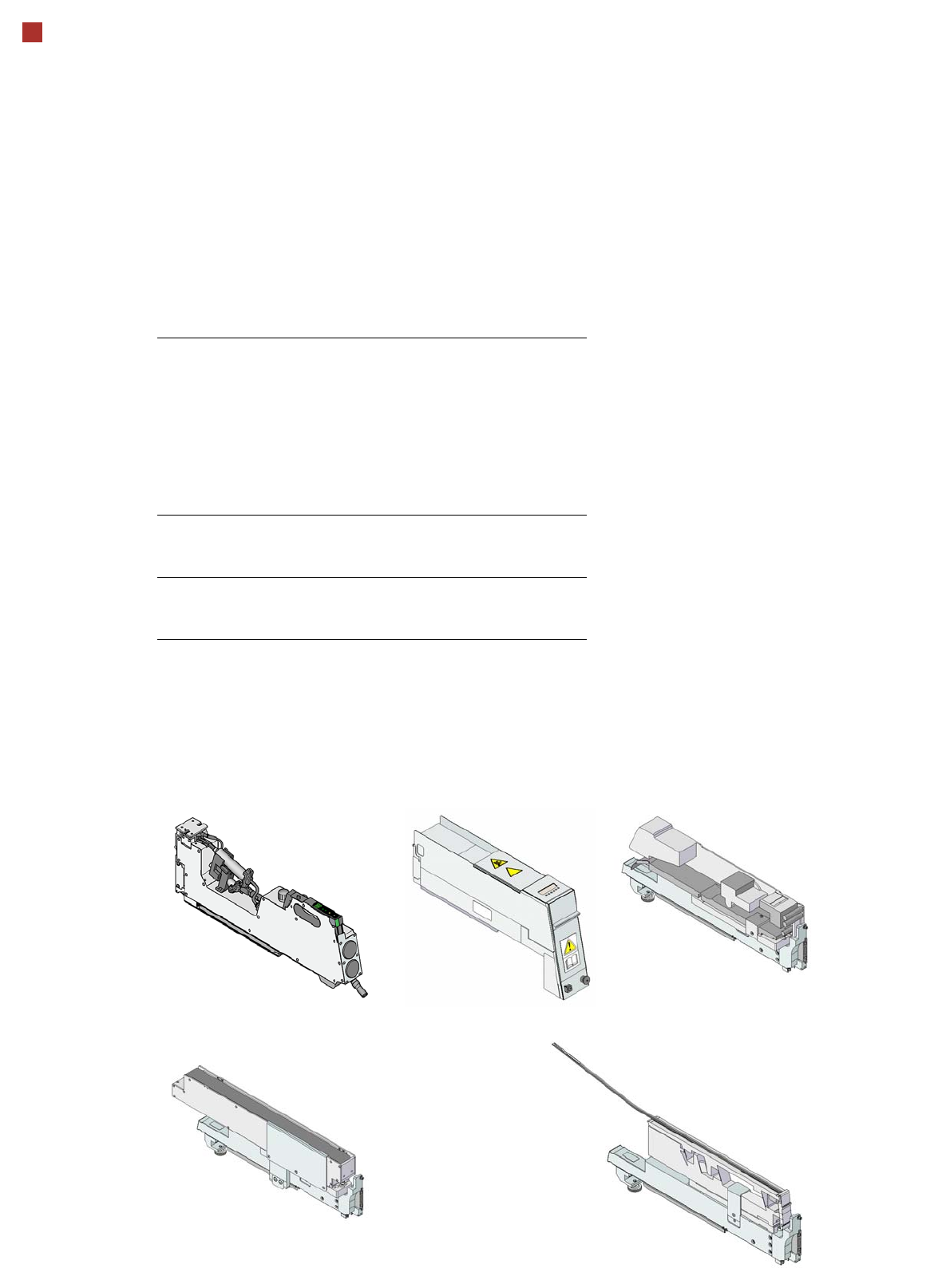

Reject conveyor
with X adapter
Glue Feeder
Linear vibratory feeder, type 3
with X adapter
Linear Dipping Unit
(LDU X)
Label presenter with X adapter
37
Component feeding
Tray holders
Technical data for waffle pack tray SIPLACE X
Dimensions LxWxH 429 x 376 x 200 mm³
Locations occupied on the
SIPLACE X component trolley
32
Positioning options on X-Series
placement machines
Locations 2 and 4
Placement head range TwinStar, MultiStar
Max. waffle pack tray height
including components
MultiStar
TwinStar
16 mm
30 mm
Tray holder SIPLACE X
38
Component feeding
Matrix Tray Changer (MTC)
If you need to provide com-
ponents in multiple waffle
pack tray for the placement
process, we recommend
using an automatic maga-
zine changeover with the
help of an Matrix Tray
Changer (MTC).
In SIPLACE X2 S / X3 S /
X4 S machines, an MTC can
be docked onto location 2 in
place of the component
trolley. The service flap in
the machine protection of
the SIPLACE X2 S / X3 S /
X4 S placement machine
provides access to the front
section of the feed axis.
The MTC setup is coordi-
nated to the exact placement
sequence to achieve a path-
optimized and time-opti-
mized working process. Two
towers with waffle pack trays
move independently of one
another, in a vertical direc-
tion, until the required maga-
zine reaches the access area
of the feed axis. The horizon-
tal feed axis transports the
waffle pack tray from the
tower to the access area of
the placement head. The first
magazine is made available
as soon as a board is moved
into the PCB conveyor and
valid panel and setup data
has been provided.
All other magazine changes
are executed during the
placement process without
influencing the processing
time. JEDEC magazines can
be refilled without stopping
the machine. Faulty compo-
nents are placed back in the
original magazine.
Tower 2
Tower 1
MTC
