72
Technical data

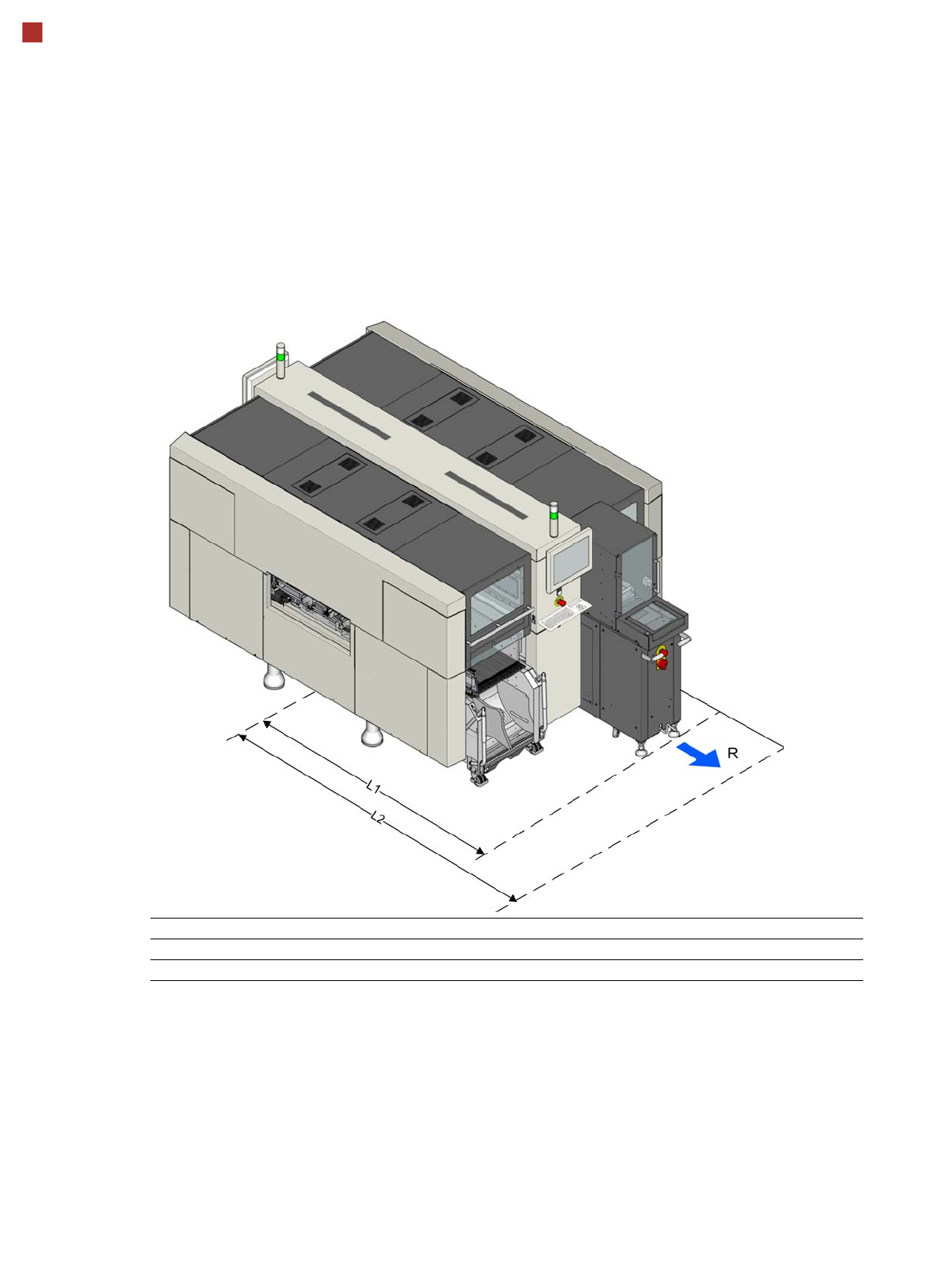

Maneuvering radii for the WPC
Maneuvering radius R 750 mm
Distance L1: Machine center to outer edge of WPC (handles) 2100 mm
Distance L2: Machine center to wall 2850 mm
73
Technical data

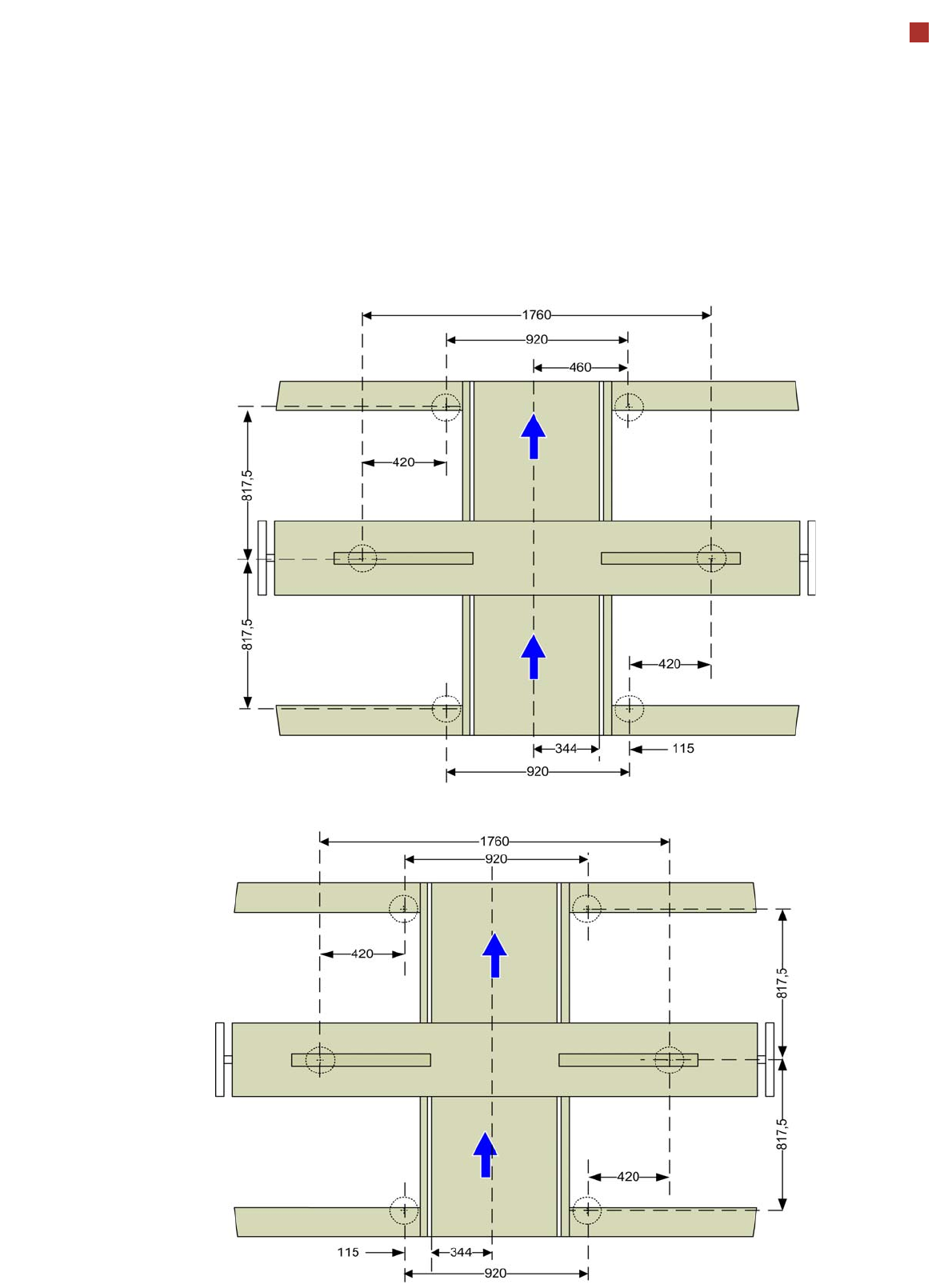

Spacing distances for single conveyor
Fixed conveyor side at maxi-
mum right position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 29.
All dimensions in millimeters.
Fixed conveyor side at maximum
left position
a
.
74
Technical data
Spacing distances for the flexible dual conveyor
Fixed conveyor side at maxi-
mum right position
a
.
Fixed conveyor side at maxi-
mum left position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 29.
All dimensions in millimeters.
