DT30 / DT35 Frontal and Rearwar d Gaskets for DT530 Gasket Replacement 0 0 3 3 4 97- 0 9 10 2 4 INSTRUCTION MANUAL 2 1 Heating Element Gua rd Be c aref ul w he n man ipu lati ng the tool. T he me tal a nd gl as s par t s…
DT30 / DT35
Frontal and Rearward
Gaskets for DT530
Gasket Replacement
0 033497- 0 910 24
INSTRUCTION MANUAL
2
1
Heating Element
Guard
Be careful when manipulating the
tool. The metal and glass parts
may be hot.

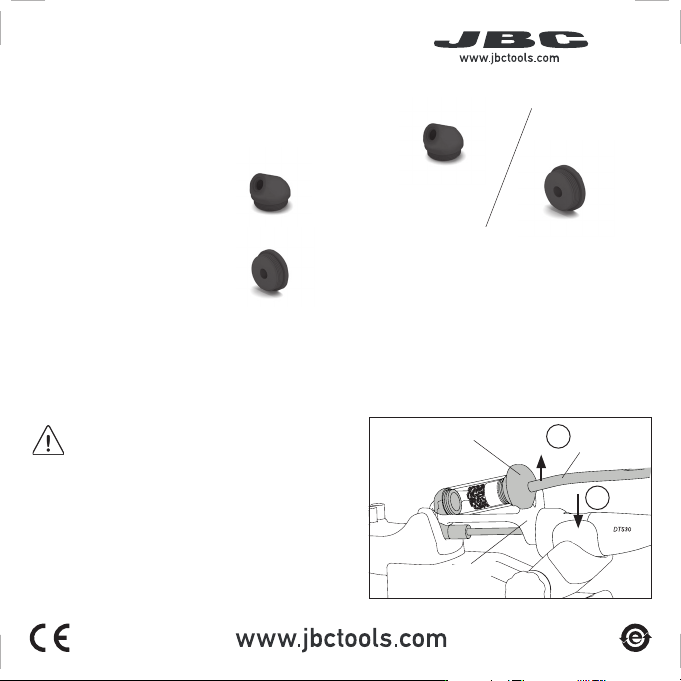

Hold down the tool with one hand onto
the stand (1) and grasp the hose at the
point where it meets the protective cover
and pull upward (2) to undock the solder-
collector from the heating element guard.
Protective
Cover
Hose
Packing List
One of the following boxes are included
depending on the purchased reference:
DT30
Frontal Gasket .......... 1 box
(includes 10 gaskets)
DT35
Rearward Gasket ..... 1 box
(includes 10 gaskets)
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm

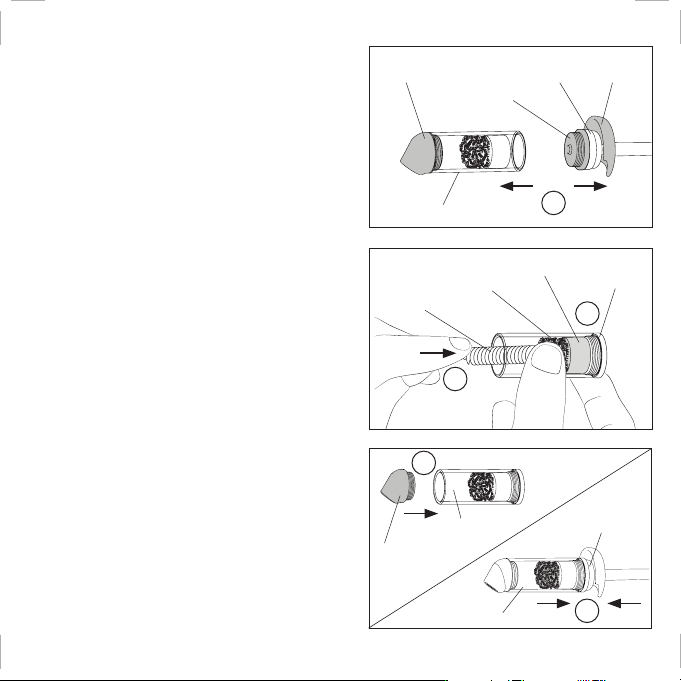

Replace the worn gaskets and fit the
rear gasket onto the solder-collector (4).
Make sure that the rearward gasket is
placed on the same side as the wool
filter and the pre-filter. Press both filters
against the rearward gasket using the
cleaning brush (5) provided with the tool.
Rearward
Gasket
Wool Filter
Cleaning
Brush
Fit the frontal gasket onto the solder-
collector (6) and reassemble the solder
collector group to the hose connector (7).
Finally reassemble the whole group to
the desoldering iron.
Detach the hose connector from the
solder-collector by gently pulling in
opposite directions (3). If the solder-
collector is too hot, use the heat-resistant
gripper provided with the tool.
Remove both gaskets by pulling out
as well.
Protective
Cover
3
Frontal
Gasket
Frontal
Gasket
4
5
6
Hose
Connector
Solder-
Collector
Rearward
Gasket
Pre-Filter
Solder-
Collector
7
Hose
Connector
Solder
Collector Group
