F eeder Station Ass’y 18 Page SAMSUNG TECHWIN Part Photo J1300067 SILENCER [AN101-01] J1301188 FITTING [KQ2L04-M5PL4-M5MSQL04-M5] J1300279 FITTING [KQ2S04-M5POC4-M5M] J1301190 ELBOW FITTING [KQ2L08-02] J1301142 EXHAUST T…
F
eeder Station Ass’y
17 Page
SAMSUNG TECHWIN
J7057139D
J7157064E
J7157065D
J9057057B
J9057059F
CONNECTOR PANEL
FS MANIFOLD-LH
FS MANIFOLD-RH
MULTI CYLINDER KIT
FEEDER BASE ASS'Y
1
1
1
2
2
J7057139D
J7157064E
J7157065D
J9057057B
J9057059F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Part List
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
F
eeder Station Ass’y
18 Page
SAMSUNG TECHWIN
Part Photo

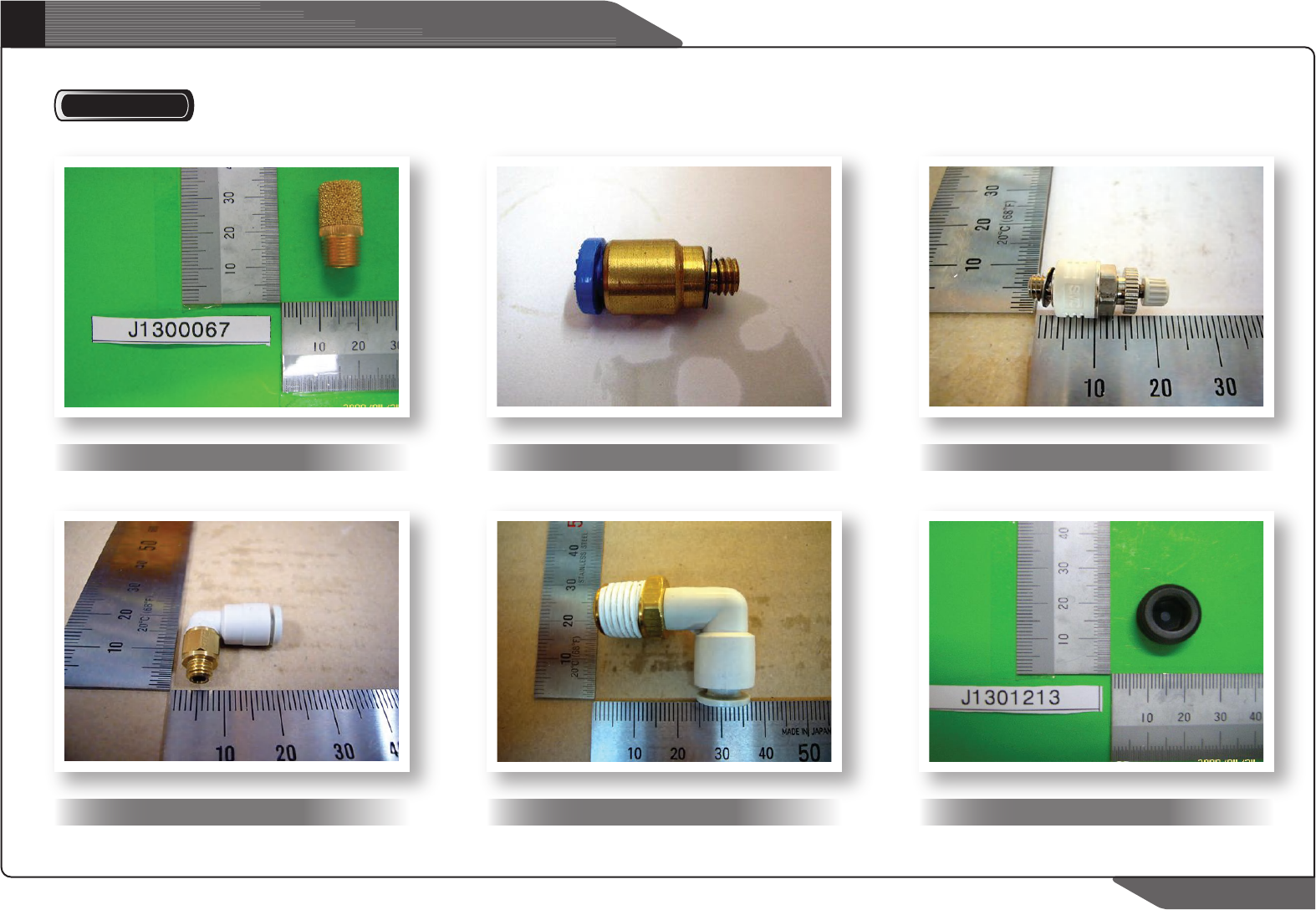

J1300067 SILENCER [AN101-01]
J1301188 FITTING [KQ2L04-M5PL4-M5MSQL04-M5]
J1300279 FITTING [KQ2S04-M5POC4-M5M]
J1301190 ELBOW FITTING [KQ2L08-02]
J1301142 EXHAUST THROTTLE VALVE
J1301213 PLUG [PT 38]
F
eeder Station Ass’y
19 Page
SAMSUNG TECHWIN
Part Photo
J1301354
THROTTLE VALVE STRAIGHT
J6701031A AIR CYLINDER [WTR2530]
J1301364 ELBOW FITTING [KQ2L08-03PL8-03]
J6711028A ELBOW FITTING [KQ2L04-01]
J3212014A PHOTO SENSOR [EE-SY671]
J6711059A STRAIGHT FITTING [KQ2H12-04]
