I T Feeder Base Ass’y 23 Page SAMSUNG TECHWIN Part Photo J9065030A CART EXT CABLE 1
I
T Feeder Base Ass’y
22 Page
SAMSUNG TECHWIN
Part Photo

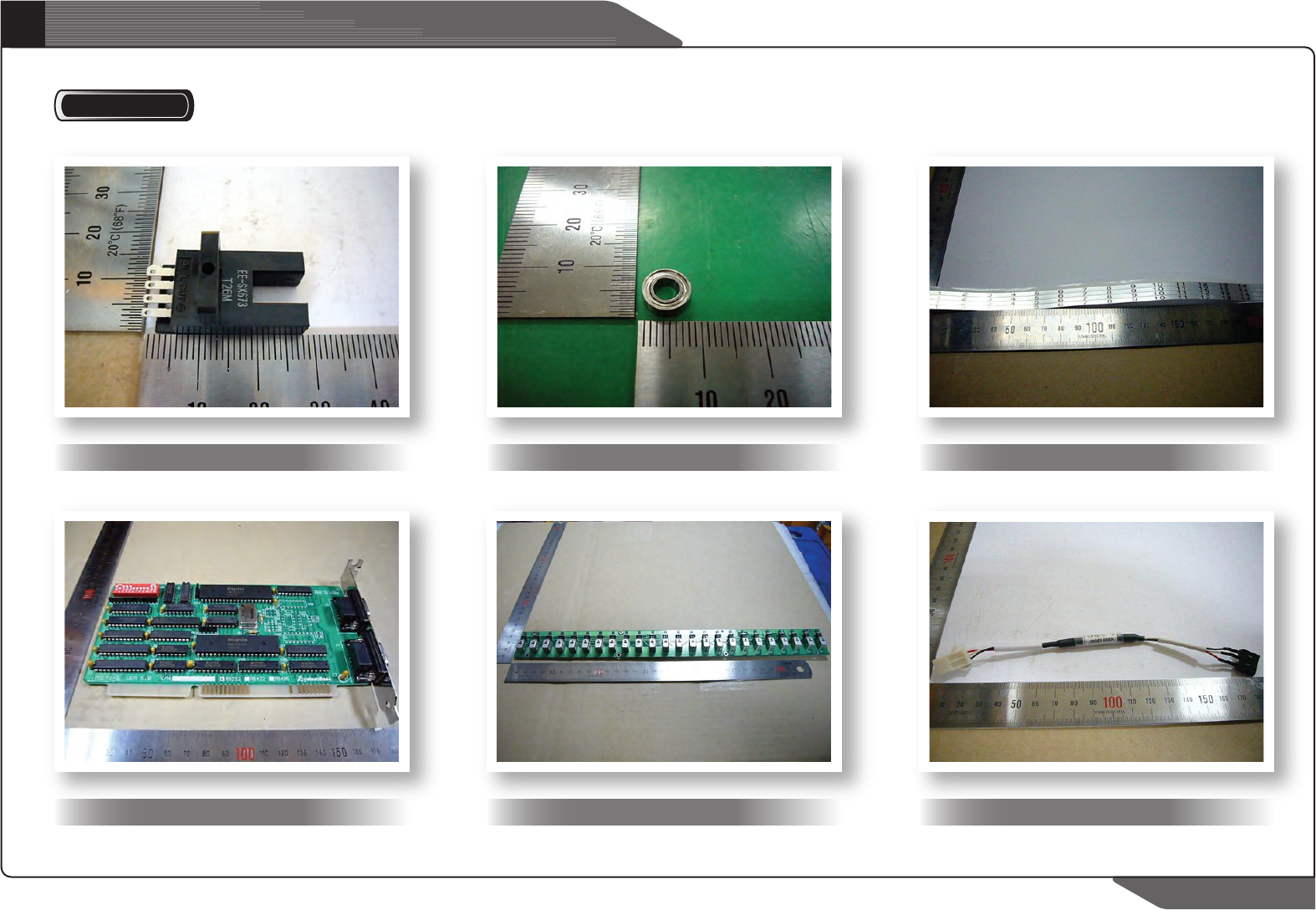

J1300883 SENSOR [EE-SX673 (OMRON)
J4809029A MULTI PORT BOARD [MULTI-2ISA RS232]
J1301164 BEARING [MR84ZZ (NSK)]
J9060086A SWITCH BOARD ASS'Y
J2101209 NUMBER PLATE (FRONT)
J9061696A
SENSOR CABLE 1 [CP40-IT-12]
I
T Feeder Base Ass’y
23 Page
SAMSUNG TECHWIN
Part Photo

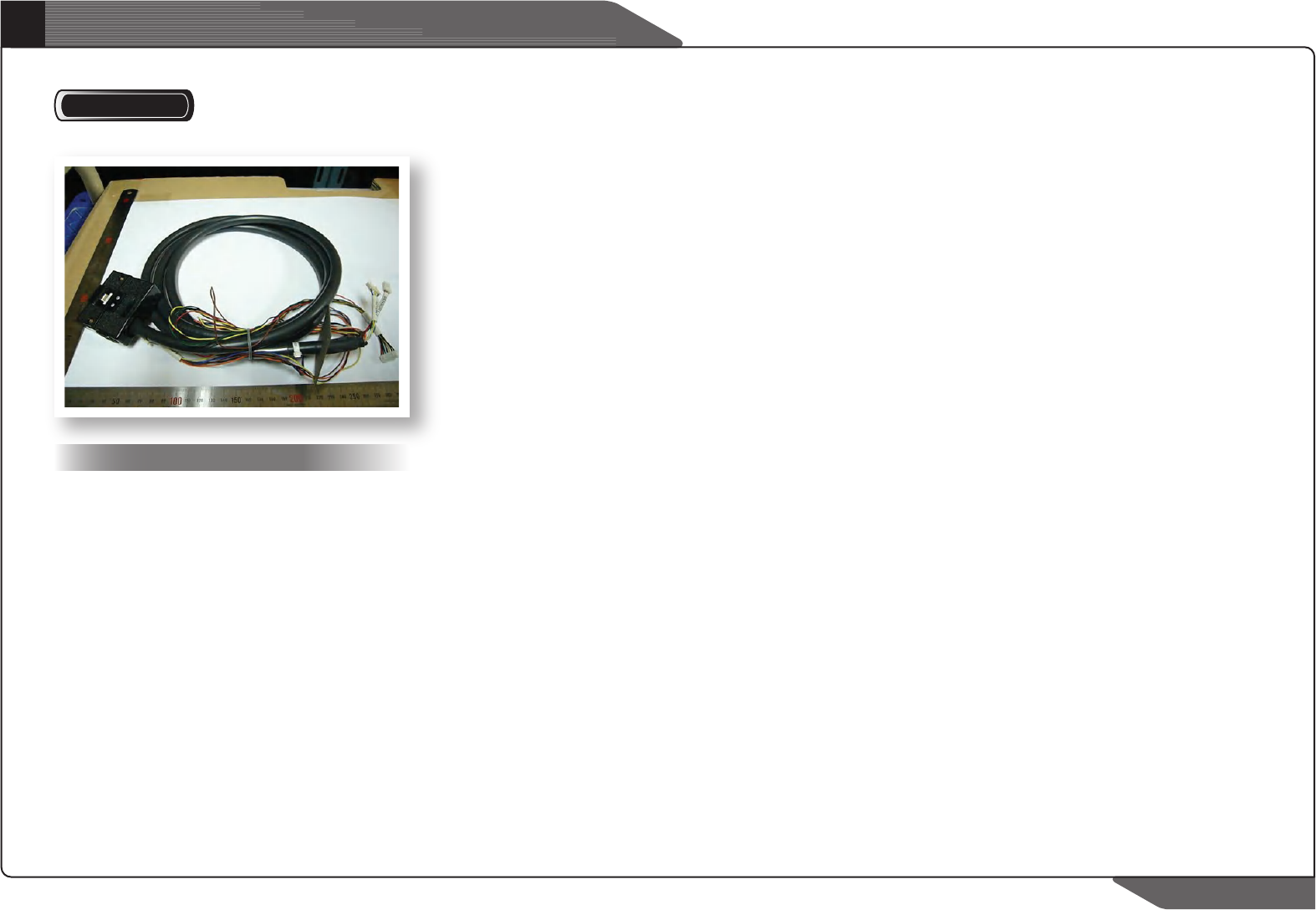

J9065030A CART EXT CABLE 1

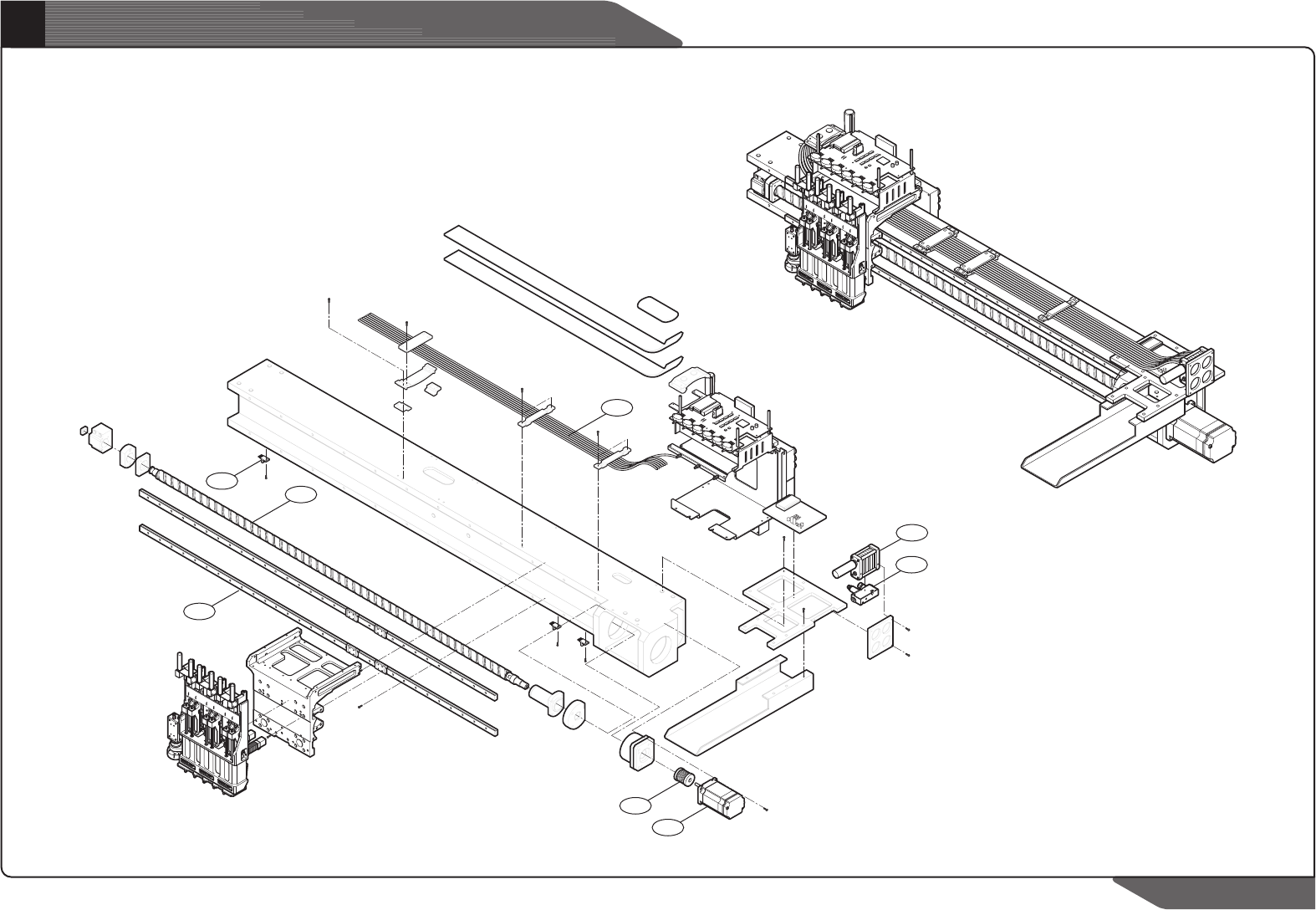

5
8
6
2
1
3
4
7
