5.8 Docking the component trolley in or out
5.8.1 Safety instructions for docking the component trolley in or out
5
Fig. 5.8 - 1 Safety instructions on the component trolley
WARNING 5
Æ Never reach into the gap between the component trolley and the placement system frame (item
1 in Fig. 5.8 - 1
).
Æ Always check that the component trolley is docked on the placement system before connecting
or disconnecting the power cable for the component trolley at the socket on the placement sys-
tem (item 2 in Fig. 5.8 - 1
).
User Manual SIPLACE F5 HM 5 Tasks on the machine
Software Version SR.408.xx 03/2006 US Edition 5.8 Docking the component trolley in or out
125
Æ NEVER connect the connecting cable for the component trolley to the socket on the placement
system and then operate the component trolley outside the machine via the compressed air
control unit (item 3 in Fig. 5.8 - 1
).
Æ Fill locations between the feeder modules with dummy feeder modules (see Section 2.5.5,
page 56).
5 Tasks on the machine User Manual SIPLACE F5 HM
5.8 Docking the component trolley in or out Software Version SR.408.xx03/2006 US Edition
126

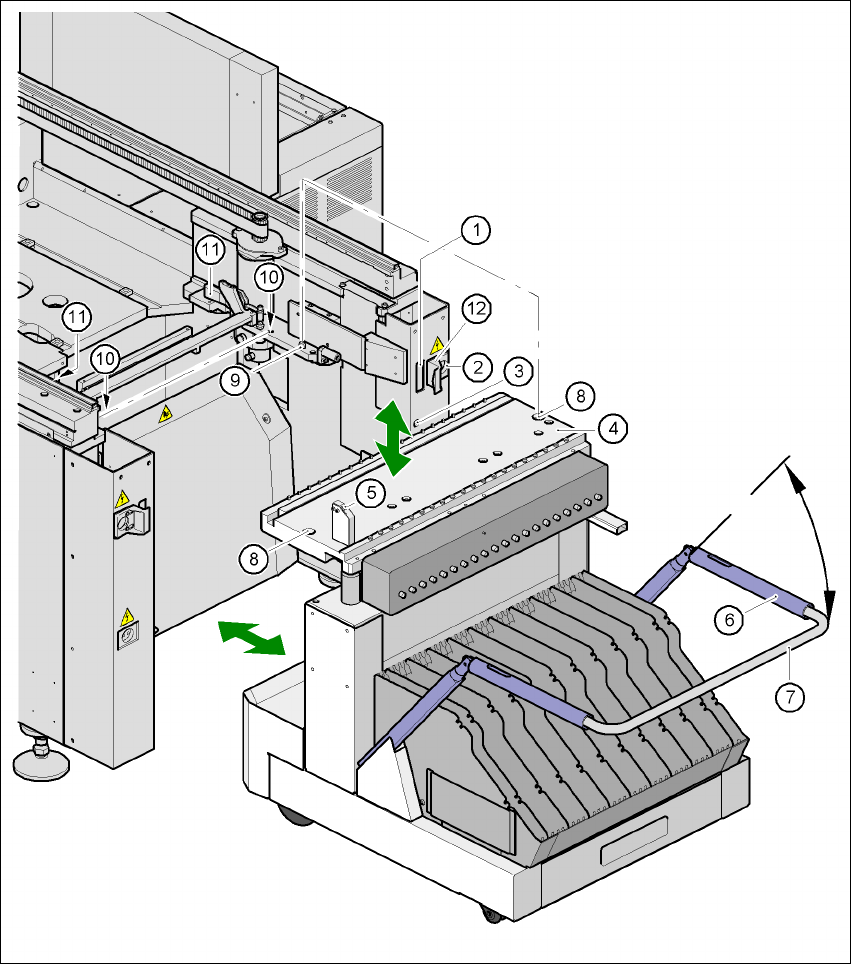

Fig. 5.8 - 2 Docking or undocking the component trolley
(1) Communication interface connector
(2) Power supply connector for the component trolley
(3) Compressed air connection
(4) Component table bed
(5) Button for raising and lowering the component table bed
(6) Actuating tube
(7) Fold-down bracket
