6 Component handling User Manual S IPLACE F5 H M 6.2 Technical dat a for the S feeder modules Software Version S R.408.xx 03/2006 US Edition 140 6.2.6 12 mm S tape feeder module for pow dered met al-based ca p acitors, E…
User Manual SIPLACE F5 HM 6 Component handling
Software Version SR.408.xx 03/2006 US Edition 6.2 Technical data for the S feeder modules
139
6.2.5 12 mm S tape feeder module for powdered metal-based capacitors, C/D
model
6

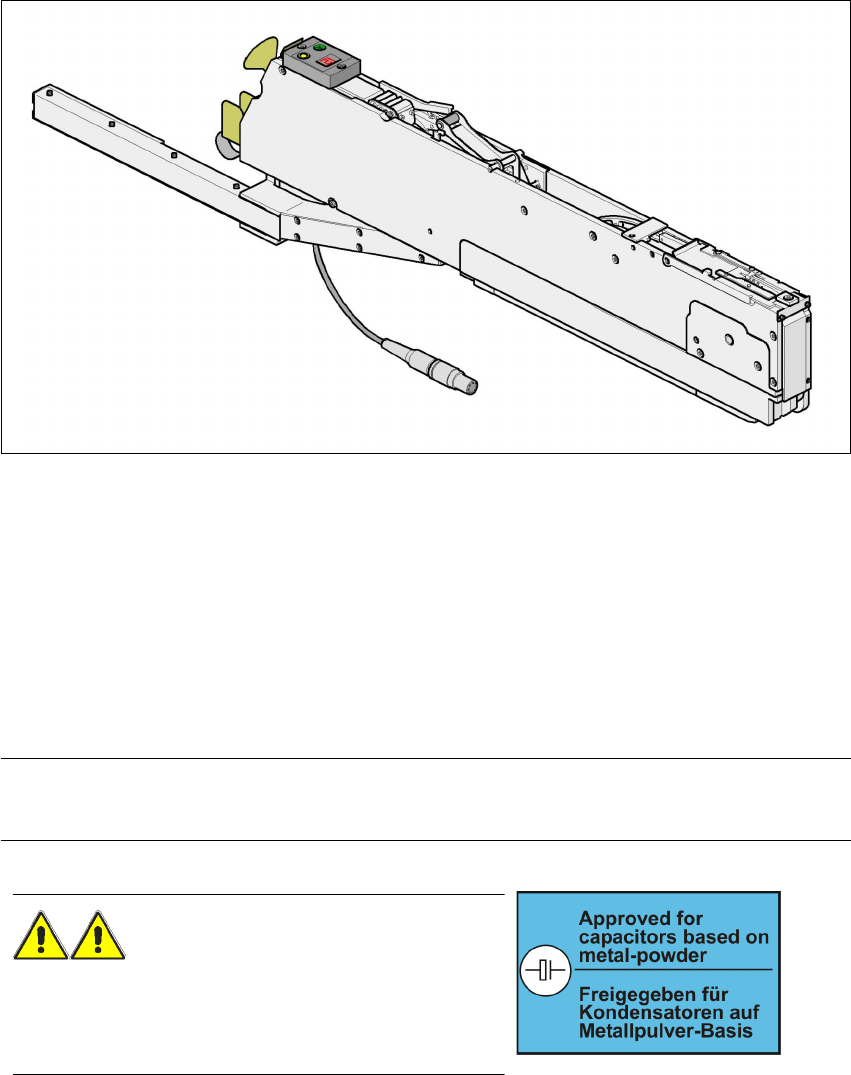

Fig. 6.2 - 5 Tape feeder module 12 mm S for powdered metal-based capacitors, C/D model
Item no. 00141118-xx 6
Width 30.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1 6
Maximum number of feeder modules 2 x 20 6
Stock of components for 7" reels approx. 4,000 6
Maximum tape height 3.6 mm 6
Conveyor increment from 4mm to 24 mm in 4 mm increments 6
PLEASE NOTE
On this feeder module, the height of the tape at the pick-up position can be adjusted.
6
WARNING
Capacitors based on metal-powder, such as
tantalum capacitors, may only be processed with feeder
modules that are identified with this sticker.
6
Sticker on feeder module (en-
larged)
6 Component handling User Manual SIPLACE F5 HM
6.2 Technical data for the S feeder modules Software Version SR.408.xx 03/2006 US Edition
140
6.2.6 12 mm S tape feeder module for powdered metal-based capacitors, E model
6
Fig. 6.2 - 6 Tape feeder module 12 mm S for powdered metal-based capacitors, E model
Item no. 00141117-xx 6
Width 30.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1 6
Maximum number of feeder modules 2 x 20 6
Stock of components for 7" reels approx. 4,000 6
Maximum tape height 3.6 mm 6
Conveyor increment from 4mm to 24 mm in 4 mm increments 6
6
WARNING
Capacitors based on metal-powder, such as
tantalum capacitors, may only be processed with feeder
modules that are identified with this sticker.
6
Sticker on feeder module (en-
larged)
User Manual SIPLACE F5 HM 6 Component handling
Software Version SR.408.xx 03/2006 US Edition 6.2 Technical data for the S feeder modules
141
6.2.7 Tape feeder module 24/32 mm S
Fig. 6.2 - 7 Tape feeder module 24/32 mm S
Item no. 00141093-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 2 x 13 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
