6 Component handling User Manual SIPLACE F5 HM
6.2 Technical data for the S feeder modules Software Version SR.408.xx 03/2006 US Edition
140
6.2.6 12 mm S tape feeder module for powdered metal-based capacitors, E model
6

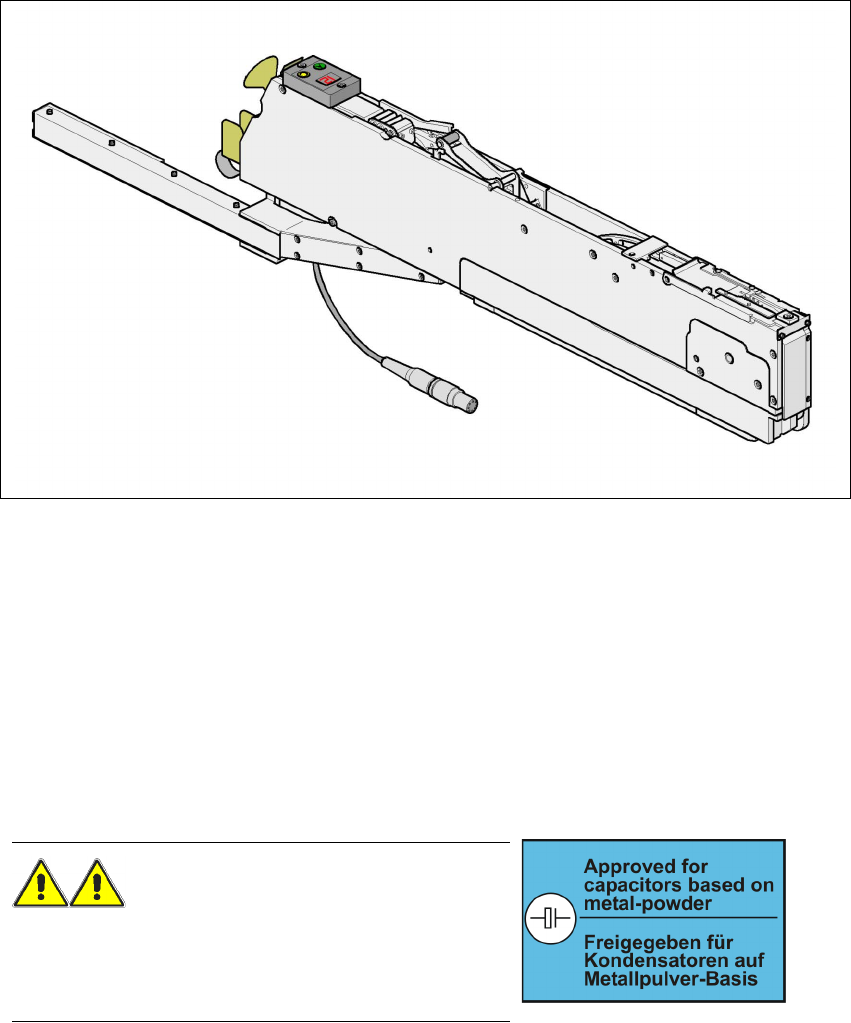

Fig. 6.2 - 6 Tape feeder module 12 mm S for powdered metal-based capacitors, E model
Item no. 00141117-xx 6
Width 30.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1 6
Maximum number of feeder modules 2 x 20 6
Stock of components for 7" reels approx. 4,000 6
Maximum tape height 3.6 mm 6
Conveyor increment from 4mm to 24 mm in 4 mm increments 6
6
WARNING
Capacitors based on metal-powder, such as
tantalum capacitors, may only be processed with feeder
modules that are identified with this sticker.
6
Sticker on feeder module (en-
larged)
User Manual SIPLACE F5 HM 6 Component handling
Software Version SR.408.xx 03/2006 US Edition 6.2 Technical data for the S feeder modules
141
6.2.7 Tape feeder module 24/32 mm S

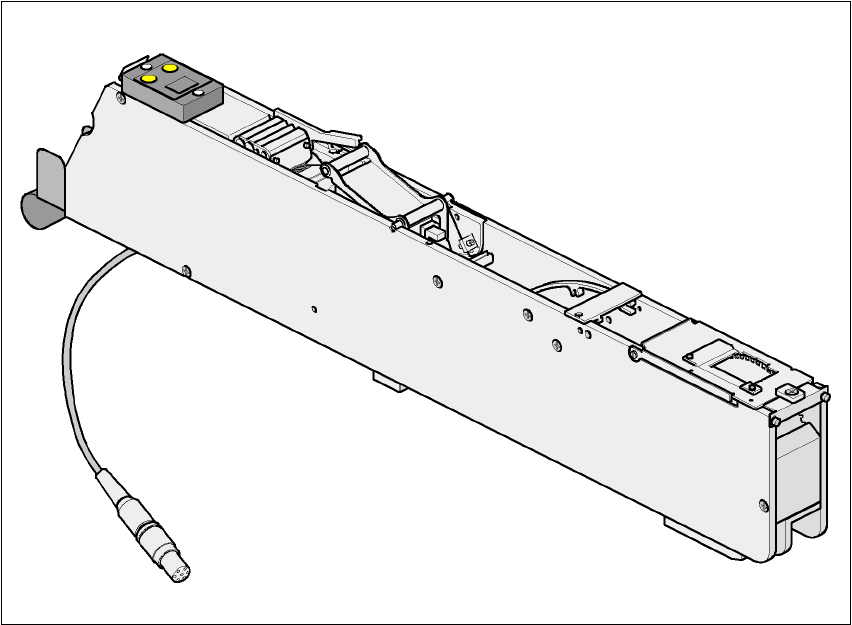

Fig. 6.2 - 7 Tape feeder module 24/32 mm S
Item no. 00141093-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 2 x 13 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
6 Component handling User Manual SIPLACE F5 HM
6.2 Technical data for the S feeder modules Software Version SR.408.xx 03/2006 US Edition
142
6.2.8 Tape feeder module 24/32 mm S DP for deep pockets

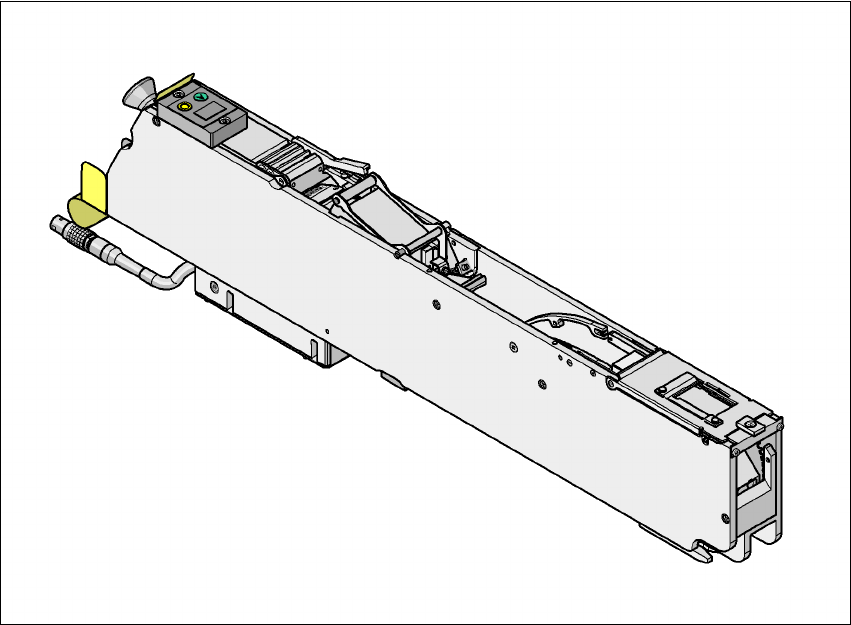

Fig. 6.2 - 8 Tape feeder module 24/32 mm S DP for deep pockets
Item no. 00141193-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 2 x 13 6
Tape height up to 25 mm 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
