User Manual SIPLACE F5 HM 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
33
2
Pos. 1 in Fig. 2.2 - 3
underneath the cover (number per placement machine: 1) 2
2
Pos. 2 in Fig. 2.2 - 3
on the servo unit Macrolon panel (number per placement machine: 1) 2
2
Warning label W207 2
2
Pos. 3 (W207, item no. 03009346-01) in Fig. 2.2 - 3 on the servo unit Macrolon panel (number per
placement machine: 1) 2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
d
2 Operational safety User Manual SIPLACE F5 HM
2.2 Warning labels Software Version SR.408.xx 03/2006 US Edition
34

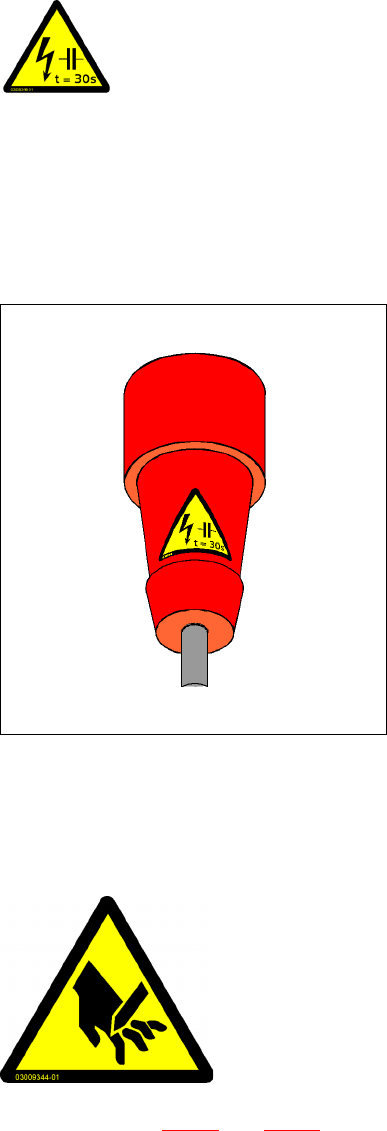

Warning label W211 on the CEKON plug 2
2
Warning label W 211 (number per placement system: 1)
2
Fig. 2.2 - 4 Warning label W211 on the CEKON plug
Warning label W211, item no. 03009351-01
Warning label W205 on the tape cutter, on the used tape channel and the used tape chute2
2
Item W205 in Fig. 2.2 - 5 and 2.2 - 6 (number per placement system: 8)
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious
injury. Avoid contact with power plug and/or wire ends for 30 seconds
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the
machine is switched off
User Manual SIPLACE F5 HM 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
35
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains sup-
ply and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter. 2

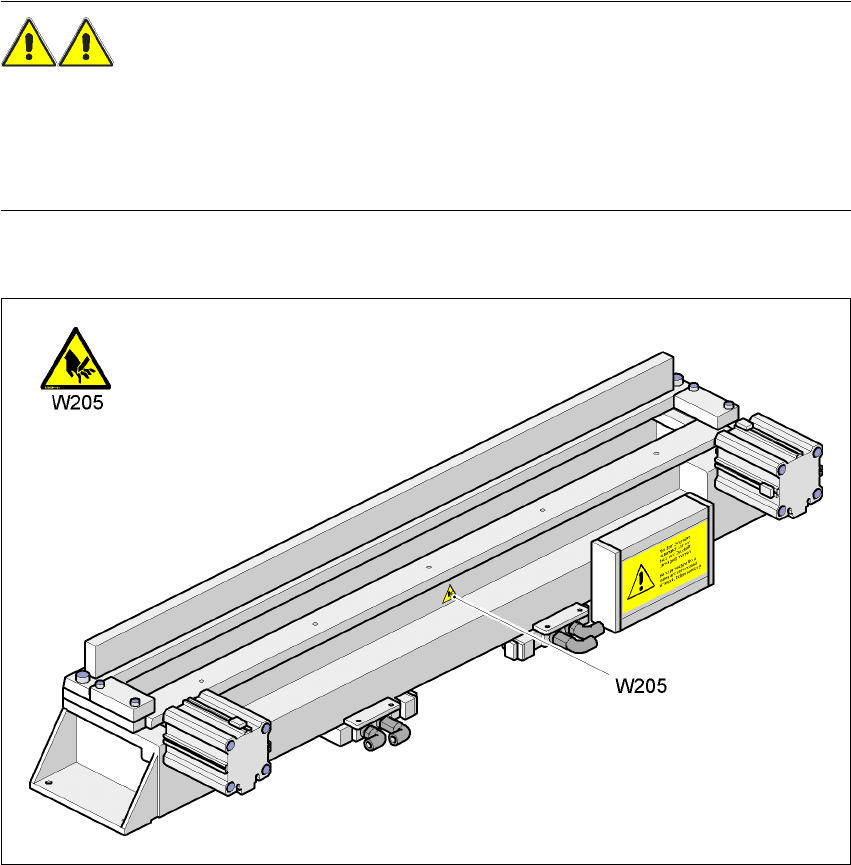

Warning label W205 on the tape cutter 2
2
Fig. 2.2 - 5 Warning label W205 on the top of the tape cutter
2
Pos. W205 part no. 03009344-01
