2 Operational safety User Manual SIP LACE F5 HM 2.2 Warning labels Software Version SR.408.xx 03/2006 US Edition 36 W arning label W205 on the used t ape channel and on the waste t ape chute 2 2 Fig. 2.2 - 6 Warning labe…
User Manual SIPLACE F5 HM 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
35
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains sup-
ply and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter. 2
Warning label W205 on the tape cutter 2
2
Fig. 2.2 - 5 Warning label W205 on the top of the tape cutter
2
Pos. W205 part no. 03009344-01
2 Operational safety User Manual SIPLACE F5 HM
2.2 Warning labels Software Version SR.408.xx 03/2006 US Edition
36

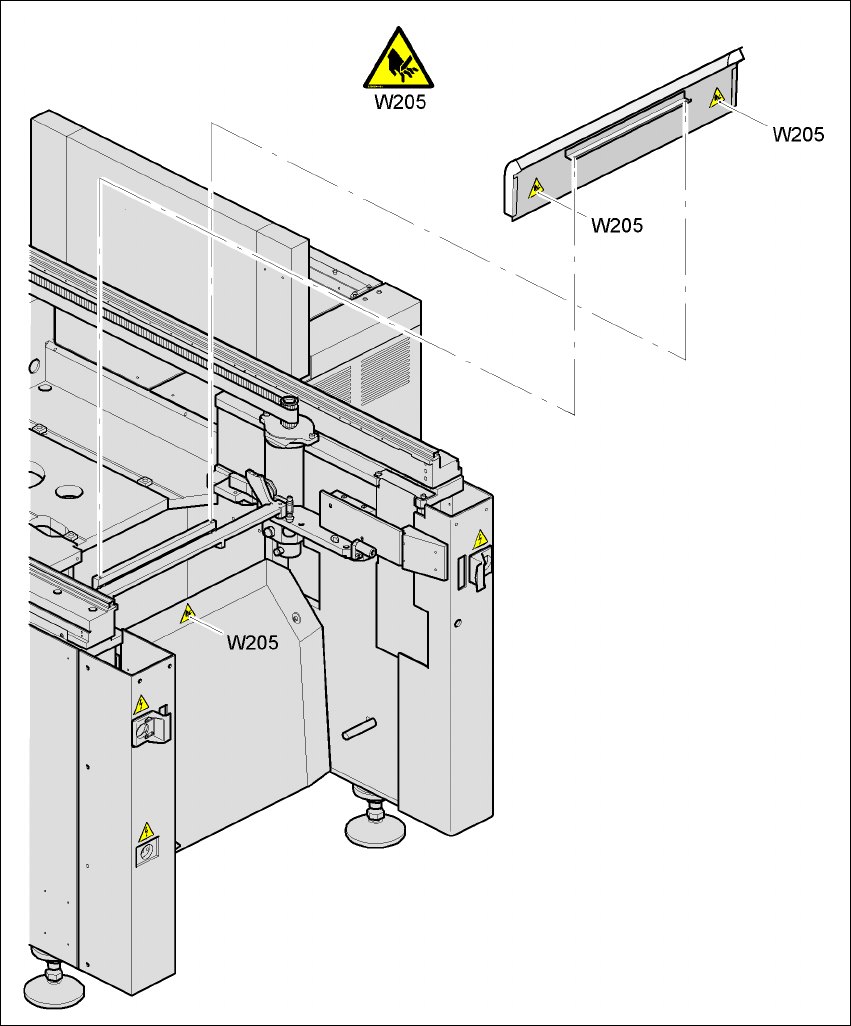

Warning label W205 on the used tape channel and on the waste tape chute 2
2
Fig. 2.2 - 6 Warning label W205 on the used tape channel and on the waste tape chute
2
Pos. W205 part no. 03009344-01
User Manual SIPLACE F5 HM 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
37
2.2.2 Additional warning labels for the NAFTA region
2
Fig. 2.2 - 7 Warning labels on the basic machine - NAFTA region
2
2
Warning label W209 on the EMERGENCY STOP buttons 2
2
Pos. 1 (W209, item no. 03009349-01) in Fig. 2.2 - 7(number per placement machine: 2) 2
a
