2.2.2 Additional warning labels for the NAFTA region
2

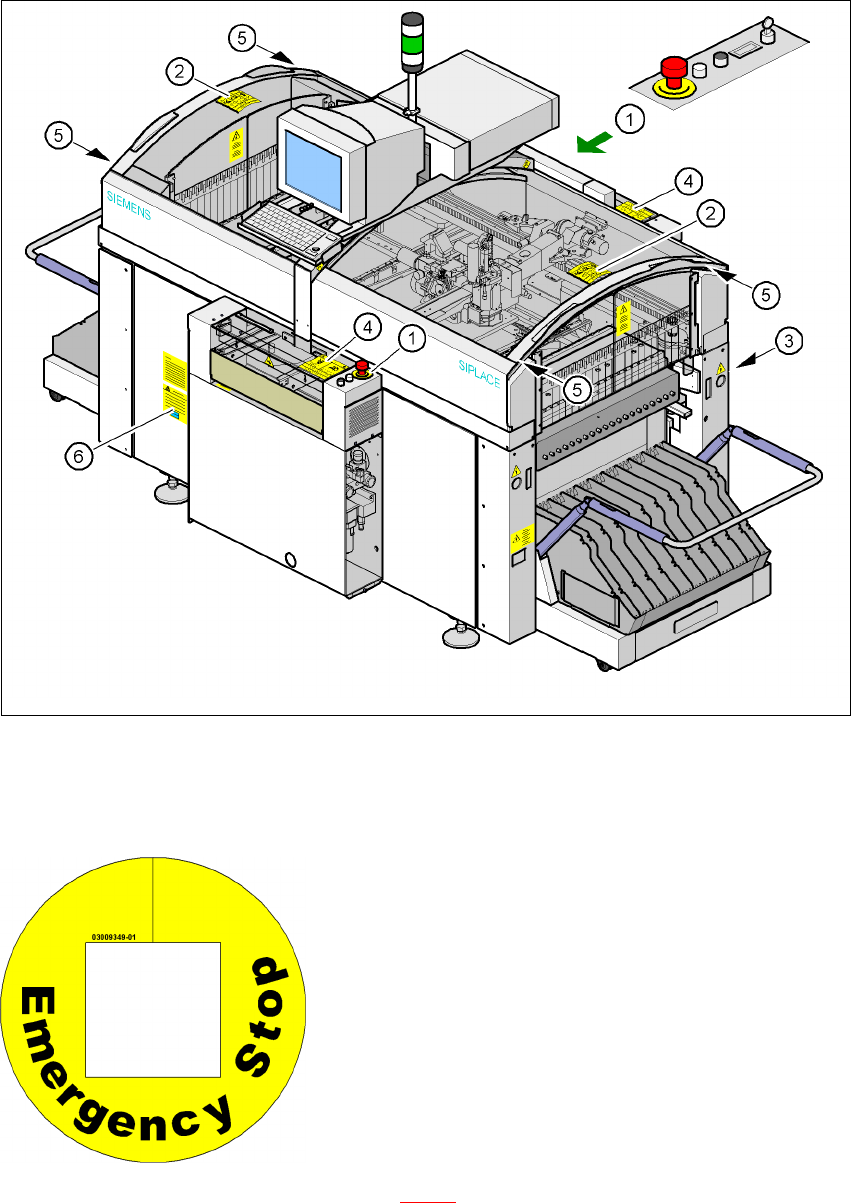

Fig. 2.2 - 7 Warning labels on the basic machine - NAFTA region
2
2
Warning label W209 on the EMERGENCY STOP buttons 2
2
Pos. 1 (W209, item no. 03009349-01) in Fig. 2.2 - 7(number per placement machine: 2) 2
a
2 Operational safety User Manual SIPLACE F5 HM
2.2 Warning labels Software Version SR.408.xx 03/2006 US Edition
38
2
Pos. 2 in Fig. 2.2 - 7 2
2
Pos. 3 in Fig. 2.2 - 7
on the terminal blocks 2
2
Pos. 4 in Fig. 2.2 - 7
2
Warning
High voltage can cause
severe
injury or death
Service in this area must be performed by
authorized personell only
Switch off main electrical and pneumatic
switches, remove from main power
Operating machinery
can
crush and mutilate limbs
User Manual SIPLACE F5 HM 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
39
2
2
2
2
2
2
2
2
2
2
2
Pos. 5 in Fig. 2.2 - 7
2
Pos. 6 in Fig. 2.2 - 7
, page 29 for the warning labels on the basic machine
Use only approved feeders, labeled
as shown below, when feeding
capacitors based on metal-powder
(e.g. tantalum).
Fire Hazard
Can cause death, serious injury
or property damage
Approved for
capacitors based on
metal-powder
Freigegeben für
Kondensatoren auf
Metallpulver-Basis
WARNING
