2 Operational safety User Manual SIPLACE F5 HM
2.5 Safety equipment Software Version SR.408.xx 03/2006 US Edition
54
2
2.5.4 Safety circuits
The SIPLACE automatic placement system has a safety circuit which is monitored by the protec-
tive contactor combination K1. The protective contactor combination is contained in the power
supply unit (see item 14 in Fig. 2.5 - 4
).
WARNING
Automatic placement systems from the SIPLACE family are powered with 3 x 400 VAC (3 x 208
VAC for the U.S.A. version) ± 5 %, 50/60 Hz main power voltage.
This means that some parts of the system carry potentially lethal voltages - even when switched
off at the main power switch. Death, serious injury or considerable damage may result if these au-
tomatic placement systems are handled incorrectly.
Always follow the applicable accident prevention and DIN regulations (particularly EN 60204,
part 1) and the applicable regulations in your own country.
The guard over the power supply must ONLY be opened by appropriately qualified and trained
personnel. 2
Protective contactor combination K1 monitors the following circuits:
EMERGENCY STOP circuit, safety circuits for the component trolleys or waffle-pack changer,
protective cover switches and the enable software signal
K1 is triggered if any of these functions fail. The main power voltage to the heavy current trans-
former that supplies the gantry axis motors, the star motor, the lifting tables and the used tape
cutter will be interrupted. The DP or Z axes for the placement heads are still supplied with
30VDC. The next diagram illustrates the various statuses of K1 and their effects on the axes and
the PCB conveyor components.
Status Display on screen Action required
EMERGENCY
STOP button
pressed
EMERGENCY STOP
pressed ...
Machine stopped.
Release button
Release the pressed EMERGENCY
STOP button (pos. 3 or 4 in Fig. 2.5 - 4
)
Press start button Press the white Start button (pos. 2 or 5 in
Fig. 2.5 - 4
)
Protective
cover open
Close the cover Close the protective cover (item 9, 10, 11
or 12 in Fig. 2.5 - 4
)
Press start button Press the white Start button (pos. 2 or 5 in
Fig. 2.5 - 4
)
Tab. 2.5 - 1 Screen display when the EMERGENCY STOP button is pressed or the protective cover is open
User Manual SIPLACE F5 HM 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.5 Safety equipment
55
Fig. 2.5 - 5 Safety circuits
Start button pressed
No
No
Yes
No
No
Yes
Yes
No
2
Active
K1*) Yes
K2**) Yes
Voltage
Y axis 155 VDC
X axis 155 VDC
Star axis 100 VDC
DP axis 30 VDC
Z axis 30 VDC
Active
PCB conveyor Yes
Lifting table Yes
PCB clamp Yes
Width adjustment Yes
PCB stopper Yes
Used tape cutter Yes
Yes
2
Active
K1*) No
K2** Yes
Voltage
Y axis 0 VDC
X axis 0 VDC
Star axis 0 VDC
DP axis 30 VDC
Z axis 30 VDC
Active
PCB conveyor Yes
Lifting table No
PCB clamp No
Width adjustment Yes
PCB stopper No
Used tape cutter No
2
Active
K1*) No
K2**) No
Voltage
Y axis 0 VDC
X axis 0 VDC
Star axis 0 VDC
DP axis 30 VDC
Z axis 30 VDC
Active
PCB conveyor No
Lifting table No
PCB clamp No
Width adjustment No
PCB stopper No
Used tape cutter No
*) K1 protective contactor combination
**) K2 contactor
Yes
Compressed air min. 0.51
MPa (5.1 bar)?
EMERGENCY STOP button
pressed?
Protective cover open ?
Component
trolley safety circuit
interrupted?
Key switch closed (position
I)?
2 Operational safety User Manual SIPLACE F5 HM
2.5 Safety equipment Software Version SR.408.xx 03/2006 US Edition
56
2.5.5 Hand guard on the component table locations
WARNING
All locations must be equipped with feeders in order to guarantee operational reliability. If there
are not enough feeders available, a hand guard ("dummy feeder") must be fitted in place of the
feeder. 2

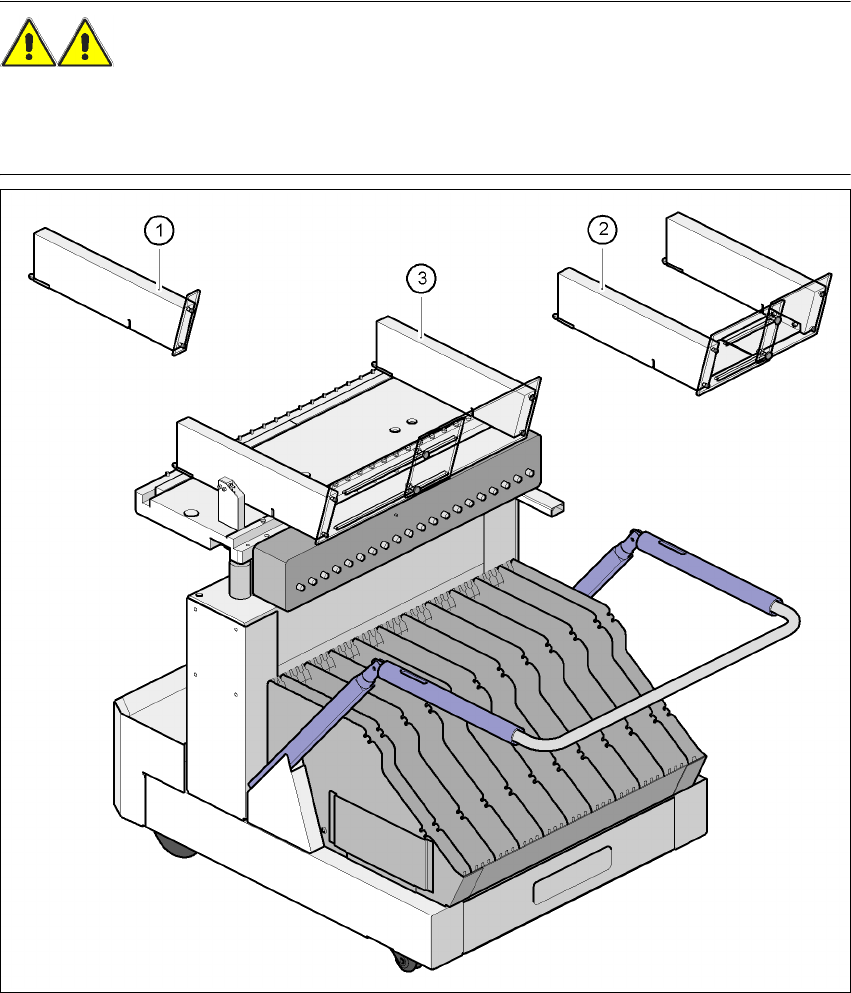

Fig. 2.5 - 6 Hand guard
(1) Hand guard for 1 location Item no. 00116961-01
(2) Hand guard for 6 to 10 locations Item no. 00116962-01
(3) Hand guard for 11 to 20 locations Item no. 00116963-01
