User Manual SIPLACE F5 HM 3 Technical data
Software Version SR.408.xx 03/2006 US Edition 3.9 Placement heads
91
3.9.5 Description of the 6-segment Collect&Place head
The functionality of the 6-segment revolver head is similar to that of the 12-segment revolver
head. With its standard vision module, the 6-segment Collect&Place head can quickly and accu-
rately place ICs with an edge length of up to 32 x 32 mm². It really comes into its own when there
is a very high proportion of ICs in the placement process. The cycle time of the 6-segment Col-
lect&Place head depends on the dimensions and number of component leads or bumps. 3
3.9.6 Technical data for the 6-segment Collect&Place head with
standard component vision module
3
Range of components 0603 to 32 x 32 mm²
Max. height 8.5 mm
Min. lead pitch 0.5 mm
Min. bump pitch 0.56 mm
Min. ball/bump diameter 0.32 mm
Min. dimensions 1.6 x 0.8 mm²
Max. dimensions 32 x 32 mm²
Max. weight 5 g
Programmable set-down force 2.4 to 5.0 N
Placement rate 8,500 comp/h
Nozzle types 8 xx, 9 xx
Angular accuracy ± 0.225° / 3 σ, ± 0.30° / 4 σ, ± 0.45° / 6 σ
Placement accuracy with standard vision
module
± 52.5 µm / 3 σ, ± 70 µm / 4 σ, ± 105 µm / 6 σ
3 Technical data User Manual SIPLACE F5 HM
3.9 Placement heads Software Version SR.408.xx 03/2006 US Edition
92
3.9.7 Structure of the Pick&Place head
3

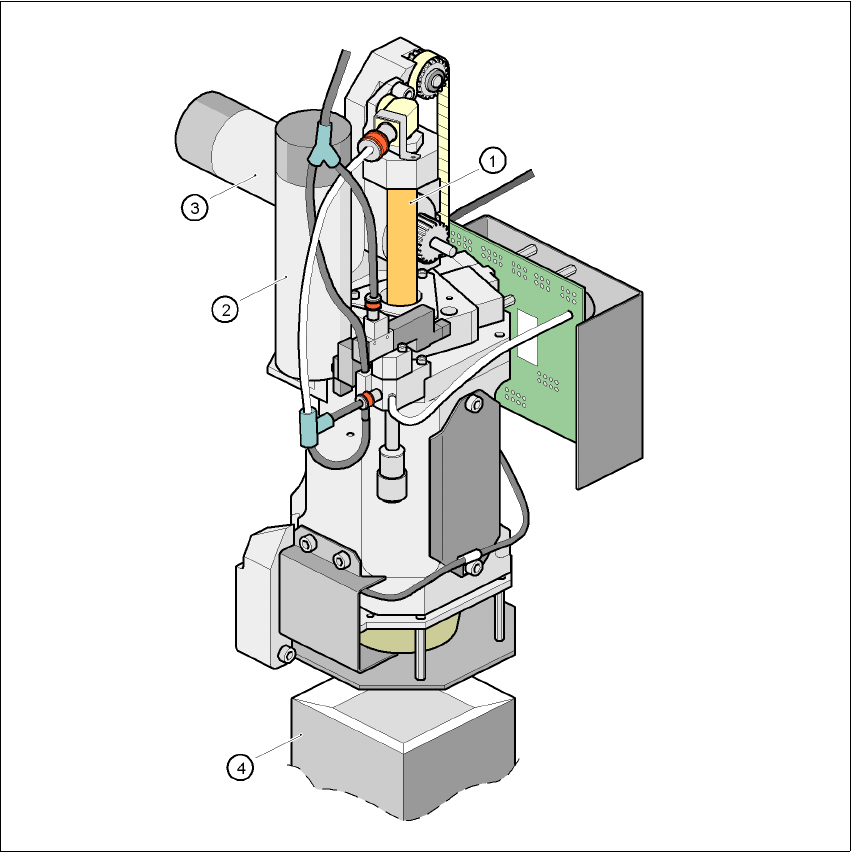

Fig. 3.9 - 3 Structure of the Pick&Place head
(1) Sleeve
(2) DR axis drive
(3) Z axis drive
(4) Fine-pitch vision module
