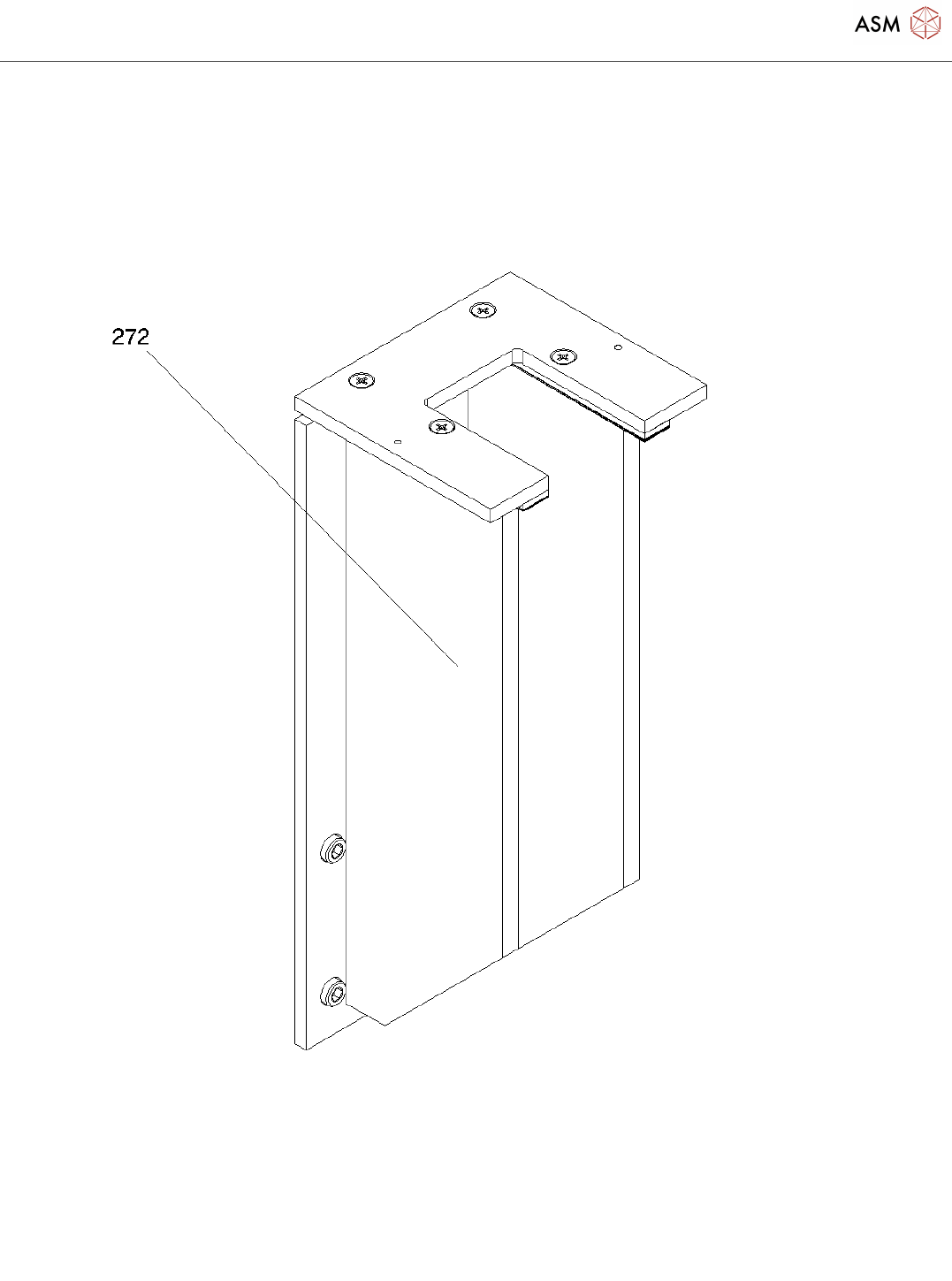

Pos. Item no. Description Part marking
03100967-01 CONFIG SPS
X4S,X4IS,X3S,X2S,X4SM,X4ISM
2 00119993-01 SMARTPINSUPPORT PIN PICKER X4
S
3 03089904-03 SPS PIN PICKER RIGHT SX4
SPEED/VARIO
4 03093114-01 BASEPLATE COMPLETE / SPS SX4
RIGHT
5 00619815-01 DIN 6325 - 1.5M5 X 6-ST
6 03090168S01 CYLINDER - FRONT PART COMPL. /
SPS
SPARE PART
7 03089379S01 CYLINDER - BACK PART COMPL. /
SPS
SPARE PART
8 03087246-01 O-RING 8,5 X 3 NBR70
9 03084323S01 LINEAR GUIDING/ SPS SPARE PART
10 03089614S02 BOARD CONTROL / SPS SPARE PART
11 03089718-01 MOUNTING BRACKET / SPS
12 03090003-01 ATTACHMENT RAIL / SPS
13 03089686-01 CARRIER FOR COUNTER CYLINDER /
SPS
14 03089678-01 CENTERING BOLT FOR TENSION
SPRING / SPS
15 03101664-01 STRAIN
RELIEF_CONNECTOR_SPIRAL
CABLE/SPS
SPARE PART
16 03086330-01 DISTRIBUTER BLOCK / SPS
17 03088119S01 BALL JOINT WITH INTERNAL TH.
KBRM-03 MH
SPARE PART
18 03088037S01 PNEUMATIC CYLINDER / SPS SPARE PART
19 03089697-01 CAM SWITSCH / SPS
20 03102480-01 HOSE HOLDER / SPS SPARE PART
21 03102482-01 COVER PLATE / SPS SPARE PART
22 03087984-01 AXLE BOLT / SPS
23 03095442-01 CONNECTING HOSE / SPS
00359177S01 HOSE 4*2,5 PUN-CM-4 (PLACEMENT
HEAD)
SPARE PART
25 03093696-01 HOSE FOR PNEUMATIKZYLINDER /
SPS
03093799-03 SPIRAL COILED TUPE 4X2,5
