Replacing Spare Parts Rear Sliding Guide 3.4.2 Fitting the Sliding Guide 14 Service Manual SIPLACE Glue Feeder ► Now lower the two snap tabs of the sliding guide into the openings provided on the underside of the gl ue f…
Replacing Spare Parts
3.4.1 Removing the Sliding Guide Rear Sliding Guide
Service Manual SIPLACE Glue Feeder 13
3.4
3.4 Rear Sliding Guide
Rear Sliding Guide
Required spare parts
Sliding guide/rear L200, item no. 03003994-xx
Required tools
▪ Phillips screwdriver
3.4.1
3.4.1 Removing the Sliding Guide
Removing the Sliding Guide
3.4.2
3.4.2 Fitting the Sliding Guide
Fitting the Sliding Guide
► Turn the glue feeder so that the underside is at the
top.

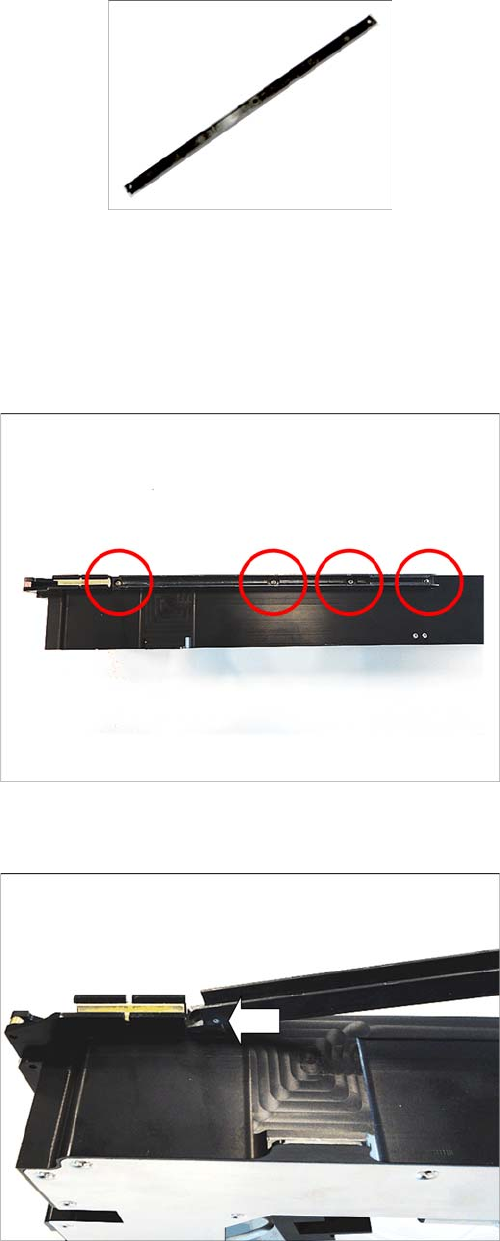

► Remove the 4 marked screws on the sliding guide.
Use a Phillips screwdriver for this.
► Lift the sliding guide upwards and off.
► Turn the glue feeder so that the underside is at the
top.
► Fit the sliding guide onto the underside of the glue
feeder.
Make sure that the arrangement of holes in the sliding
guide corresponds to that in the glue feeder.
► Push the sliding guide, as shown, forward towards
the front sliding guide, as far as the stop.
Replacing Spare Parts
Rear Sliding Guide 3.4.2 Fitting the Sliding Guide
14 Service Manual SIPLACE Glue Feeder

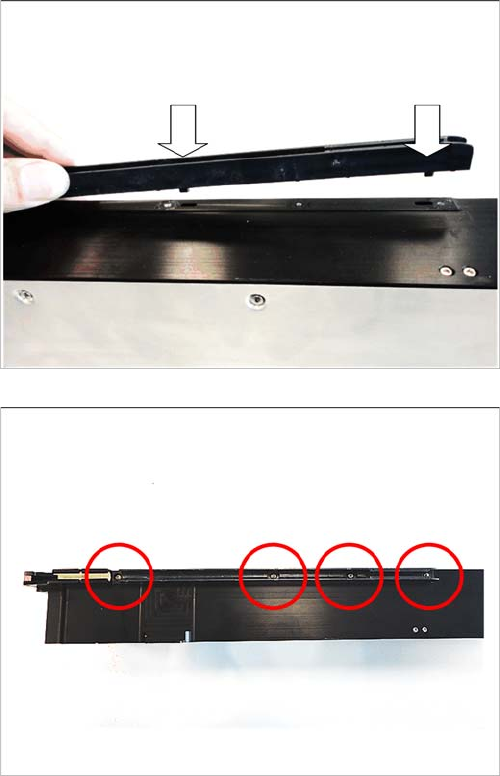

► Now lower the two snap tabs of the sliding guide into
the openings provided on the underside of the glue
feeder.
► Use the 4 screws to fasten the sliding guide to the
glue feeder. Use a Phillips screwdriver for this.
Replacing Spare Parts
3.5.1 Removing the Cartridge Adapter Changing the Cartridge Adapter
Service Manual SIPLACE Glue Feeder 15
3.5
3.5 Changing the Cartridge Adapter
Changing the Cartridge Adapter
Required spare parts
10 ccm cartridge adapter, plastic item no. KA10, item no. 03095057-xx (left)
30 ccm cartridge adapter, plastic item no. KA30, item no. 03095047-xx (right)
3.5.1
3.5.1 Removing the Cartridge Adapter
Removing the Cartridge Adapter
► Place the glue feeder down on a firm surface.
► Hold the cartridge tightly with one hand.
► Turn the cartridge adapter anticlockwise by about
90°.
► Press the cartridge adapter towards the back and pull
it off.
