Replacing Spare Parts
3.5.1 Removing the Cartridge Adapter Changing the Cartridge Adapter
Service Manual SIPLACE Glue Feeder 15
3.5
3.5 Changing the Cartridge Adapter
Changing the Cartridge Adapter

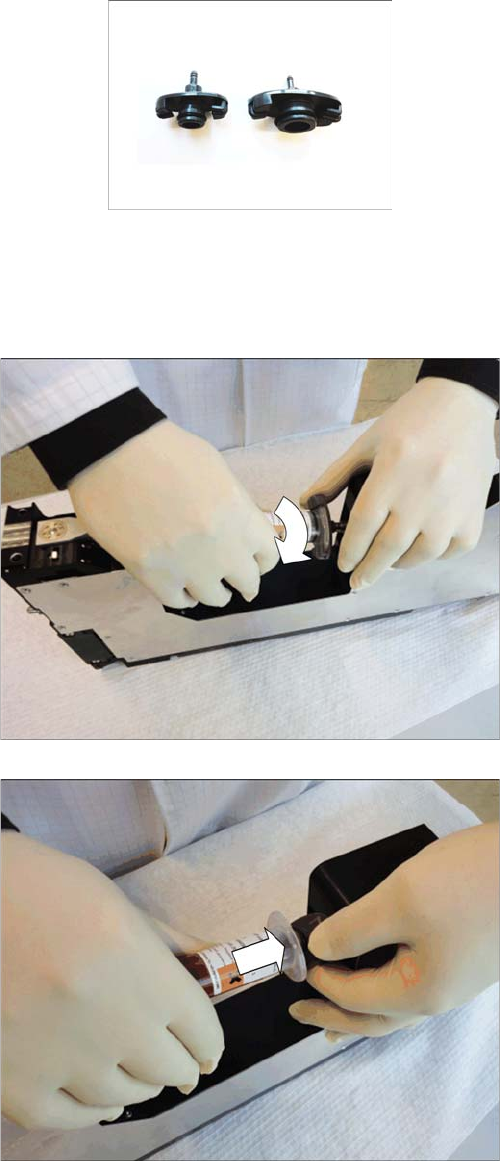

Required spare parts
10 ccm cartridge adapter, plastic item no. KA10, item no. 03095057-xx (left)
30 ccm cartridge adapter, plastic item no. KA30, item no. 03095047-xx (right)
3.5.1
3.5.1 Removing the Cartridge Adapter
Removing the Cartridge Adapter
► Place the glue feeder down on a firm surface.
► Hold the cartridge tightly with one hand.
► Turn the cartridge adapter anticlockwise by about
90°.
► Press the cartridge adapter towards the back and pull
it off.
Replacing Spare Parts
Changing the Cartridge Adapter 3.5.2 Fitting the Cartridge Adapter
16 Service Manual SIPLACE Glue Feeder
3.5.2
3.5.2 Fitting the Cartridge Adapter
Fitting the Cartridge Adapter

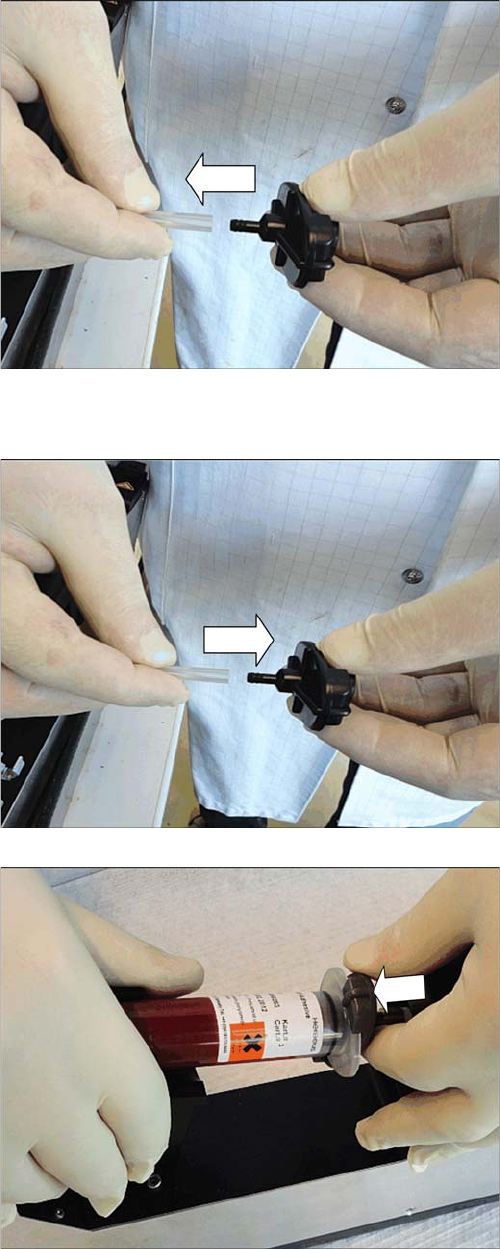

► Pull the hose off the cartridge adapter.
► Fit the hose to the cartridge adapter.
► Fit the cartridge adapter at the straight points onto the
back of the cartridge and press on as far as the stop.
Replacing Spare Parts
3.5.2 Fitting the Cartridge Adapter Changing the Cartridge Adapter
Service Manual SIPLACE Glue Feeder 17

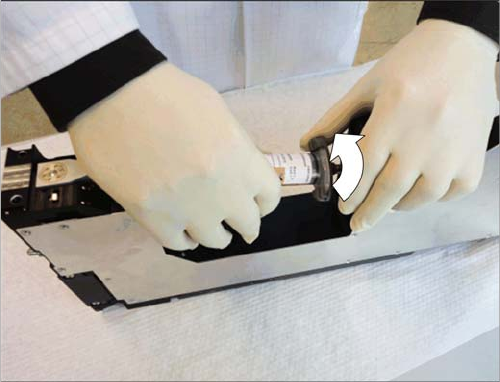

► Turn the cartridge adapter clockwise onto the car
-
tridge, as far as the stop.
