Replacing Spare Parts 3.8.1 Removing the Right Side Cover Right Side Cover Service Manual SIPLACE Glue Feeder 21 3.8 3 . 8 R ig h t S id e C o v e r Right Side Cover Required spare parts Cover for glue feeder, right, ite…
Replacing Spare Parts
Left Side Cover 3.7.1 Removing the Left Side Cover
20 Service Manual SIPLACE Glue Feeder
3.7

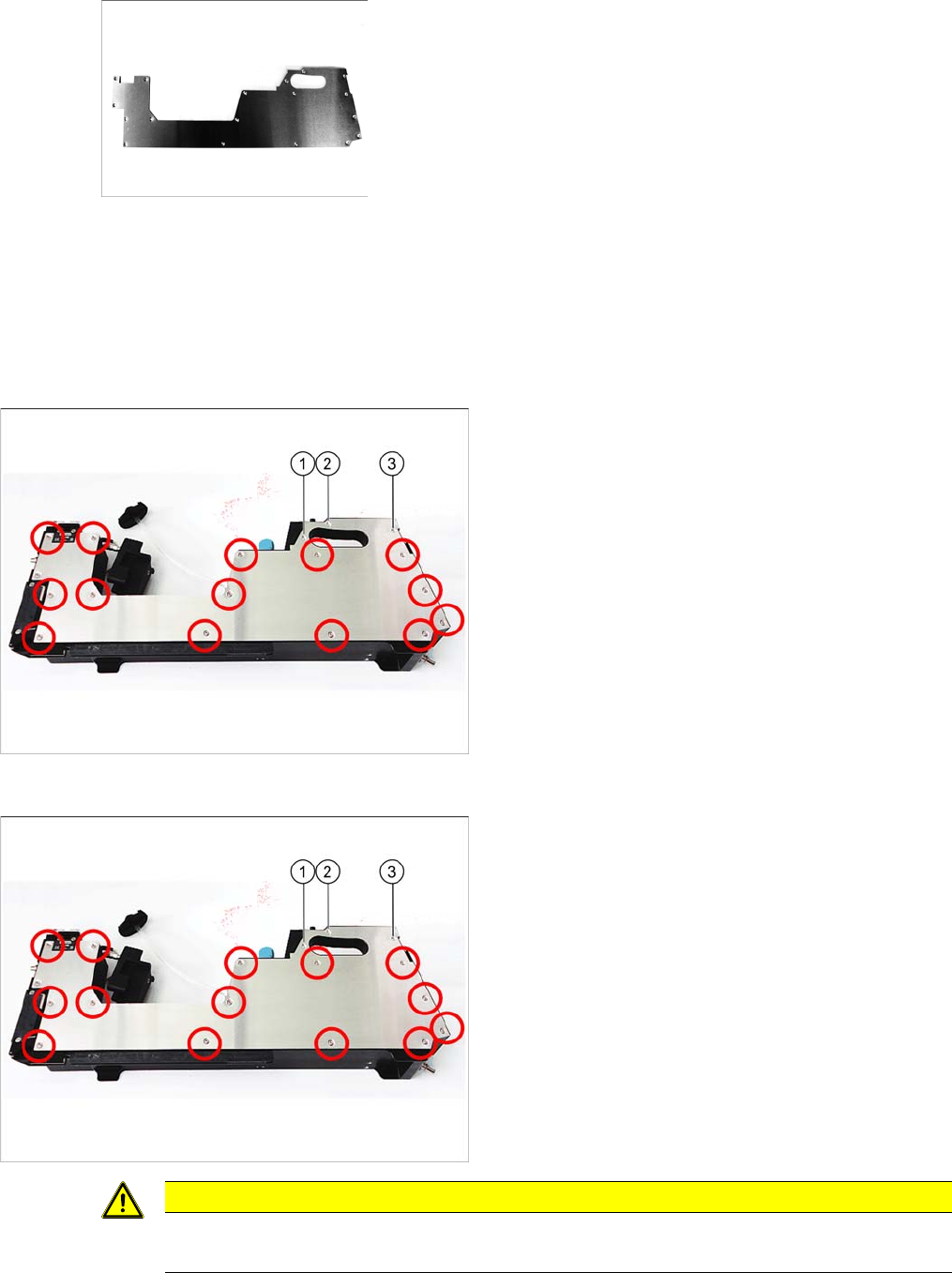

3.7 Left Side Cover
Left Side Cover
Required spare parts
Cover for glue feeder, left, item no. 03088710-xx
Required tools
▪ Phillips screwdriver
▪ TORX screwdriver size T8
3.7.1
3.7.1 Removing the Left Side Cover
Removing the Left Side Cover
3.7.2
3.7.2 Fitting the Left Side Cover
Fitting the Left Side Cover
► Carefully place the feeder module with the right-side
side down on a stable, level and clean surface.
► Loosen the screws marked in the diagram. The
screws 1, 2 and 3 are Torx screws, while all other
ones are Phillips screws.
► Carefully place the feeder module with the right-side
side down on a stable, level and clean surface.
► Loosen the screws marked in the diagram. The
screws 1, 2 and 3 are Torx screws, while all other
ones are Phillips screws.
CAUTION
Do not distort the screws
When you tighten the screws, make sure that these are NOT distorted.
Replacing Spare Parts
3.8.1 Removing the Right Side Cover Right Side Cover
Service Manual SIPLACE Glue Feeder 21
3.8

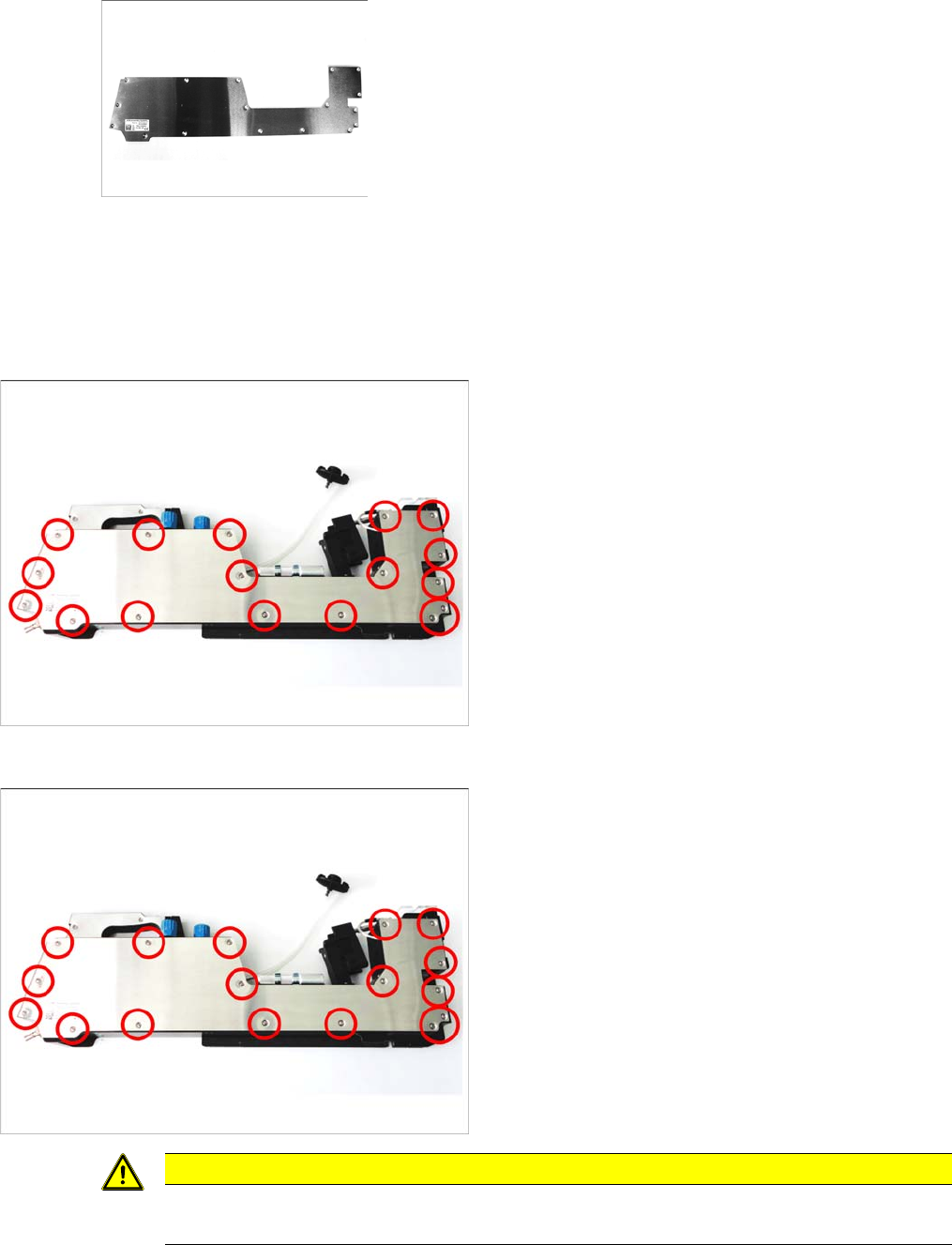

3.8 Right Side Cover
Right Side Cover
Required spare parts
Cover for glue feeder, right, item no. 03093796-xx
Required tools
▪ Phillips screwdriver
3.8.1
3.8.1 Removing the Right Side Cover
Removing the Right Side Cover
3.8.2
3.8.2 Fitting the Right Side Cover
Fitting the Right Side Cover
► Carefully place the feeder module with the left-hand
side down on a stable, level and clean surface.
► Loosen the Philips screws marked in the diagram.
► Carefully place the feeder module with the right-side
side down on a stable, level and clean surface.
► Fasten the Philips screws marked in the diagram.
CAUTION
Do not distort the screws
When you tighten the screws, make sure that these are NOT distorted.
Replacing Spare Parts
Nozzle Heating 3.9.1 Removing the Nozzle Heating
22 Service Manual SIPLACE Glue Feeder
3.9

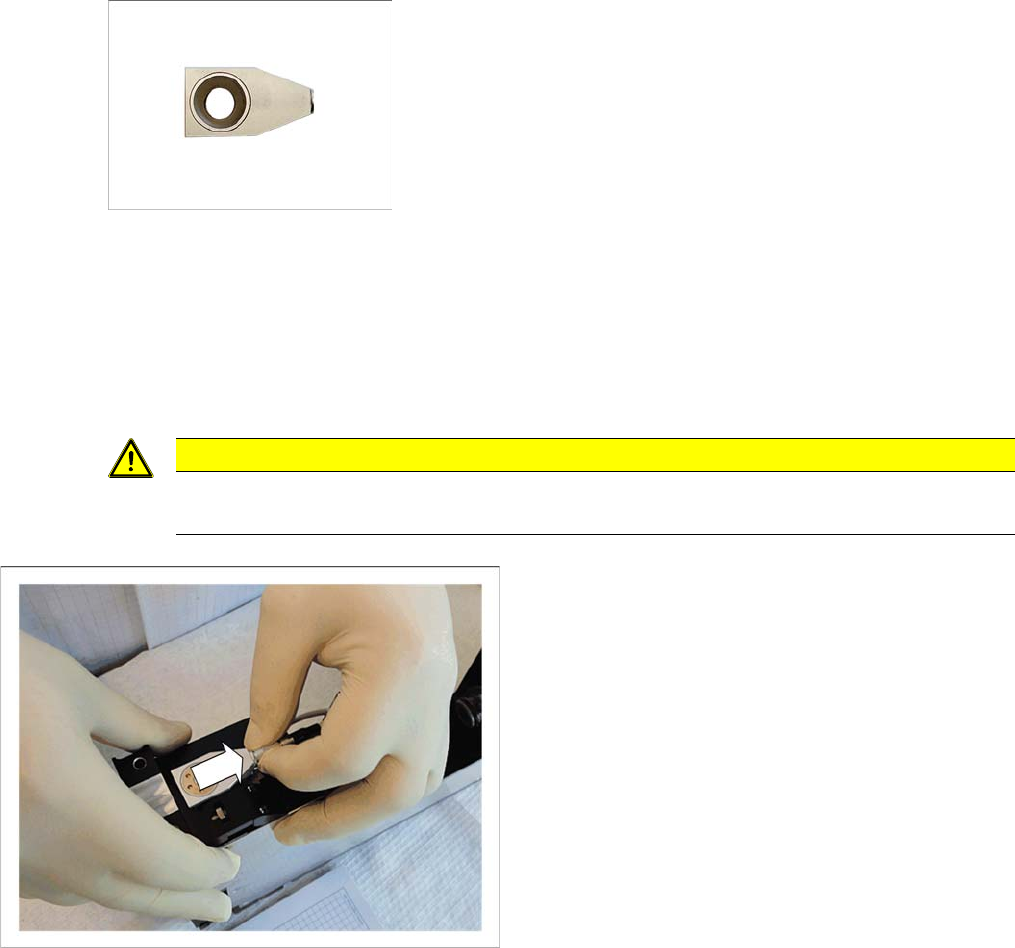

3.9 Nozzle Heating
Nozzle Heating
Required spare parts
Nozzle heating, item no. 03088150-xx
Tools and equipment required
▪ Heating key (on the glue feeder)
▪ Disposable protective gloves
3.9.1
3.9.1 Removing the Nozzle Heating
Removing the Nozzle Heating
CAUTION
Poisonous and hazardous substances
To avoid direct contact with the glue, always wear protective gloves during this work.
► Unplug the heating connector from the nozzle heat
-
ing.
