Replacing Spare Parts
Nozzle Heating 3.9.1 Removing the Nozzle Heating
22 Service Manual SIPLACE Glue Feeder
3.9
3.9 Nozzle Heating
Nozzle Heating
Required spare parts
Nozzle heating, item no. 03088150-xx
Tools and equipment required
▪ Heating key (on the glue feeder)
▪ Disposable protective gloves
3.9.1
3.9.1 Removing the Nozzle Heating
Removing the Nozzle Heating
CAUTION
Poisonous and hazardous substances
To avoid direct contact with the glue, always wear protective gloves during this work.
► Unplug the heating connector from the nozzle heat
-
ing.
Replacing Spare Parts
3.9.2 Fitting the Nozzle Heating Nozzle Heating
Service Manual SIPLACE Glue Feeder 23
3.9.2
3.9.2 Fitting the Nozzle Heating
Fitting the Nozzle Heating

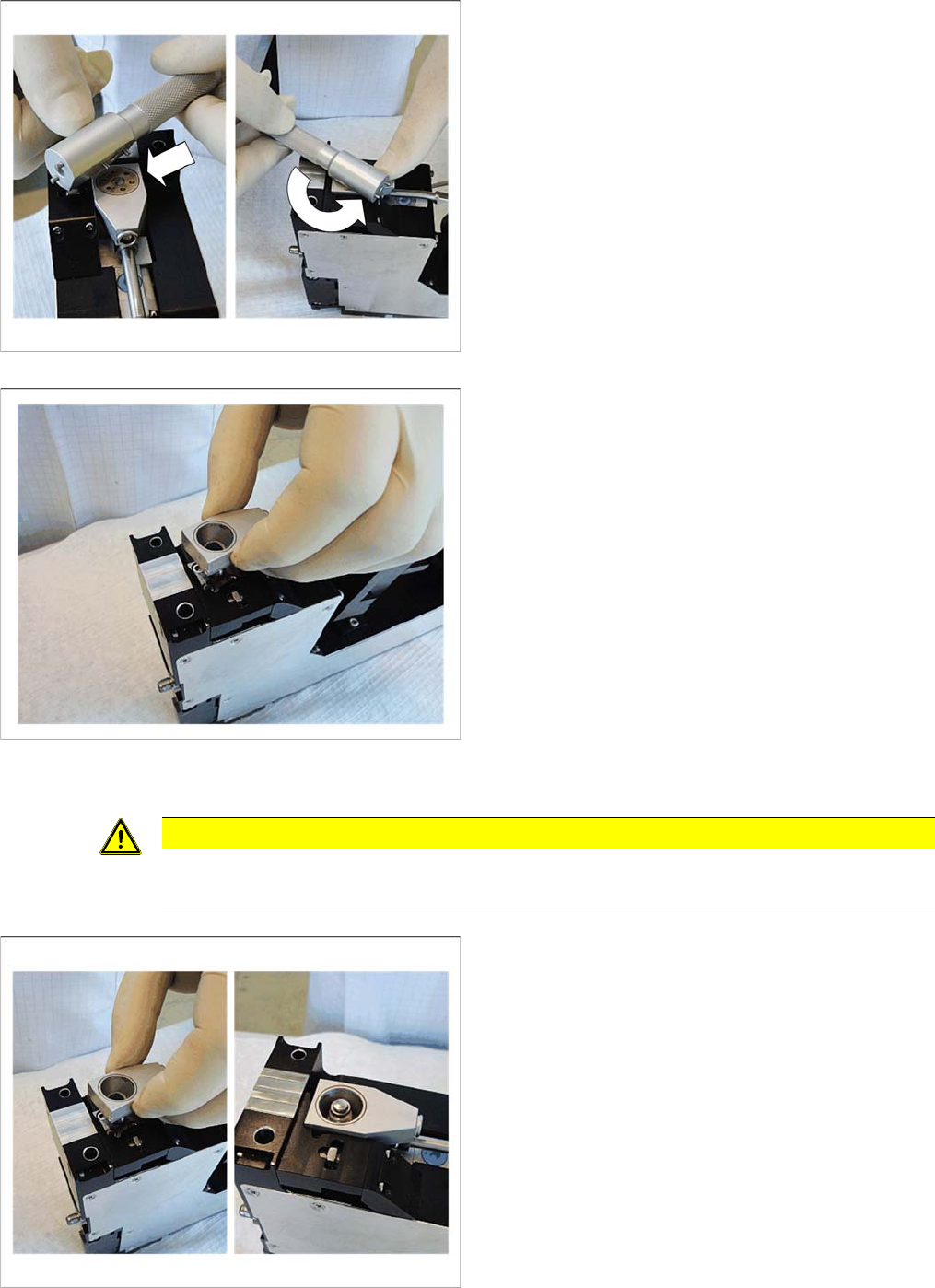

► Position the two lugs of the special tool into the two
holes in the union nut.
► Loosen the union nut by turning it anticlockwise.
► Remove the union nut.
► Remove the nozzle heating.
CAUTION
Poisonous and hazardous substances
To avoid direct contact with the glue, always wear protective gloves during this work.
► Place the nozzle heating onto the jet block and align
this straight on the feed pipe.
Replacing Spare Parts
Nozzle Heating 3.9.2 Fitting the Nozzle Heating
24 Service Manual SIPLACE Glue Feeder

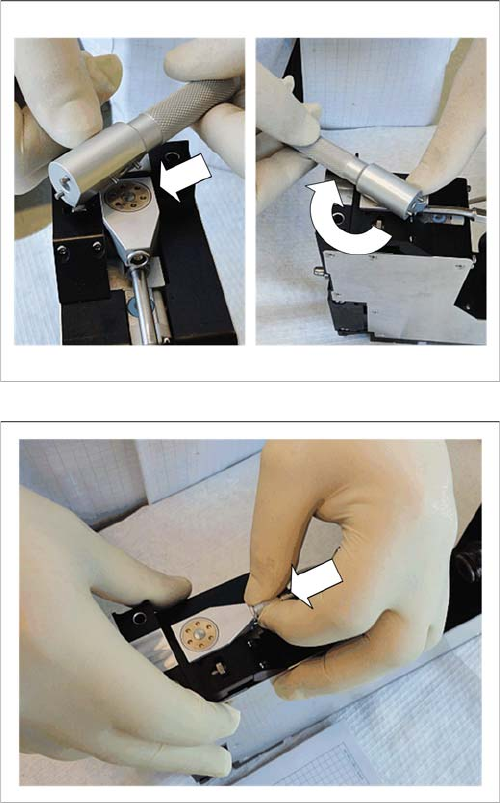

► Fit the union nut onto the dispenser nozzle.
► Position the two lugs of the special tool into the two
holes in the union nut.
► Tighten the union nut by turning it clockwise.
► Insert the heating connector into the nozzle heating,
up to the stop.
