Replacing Spare Parts Nozzle Heating 3.9.2 Fitting the Nozzle Heating 24 Service Manual SIPLACE Glue Feeder ► Fit the union n ut onto the dispenser n ozzle. ► Position the tw o lugs of the special tool into the two holes…
Replacing Spare Parts
3.9.2 Fitting the Nozzle Heating Nozzle Heating
Service Manual SIPLACE Glue Feeder 23
3.9.2
3.9.2 Fitting the Nozzle Heating
Fitting the Nozzle Heating
► Position the two lugs of the special tool into the two
holes in the union nut.
► Loosen the union nut by turning it anticlockwise.
► Remove the union nut.
► Remove the nozzle heating.
CAUTION
Poisonous and hazardous substances
To avoid direct contact with the glue, always wear protective gloves during this work.
► Place the nozzle heating onto the jet block and align
this straight on the feed pipe.
Replacing Spare Parts
Nozzle Heating 3.9.2 Fitting the Nozzle Heating
24 Service Manual SIPLACE Glue Feeder
► Fit the union nut onto the dispenser nozzle.
► Position the two lugs of the special tool into the two
holes in the union nut.
► Tighten the union nut by turning it clockwise.
► Insert the heating connector into the nozzle heating,
up to the stop.
Replacing Spare Parts
3.10.1 Removing the Heating Cable Heating Cable
Service Manual SIPLACE Glue Feeder 25
3.10
3.10 Heating Cable
Heating Cable

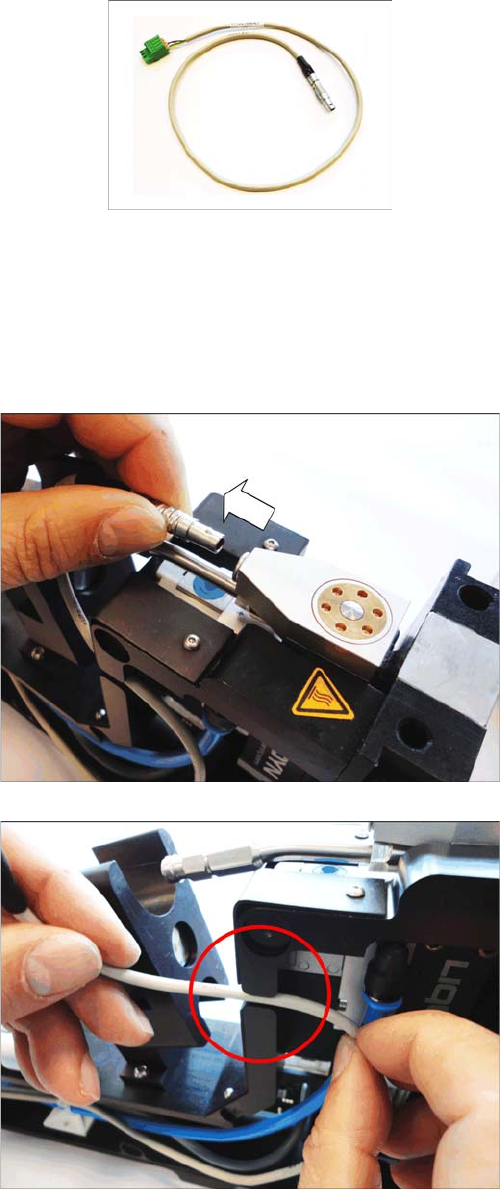

Required spare parts
Cable for nozzle heating, item no. 03094174S-xx
Tools and equipment required
▪ Diagonal cutter
3.10.1
3.10.1 Removing the Heating Cable
Removing the Heating Cable
► Remove the right side cover (see "3.8.1 Removing
the Right Side Cover" [ ➙ 21])
► Remove the left side cover (see "3.7.1 Removing the
Left Side Cover" [ ➙ 20].
► Unplug the heating cable from the heating.
On the right side of the glue feeder:
► Remove the heating cable from the cable duct.
