Replacing Spare Parts Heating Cable 3.10.1 Removing the Heating Cable 26 Service Manual SIPLACE Glue Feeder ► Op en the cable t ies. Use diagonal cutter fo r this, for example. On the left side of the glue feeder: ► Pull…
Replacing Spare Parts
3.10.1 Removing the Heating Cable Heating Cable
Service Manual SIPLACE Glue Feeder 25
3.10
3.10 Heating Cable
Heating Cable
Required spare parts
Cable for nozzle heating, item no. 03094174S-xx
Tools and equipment required
▪ Diagonal cutter
3.10.1
3.10.1 Removing the Heating Cable
Removing the Heating Cable
► Remove the right side cover (see "3.8.1 Removing
the Right Side Cover" [ ➙ 21])
► Remove the left side cover (see "3.7.1 Removing the
Left Side Cover" [ ➙ 20].
► Unplug the heating cable from the heating.
On the right side of the glue feeder:
► Remove the heating cable from the cable duct.
Replacing Spare Parts
Heating Cable 3.10.1 Removing the Heating Cable
26 Service Manual SIPLACE Glue Feeder

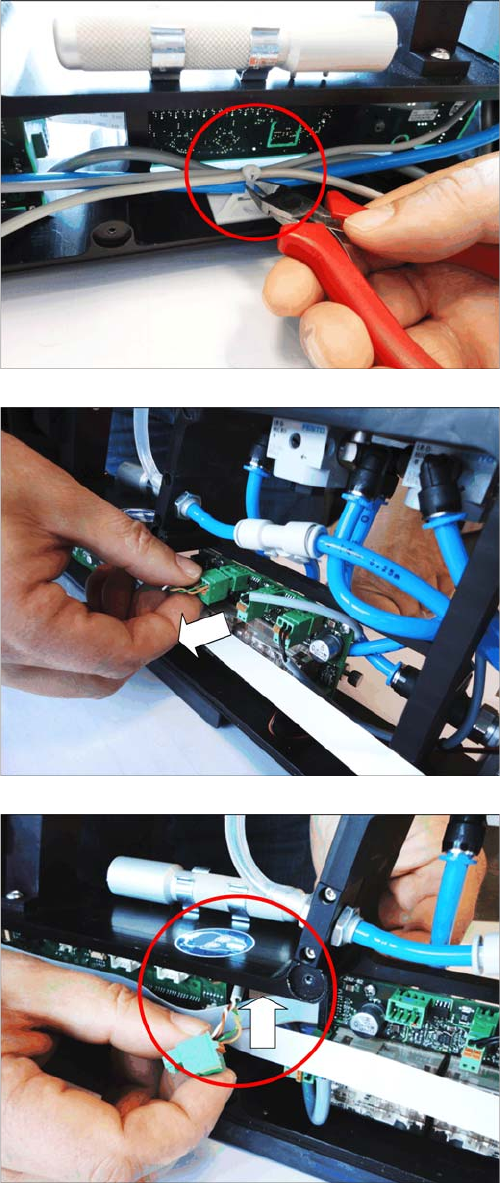

► Open the cable ties.
Use diagonal cutter for this, for example.
On the left side of the glue feeder:
► Pull the heating cable connector out of the heating
control unit.
► As shown in the diagram, insert the end of the heating
cable through the frame, from the left side to the right
side of the glue feeder.
► Remove the heating cable.
Replacing Spare Parts
3.10.2 Fitting the Heating Cable Heating Cable
Service Manual SIPLACE Glue Feeder 27
3.10.2
3.10.2 Fitting the Heating Cable
Fitting the Heating Cable
► Insert the heating cable connector through the frame,
from the right side to the left side of the glue feeder.
On the left side of the glue feeder:
► As shown in the diagram, insert the heating cable
connector into the heating control unit.
On the right side of the glue feeder:
► Fix the heating cable into place with a cable tie.
