Replacing Spare Parts Cartridge Pipe 3.11.1 Removing the Cartridge Pipe 30 Service Manual SIPLACE Glue Feeder ► Press the cartridge a dapter towards the back an d pull it off. ► Unscrew the cartridge from the cartridge p…
Replacing Spare Parts
3.11.1 Removing the Cartridge Pipe Cartridge Pipe
Service Manual SIPLACE Glue Feeder 29
3.11
3.11 Cartridge Pipe
Cartridge Pipe
Required spare parts
Cartridge pipe, item no. 03089046-xx
Tools and equipment required
▪ Spanner wrench, 8 mm
▪ Heating key (on the glue feeder)
▪ Disposable protective gloves
3.11.1
3.11.1 Removing the Cartridge Pipe
Removing the Cartridge Pipe
CAUTION
Poisonous and hazardous substances
To avoid direct contact with the glue, always wear protective gloves during this work.
► Place the glue feeder down on a firm surface.
► Hold the cartridge tightly with one hand.
► Turn the cartridge adapter anticlockwise by about
90°.
Replacing Spare Parts
Cartridge Pipe 3.11.1 Removing the Cartridge Pipe
30 Service Manual SIPLACE Glue Feeder
► Press the cartridge adapter towards the back and pull
it off.
► Unscrew the cartridge from the cartridge pipe thread.
► Unplug the heating connector from the nozzle heat
-
ing.
Replacing Spare Parts
3.11.1 Removing the Cartridge Pipe Cartridge Pipe
Service Manual SIPLACE Glue Feeder 31

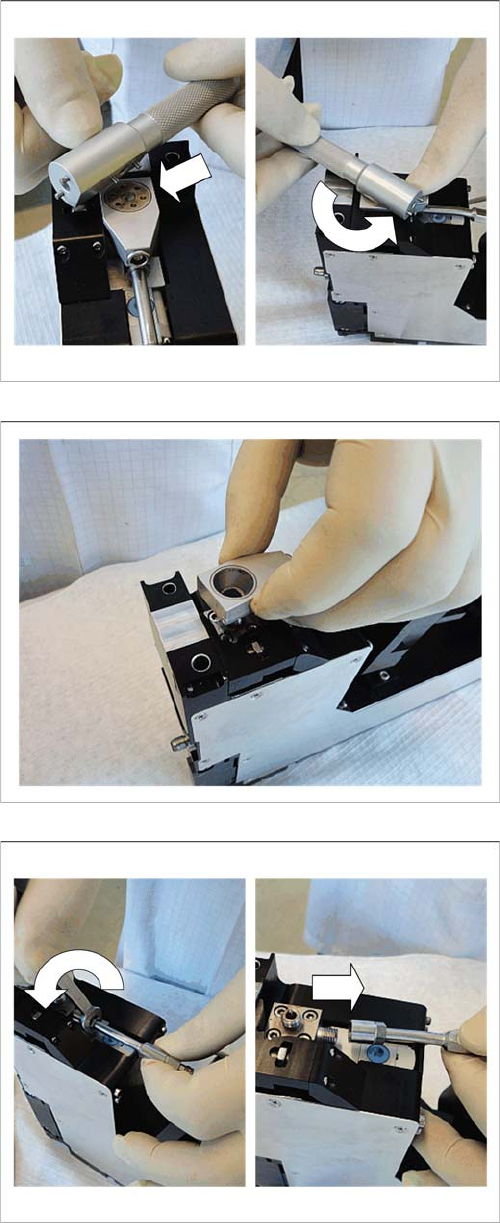

► Position the two lugs of the special tool into the two
holes in the union nut.
► Loosen the union nut by turning it anticlockwise.
► Remove the union nut.
► Remove the nozzle heating.
► Hold the cartridge pipe tight with one hand.
► Loosen the screwed connection with the help of an 8
mm open-ended wrench.
► Remove the cartridge pipe.
