Replacing Spare Parts
3.11.2 Fitting the Cartridge Pipe Cartridge Pipe
Service Manual SIPLACE Glue Feeder 33

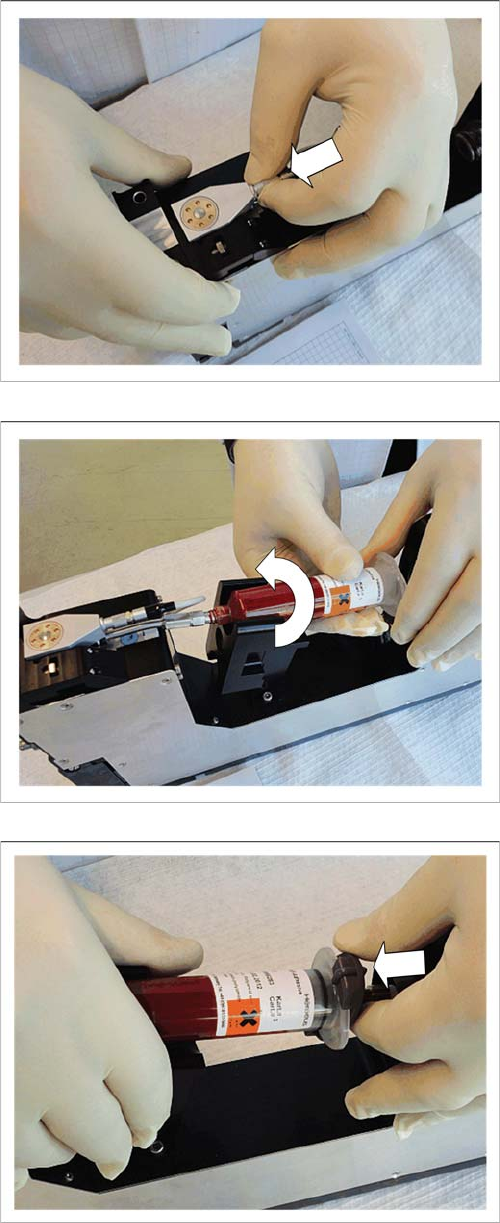

► Insert the heating connector into the nozzle heating,
up to the stop.
► Hold the cartridge against the cartridge pipe and
screw it on to the pipe straight.
► Fit the cartridge adapter at the straight points onto the
back of the cartridge and press on as far as the stop.
Replacing Spare Parts
Dispenser Nozzle 3.11.2 Fitting the Cartridge Pipe
34 Service Manual SIPLACE Glue Feeder
3.12
3.12 Dispenser Nozzle
Dispenser Nozzle
Required spare parts
Flat nozzle FD6100, item no. 03094220-xx
Needle nozzle ND6150, item no. 03094182-xx
Tools and equipment required
▪ Heating key (on the glue feeder)
▪ Disposable protective gloves
► Turn the cartridge adapter clockwise as far as the
stop.
NOTICE
Flat nozzle and needle nozzle
Depending upon its purpose, the glue feeder can be used with either a flat or needle nozzle.
The procedure for replacement is the same in both types and is illustrated using the example
of the flat nozzle in the following section:
Replacing Spare Parts
3.12.1 Removing the Dispenser Nozzle Dispenser Nozzle
Service Manual SIPLACE Glue Feeder 35
3.12.1
3.12.1 Removing the Dispenser Nozzle
Removing the Dispenser Nozzle
CAUTION
Poisonous and hazardous substances
To avoid direct contact with the glue, always wear protective gloves during this work.
► Unplug the heating connector from the nozzle heat
-
ing.
► Position the two lugs of the special tool into the two
holes in the union nut.
► Loosen the union nut by turning it anticlockwise.
► Remove the union nut.
► Remove the nozzle heating.
