Replacing Spare Parts
3.14.1 Removing the Actuator O-Ring and Guide Bushing Guide Bushing
Service Manual SIPLACE Glue Feeder 43

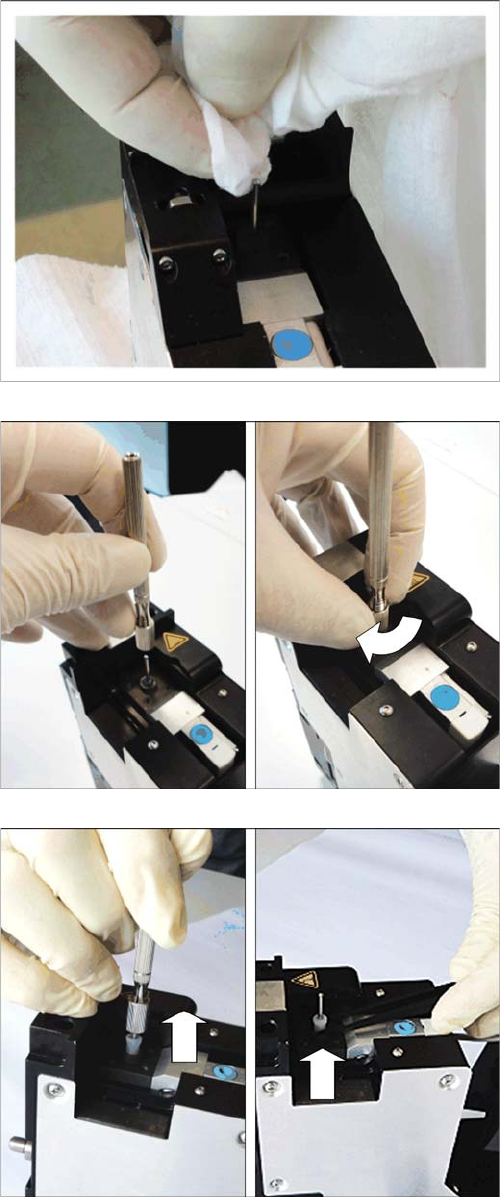

► Clean the jet plunger again with a cleansing tissue
and a little glue remover.
► Fit the plunger service tool vertically onto the jet
plunger, from above.
► Turn the plunger service tool clockwise until tight
-
ened.
► Pull the plunger service tool vertically upwards, to
-
gether with the jet plunger.
► Turn the plunger service tool anticlockwise until loos
-
ened.
► Carefully lift the guide bushing vertically up and off
the jet plunger, using the tweezers.
Replacing Spare Parts
Guide Bushing 3.14.2 Inserting the Actuator O-Ring and Guide Bushing
44 Service Manual SIPLACE Glue Feeder
3.14.2
3.14.2 Inserting the Actuator O-Ring and Guide Bushing
Inserting the Actuator O-Ring and Guide Bushing
► From above, fit the plunger service tool vertically onto
the jet plunger again.
► Turn the plunger service tool clockwise until tight
-
ened.
► Pull the plunger service tool vertically upwards, to
-
gether with the jet plunger.
► Use the antistatic tweezers to hold the actuator O-
ring tight.
► Turn the plunger service tool anticlockwise until loos
-
ened.
► Use the antistatic tweezers to lift the actuator O-ring
vertically upwards and off the jet plunger.
CAUTION
Poisonous and hazardous substances
To avoid direct contact with the glue, always wear protective gloves during this work.
NOTICE
Replace the O-ring
Damaged O-rings are no longer able to fulfil their sealing function. As a result, the pressure re
-
quired at the jet valve can not be produced to its full extent. We therefore recommend that you
also replace the actuator O-ring when you replace the guide bushing.
► Coat the actuator O-ring with a little O-ring NBR in
-
side grease (special grease for actuator O-rings).
Replacing Spare Parts
3.14.2 Inserting the Actuator O-Ring and Guide Bushing Guide Bushing
Service Manual SIPLACE Glue Feeder 45
► From above, fit the actuator O-ring onto the jet plung
-
er.
► From above, fit the O-ring service tool vertically onto
the jet plunger and push the actuator O-ring as far as
possible (end stop) onto the jet plunger.
► Remove the O-ring service tool.
► Clean the jet plunger with a cleansing tissue.
► From above, fit the guide bushing onto the jet plung
-
er.
► From above, fit the O-ring service tool vertically onto
the jet plunger and push the guide bushing as far as
possible (end stop) onto the jet plunger.
► Remove the O-ring service tool.
► Fit the jet block (see "3.13.2 Fitting the Jet Block"
[➙40]).
► Fit the cartridge pipe, nozzle heating and cartridge
into place (see "3.11.2 Fitting the Cartridge Pipe"
[➙32])
