Replacing Spare Parts
3.14.2 Inserting the Actuator O-Ring and Guide Bushing Guide Bushing
Service Manual SIPLACE Glue Feeder 45
► From above, fit the actuator O-ring onto the jet plung
-
er.
► From above, fit the O-ring service tool vertically onto
the jet plunger and push the actuator O-ring as far as
possible (end stop) onto the jet plunger.
► Remove the O-ring service tool.
► Clean the jet plunger with a cleansing tissue.
► From above, fit the guide bushing onto the jet plung
-
er.
► From above, fit the O-ring service tool vertically onto
the jet plunger and push the guide bushing as far as
possible (end stop) onto the jet plunger.
► Remove the O-ring service tool.
► Fit the jet block (see "3.13.2 Fitting the Jet Block"
[➙40]).
► Fit the cartridge pipe, nozzle heating and cartridge
into place (see "3.11.2 Fitting the Cartridge Pipe"
[➙32])
Replacing Spare Parts
Jet Valve P-DOT 3.15.1 Removing the Jet Valve P-DOT
46 Service Manual SIPLACE Glue Feeder
3.15
3.15 Jet Valve P-DOT
Jet Valve P-DOT
Required spare parts
Jet valve P-DOT with modified cable, item no. 03096487-xx
Required tools
▪ Allen key size 1.5
▪ Allen key size 2
▪ Allen key size 2.5
▪ Heating key (on the Glue Feeder)
▪ Open-ended wrench, size 8
▪Tweezers
▪ Measuring system for plunger setting
3.15.1
3.15.1 Removing the Jet Valve P-DOT
Removing the Jet Valve P-DOT
► Remove the right side cover (see "3.8.1 Removing
the Right Side Cover" [ ➙ 21])
► Remove the cartridge.
► Remove the 4 marked screws which fasten the cover
plate to the frame. Use a size 1.5 Allen key for this.
Replacing Spare Parts
3.15.1 Removing the Jet Valve P-DOT Jet Valve P-DOT
Service Manual SIPLACE Glue Feeder 47

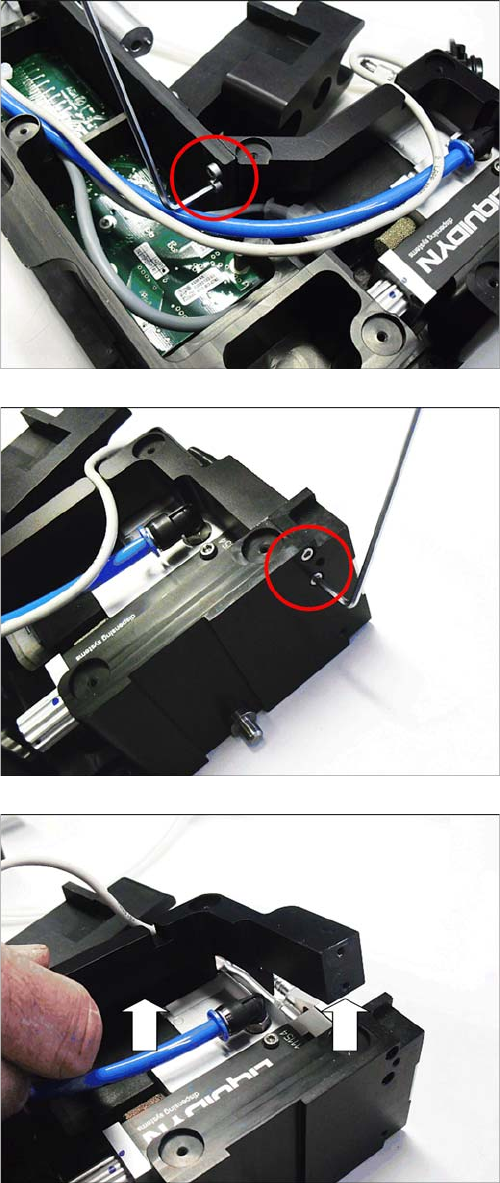

► Remove the two marked screws fastening the fixture
block at the bottom. Use a size 2.5 Allen key for this.
► Remove the two marked screws fastening the fixture
block at the top. Use a size 2 Allen key for this.
► Lift the fixture block out of the glue feeder.
