Replacing Spare Parts
Jet Valve P-DOT 3.15.1 Removing the Jet Valve P-DOT
48 Service Manual SIPLACE Glue Feeder

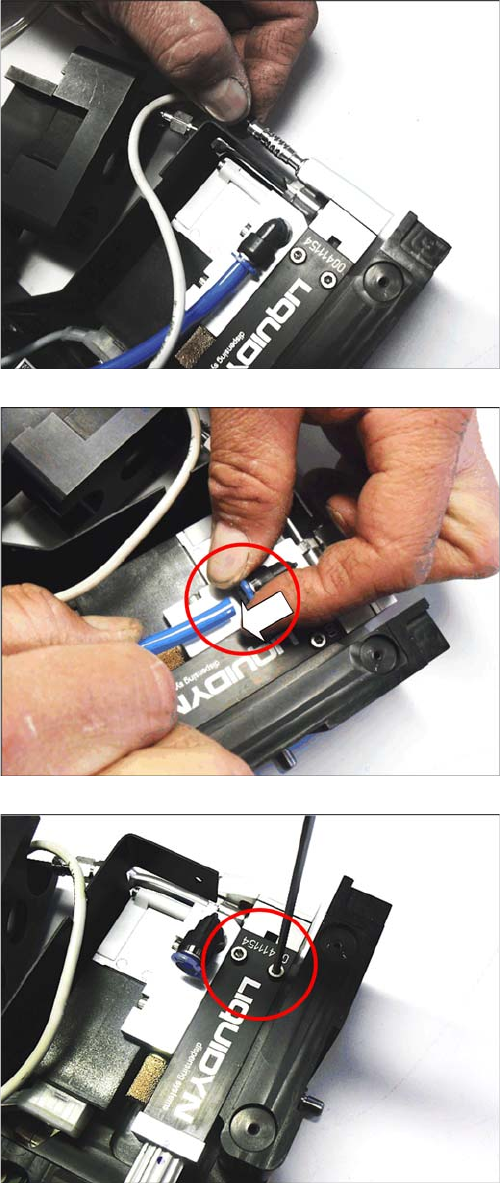

► Unplug the heating connector from the nozzle heat
-
ing.
► Remove the hose from the compressed air connec
-
tion.
► Remove the two marked screws fastening the jet
valve to the frame. Use a size 2.5 Allen key for this.
Replacing Spare Parts
3.15.1 Removing the Jet Valve P-DOT Jet Valve P-DOT
Service Manual SIPLACE Glue Feeder 49

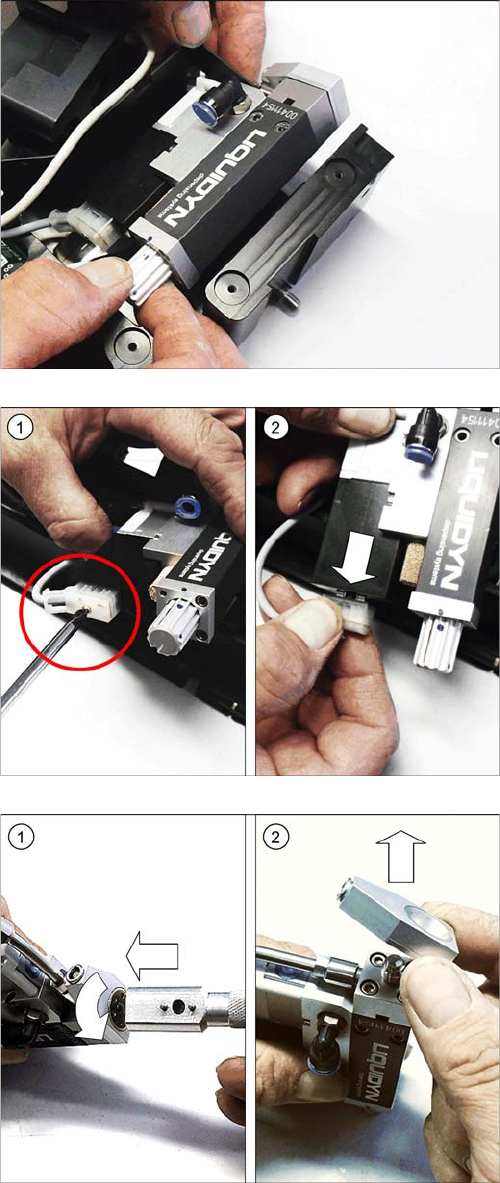

► Lift the jet valve out of the glue feeder.
► Remove the screw fastening the power supply to the
jet valve. (1)
Use a Phillips screwdriver for this.
► Unplug the power supply from the jet valve. (2)
► Insert the heating key into the union nut, screw in
loosely and then remove the key. (1)
► Lift the nozzle heating off the jet block. (2)
Replacing Spare Parts
Jet Valve P-DOT 3.15.2 Fitting the Jet Valve P-DOT
50 Service Manual SIPLACE Glue Feeder
3.15.2
3.15.2 Fitting the Jet Valve P-DOT
Fitting the Jet Valve P-DOT

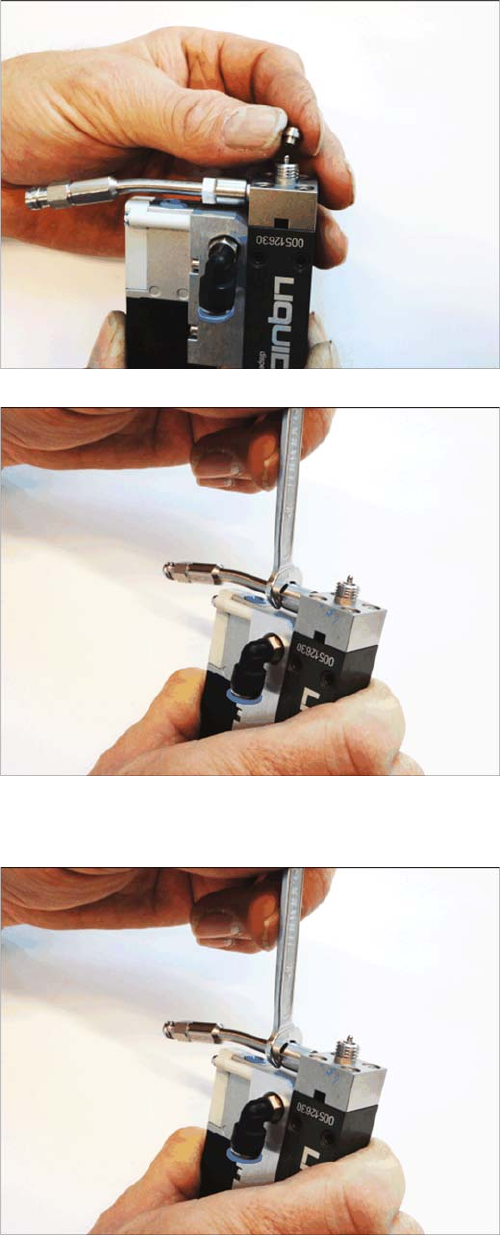

► Remove the dispenser nozzle from the jet block.
► Loosen the screwed connection with the help of an 8
mm open-ended wrench.
► Remove the cartridge pipe.
► Place the cartridge pipe from behind onto the thread
of the jet block.
► Use a size 8 mm open-ended wrench to loosely fas
-
ten the cartridge pipe in a clockwise direction.
