Replacing Spare Parts

3.15.2 Fitting the Jet Valve P-DOT Jet Valve P-DOT

Service Manual SIPLACE Glue Feeder 51

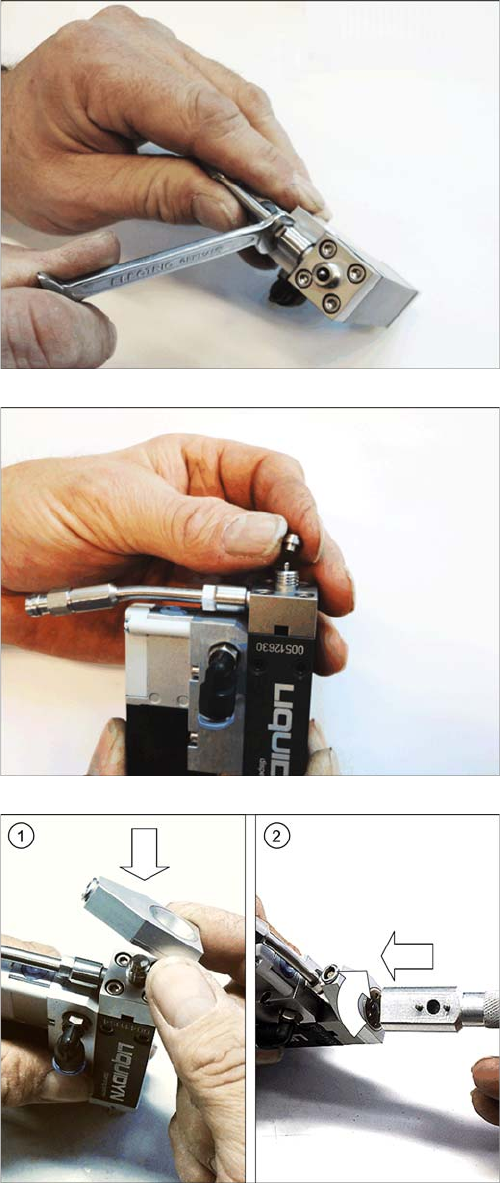

► Align the cartridge pipe centrally and straight in rela

tion to the back, so that the cartridge can be correctly

screwed into place.

► Fix the cartridge pipe with one hand in this position

and then screw the lock tight.

► Fit the dispenser nozzle onto the top of the jet block.

► Place the nozzle heating onto the jet block and align

this straight on the feed pipe. (1)

► Place the union nut into the nozzle heating and

tighten. (2) Use the heating key for this.

Replacing Spare Parts

Jet Valve P-DOT 3.15.2 Fitting the Jet Valve P-DOT

52 Service Manual SIPLACE Glue Feeder

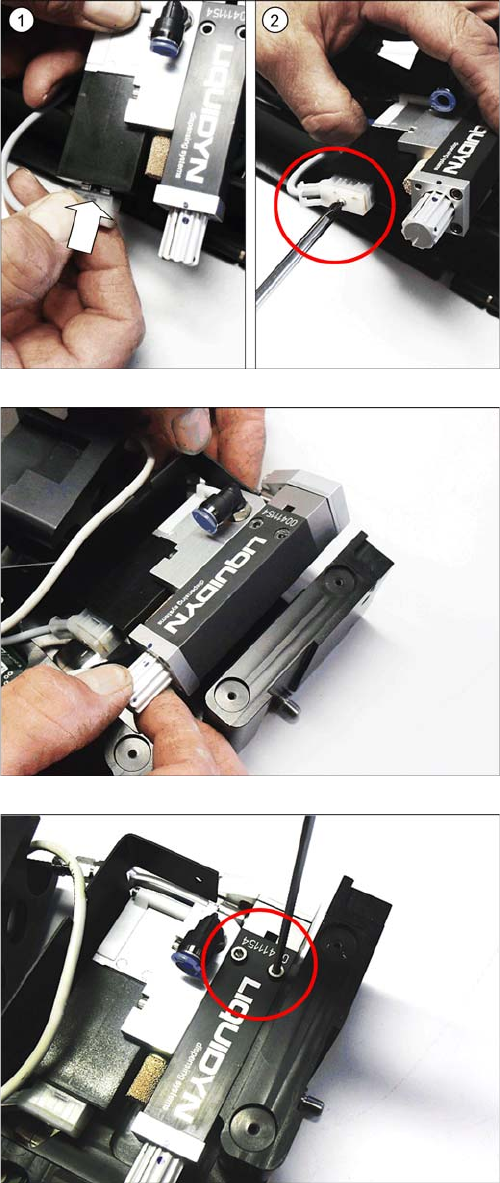

► Plug the power supply into the jet valve (down

below). (1)

► Use the marked screw to fasten the power supply into

place on the jet valve. (2) Use a Phillips screwdriver

for this.

► As shown in the diagram, lift the jet valve into the glue

feeder.

► Coat the tips of the two screws with LOCTITE 243.

► Use the two marked screws to loosely tighten the jet

valve to the frame. Use a size 2.5 Allen key for this.

Replacing Spare Parts

3.15.2 Fitting the Jet Valve P-DOT Jet Valve P-DOT

Service Manual SIPLACE Glue Feeder 53

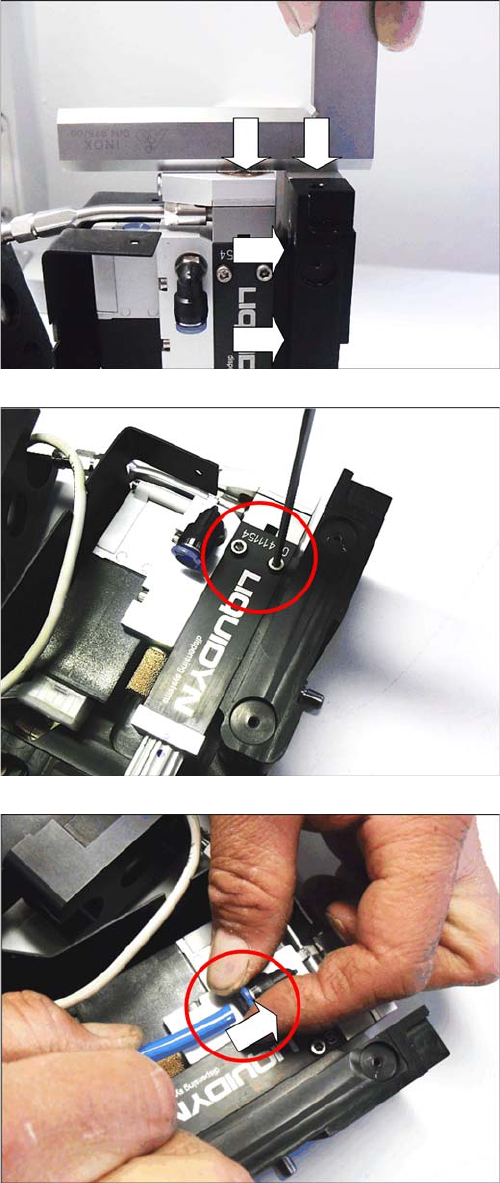

► Align the jet valve.

The right side of the jet valve must be flush with the

frame.

The nozzle should be at the same height as the refer

ence sheets on the front of the glue feeder.

► Once the jet valve has been correctly aligned, tighten

the two screws.

► Insert the hose as far as possible into the com

pressed air connection.
