Replacing Spare Parts
Solenoid valve 3.18.2 Fitting the Solenoid Valve
74 Service Manual SIPLACE Glue Feeder
3.18.2
3.18.2 Fitting the Solenoid Valve
Fitting the Solenoid Valve

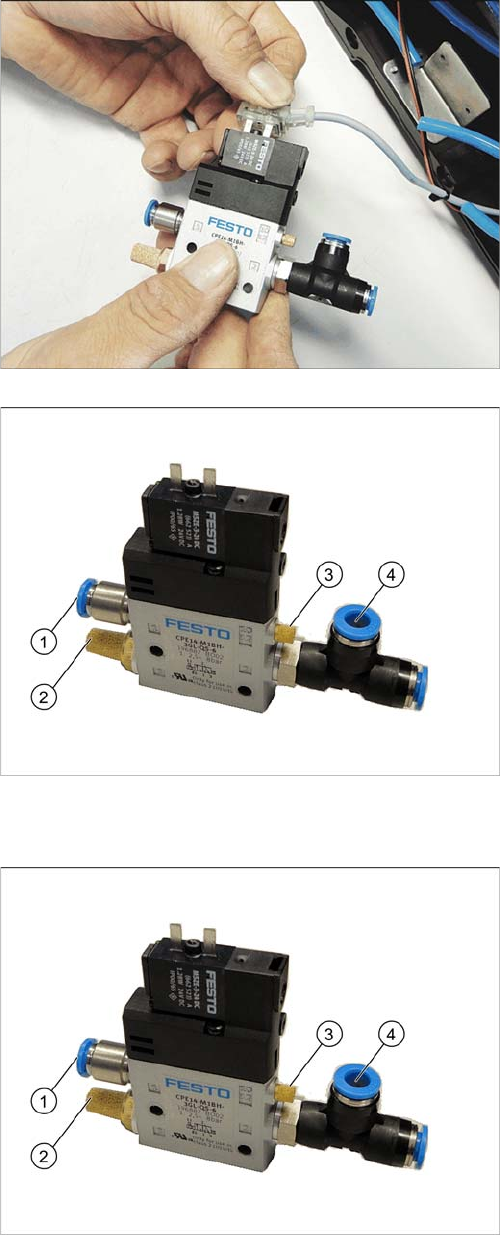

► Disconnect the plug from the solenoid valve.
► Remove the push-on connector (1), the two
silencers (2, 3) and the T-fitting (4).
► Fit the push-on connector (1), the two silencers (2, 3)
and the T-fitting (4).
Replacing Spare Parts
3.18.2 Fitting the Solenoid Valve Solenoid valve
Service Manual SIPLACE Glue Feeder 75
► As shown in the diagram, connect the power supply
to the solenoid valve.
► Screw the power supply connection to the solenoid
valve. Use a Phillips screwdriver for this.

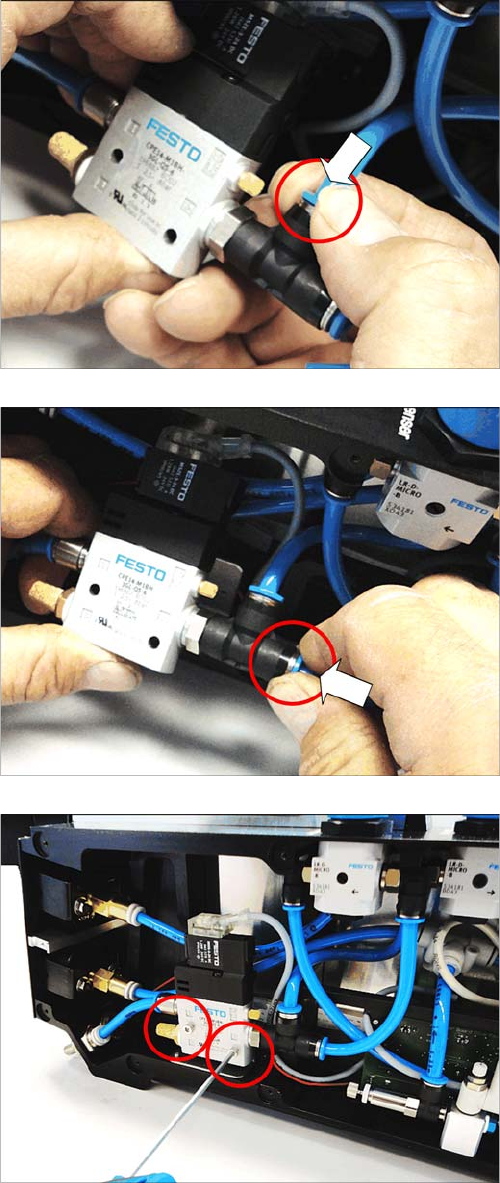

► Insert the hose as far as possible into the push-on
connector on the left side of the solenoid valve.
Replacing Spare Parts
Solenoid valve 3.18.2 Fitting the Solenoid Valve
76 Service Manual SIPLACE Glue Feeder
See also
3.8.2 Fitting the Right Side Cover [ ➙ 21]
► Insert the one hose into the top connection on the T-
connector.
► Insert the other hose into the right-hand connection
on the T-connector.
► Use the two marked screws to fasten the solenoid
valve to the frame. Use a size 2.5 Allen key for this.
► Fasten the right side cover (see .
