Replacing Spare Parts
Regulator Holder Assembly 3.19.2 Fitting the Regulator Holder
78 Service Manual SIPLACE Glue Feeder
3.19.2
3.19.2 Fitting the Regulator Holder
Fitting the Regulator Holder
See also
3.8.2 Fitting the Right Side Cover [ ➙ 21]

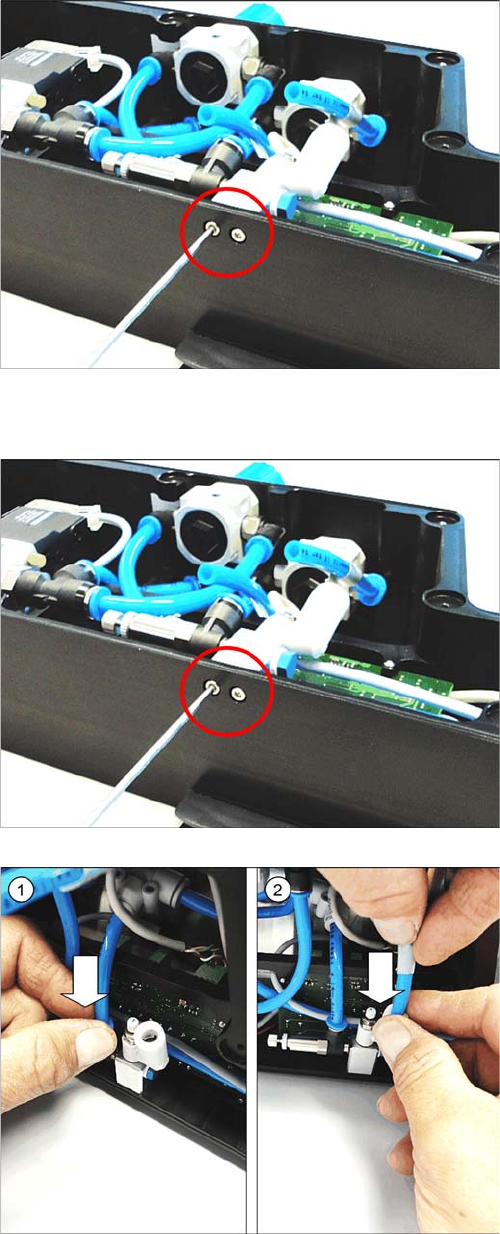

► Carefully place the glue feeder down on its left side.
► Remove the two marked screws. Use a size 2 Allen
key for this.
► Remove the regulator holder.
► Carefully place the glue feeder down on its left side.
► Coat the tips of the two screws with LOCTITE 243.
► Use the two marked screws to fasten the regulator
holder. Take a size 2 Allen key for this.
► Insert the UNMARKED hose as far as possible into
the connection on the left side. (1)
► Insert the marked hose as far as possible into the
connection on the right-hand side. (2)
► Fasten the right side cover (see .
Replacing Spare Parts
3.20.1 Removing the Plug-in Fitting Plug-in Fitting
Service Manual SIPLACE Glue Feeder 79
3.20
3.20 Plug-in Fitting
Plug-in Fitting
Required spare parts
Plug-in fitting SCN-PK-4 SCN-PK-4, item no. 03095834- xx
Required tools
▪ 2x open-ended wrench, size 13
3.20.1
3.20.1 Removing the Plug-in Fitting
Removing the Plug-in Fitting
► Remove the left side cover (see "3.7.1 Removing the
Left Side Cover" [ ➙ 20].
► Disconnect the silicon hose leading to the cartridge
from its plug-in fitting.
► Remove the outer nut which fixes the plug-in fitting to
the frame. Use 2 size 13 fork wrenches for this.
Use one to hold the nut on the inside of the frame, so
that this nut does not turn, and the other one to re
-
move the outer nut.
Replacing Spare Parts
Plug-in Fitting 3.20.2 Fitting the Plug-in Fitting
80 Service Manual SIPLACE Glue Feeder
3.20.2
3.20.2 Fitting the Plug-in Fitting
Fitting the Plug-in Fitting

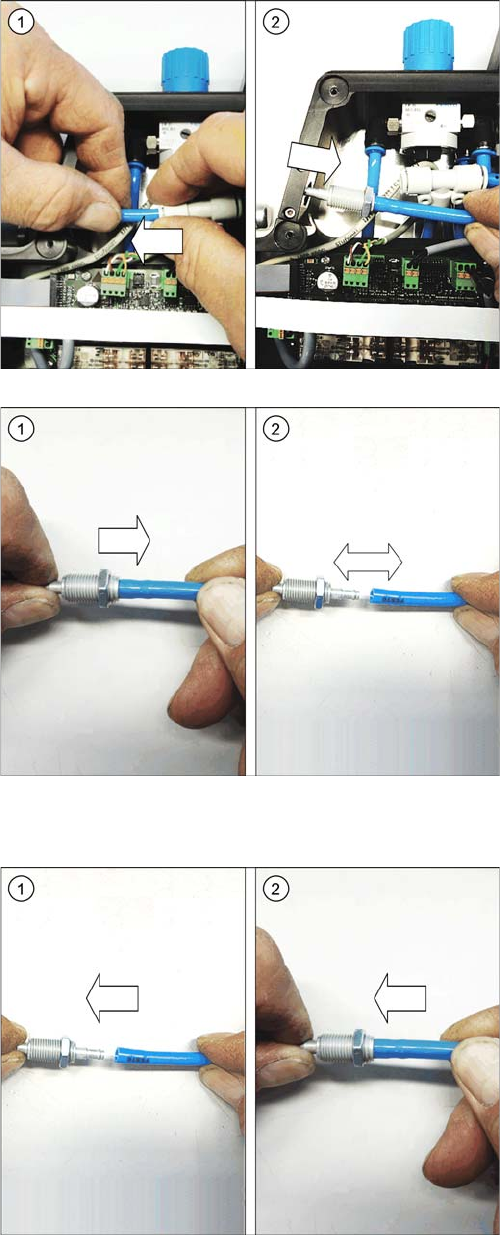

► Open the lock on the T-connector and pull out the
hose. (1)
► Pull the plug-in fitting backwards and out. (2)
► Disconnect the hose from the plug-in fitting.
► Connect the hose to the plug-in fitting.
