Replacing Spare Parts
3.20.2 Fitting the Plug-in Fitting Plug-in Fitting
Service Manual SIPLACE Glue Feeder 81
► Insert the free end of the hose as far as possible into
the connection on the T-connector. (1)
► Insert the plug-in fitting through the hole in the
frame. (2)
► Use the outer nut to fasten the plug-in fitting to the
frame. Use 2 size 13 fork wrenches for this.
Use one to hold the nut on the inside of the frame, so
that this nut does not turn.
► Connect the silicon hose leading to the cartridge to its
plug-in fitting.
► Fasten the left side cover (see "3.7.2 Fitting the Left
Side Cover" [ ➙ 20].
Replacing Spare Parts
Coupler Plug 3.21.1 Removing the Coupler Plug
82 Service Manual SIPLACE Glue Feeder
3.21
3.21 Coupler Plug
Coupler Plug
Required spare parts
Coupler plug KK3P-06E, item no. 03093200-xx
Required tools
▪ 2x open-ended wrench, size 17
3.21.1
3.21.1 Removing the Coupler Plug
Removing the Coupler Plug
► Remove the right side cover (see "3.8.1 Removing
the Right Side Cover" [ ➙ 21])
► Carefully place the glue feeder down on its left side.
► Loosen the inner nut, fastening the coupler plug to
the frame. Use 2 size 17 fork wrenches for this.
Use one to hold the nut on the outside of the frame,
so that this nut does not turn.
► Open the lock on the plug-in connector for the sole
-
noid valve and pull out the hose.
Replacing Spare Parts
3.21.2 Fitting the Coupler Plug Coupler Plug
Service Manual SIPLACE Glue Feeder 83
3.21.2
3.21.2 Fitting the Coupler Plug
Fitting the Coupler Plug

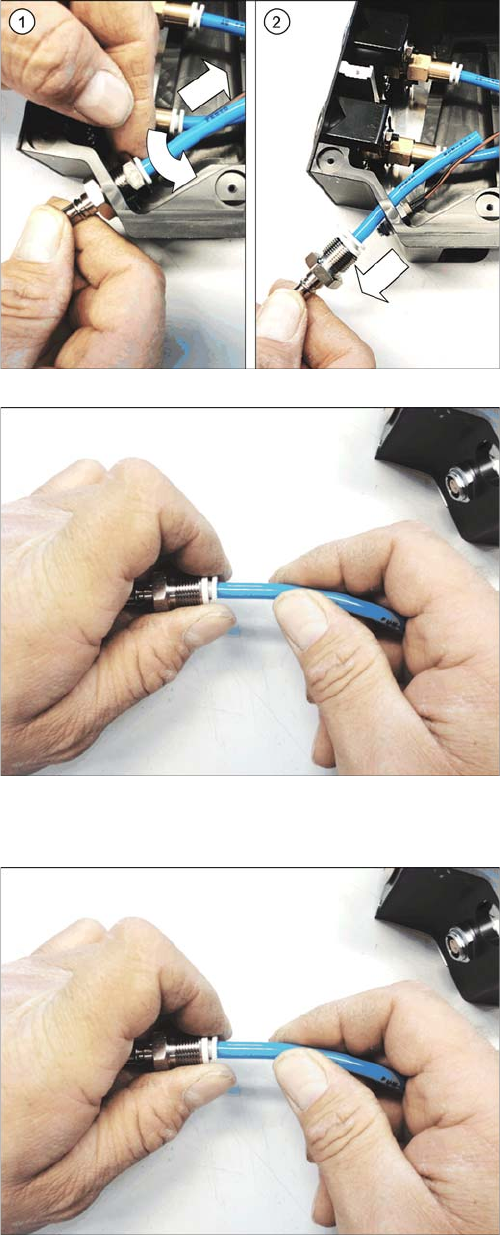

► Loosen the inner nut completely and pull this over the
hose and off. (1)
► Pull the coupler plug and hose out of the glue feeder
frame. (2)
► Open the lock on the coupler plug and pull out the
hose.
► Push the hose as far as possible into the lock on the
coupler plug.
