MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 8 Oct 06 Technical Reference Manual 7.19
M36SK01 (Camera Y Encoder - Linear Drive Machines Only)
M36SK02 (Camera Y Hall Sensors - Linear Drive Machines Only)
M36SK03 (Camera Y Motor Power - Linear Drive Machines Only)
Pin No. Signal Pin No. Signal
1 +5.5V 6 ! Index
2 Index 7 0V
3 ! CHB 8 CHB
4Chassis 9! CHA
5 CHA
Pin No. Signal Pin No. Signal
1 +5.5V 9 N/C
20V 10N/C
3Hall U - 11N/C
4Hall V + 12N/C
5Hall U + 13N/C
6Hall W - 14N/C
7Hall V - 15N/C
8Hall W +
Pin No. Signal Pin No. Signal
1 MTR Phase W 3 MTR Phase U
2MTR Phase V
9Way DType Socket
1
6
15 Way DType Socket
9
1
1
3
3Way Power D Type
Socket
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
7.20 Technical Reference Manual Chapter Issue 8 Oct 06

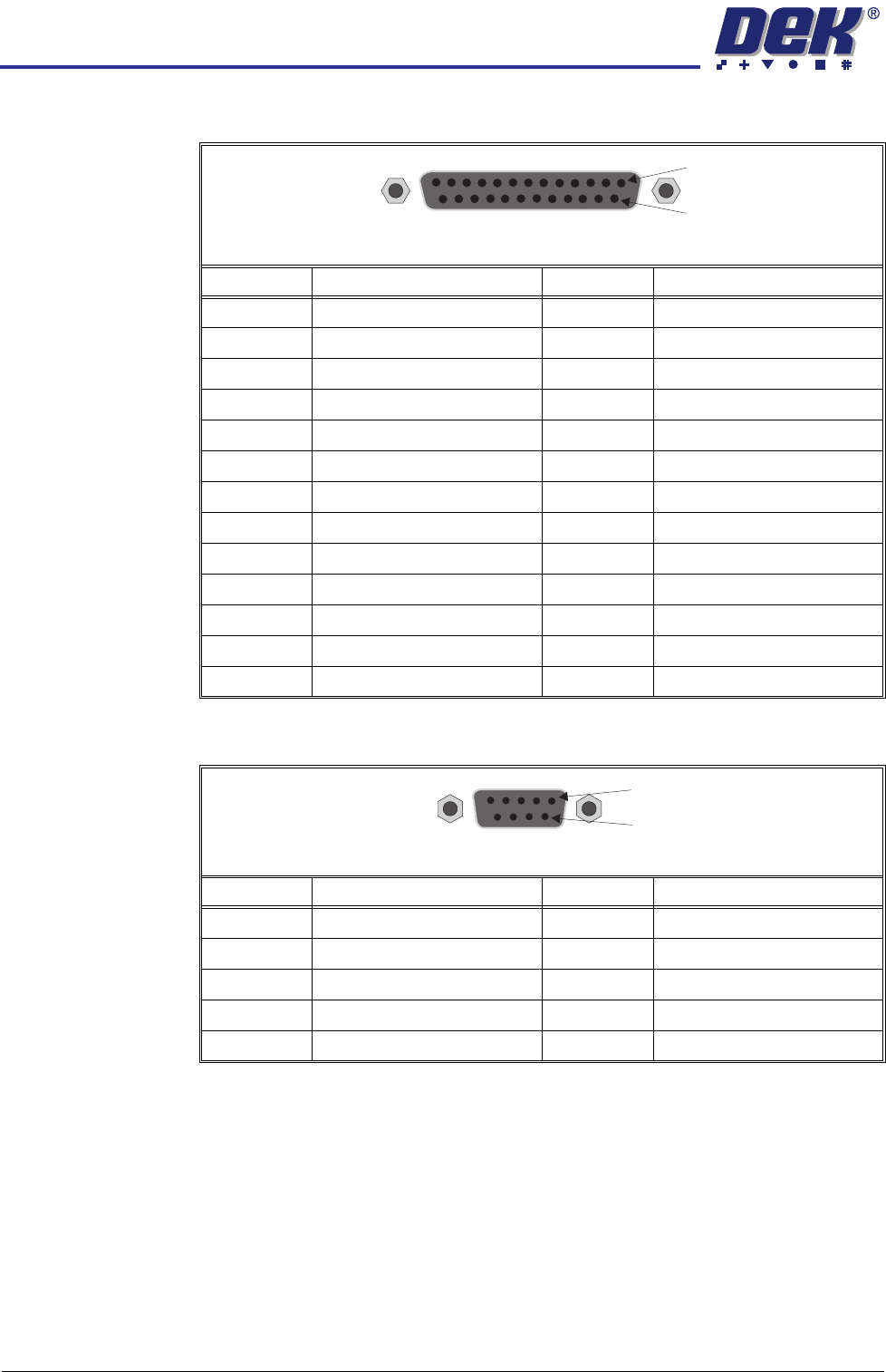

M36SK04 (FMI)
M36SK05 (Camera X Encoder - Linear Drive Machines Only)
Pin No. Signal Pin No. Signal
1N/C 14N/C
2 N/C 15 Send Upline
3N/C 16N/C
4N/C 17N/C
5 Board Pass I/P 18 Upline Ready
6 Send Downline 19 N/C
70V 20+24V US
8N/C 21N/C
9 Downline Ready 22 +12V
10 N/C 23 +24V SW
11 N/C 24 N/C
12 N/C 25 N/C
13 Board Pass O/P
Pin No. Signal Pin No. Signal
1 +5.5V 6 ! Index
2 Index 7 0V
3 ! CHB 8 CHB
4Chassis 9! CHA
5 CHA
25 Way DType Socket
14
1
9Way DType Socket
1
6
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 8 Oct 06 Technical Reference Manual 7.21

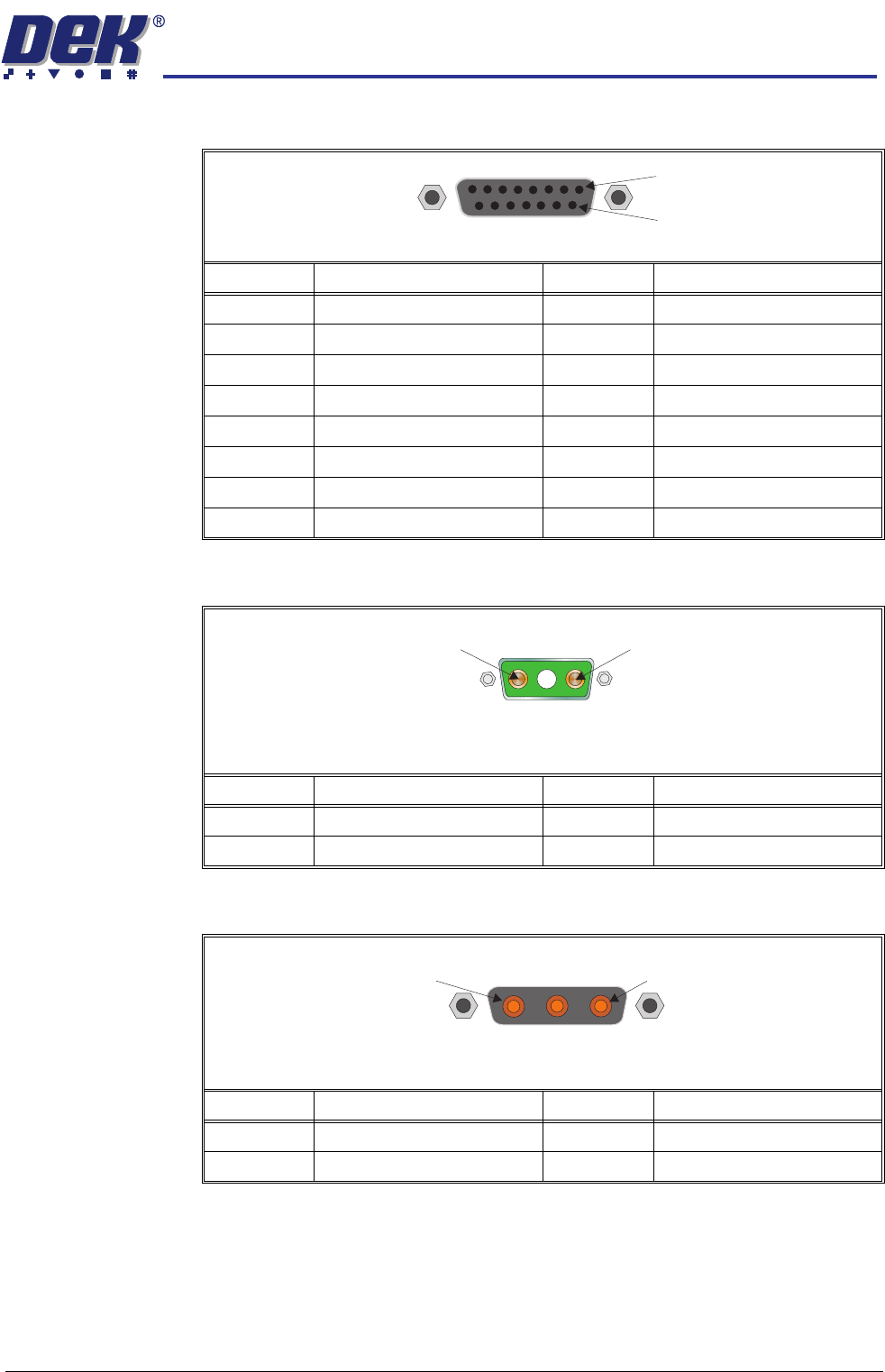

M36SK06 (Camera X Hall Sensors - Linear Drive Machines Only)
M36SK07 (Camera X Motor Power - Linear Drive Machines Only)
M36PL08 (Servo DC In - Linear Drive Machines Only)
Pin No. Signal Pin No. Signal
1 +5.5V 9 N/C
20V 10N/C
3Hall U - 11N/C
4Hall V + 12N/C
5Hall U + 13N/C
6Hall W - 14N/C
7Hall V - 15N/C
8Hall W +
Pin No. Signal Pin No. Signal
1 MTR Phase W 3 MTR Phase U
2MTR Phase V
Pin No. Signal Pin No. Signal
1 Servo DC Supply +V 3 N/C
2 Servo DC Supply 0V
15 Way DType Socket
9
1
1
3
3Way Power D Type
Socket
3Way Power
DType Plug
1
3
