MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 8 Oct 06 Technical Reference Manual 7.21
M36SK06 (Camera X Hall Sensors - Linear Drive Machines Only)
M36SK07 (Camera X Motor Power - Linear Drive Machines Only)
M36PL08 (Servo DC In - Linear Drive Machines Only)
Pin No. Signal Pin No. Signal
1 +5.5V 9 N/C
20V 10N/C
3Hall U - 11N/C
4Hall V + 12N/C
5Hall U + 13N/C
6Hall W - 14N/C
7Hall V - 15N/C
8Hall W +
Pin No. Signal Pin No. Signal
1 MTR Phase W 3 MTR Phase U
2MTR Phase V
Pin No. Signal Pin No. Signal
1 Servo DC Supply +V 3 N/C
2 Servo DC Supply 0V
15 Way DType Socket
9
1
1
3
3Way Power D Type
Socket
3Way Power
DType Plug
1
3
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
7.22 Technical Reference Manual Chapter Issue 8 Oct 06
M36SK09 (Analogue I/O 0)
M36SK10 (Analogue I/O 1)
Pin No. Signal Pin No. Signal
1 Solvent Level + 9 Chassis
2 Solvent Level - 10 0V
3AGND 11+12V
4AGND 12+12V
5 AOUT2 (Spare) 13 -12V
6 Chassis 14 -12V
7 Chassis 15 0V
8Chassis
Pin No. Signal Pin No. Signal
1 AN1+ (Spare) 9 Chassis
2 AN1- (Spare) 10 0V
3AGND 11+12V
4AGND 12+12V
5 Temperature Output to TCM 13 -12V
6 Chassis 14 -12V
7 Chassis 15 0V
8Chassis
15 Way Condensed
DType Socket
10
1
5
11
15 Way Condensed
DType Socket
10
1
5
11
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 8 Oct 06 Technical Reference Manual 7.23

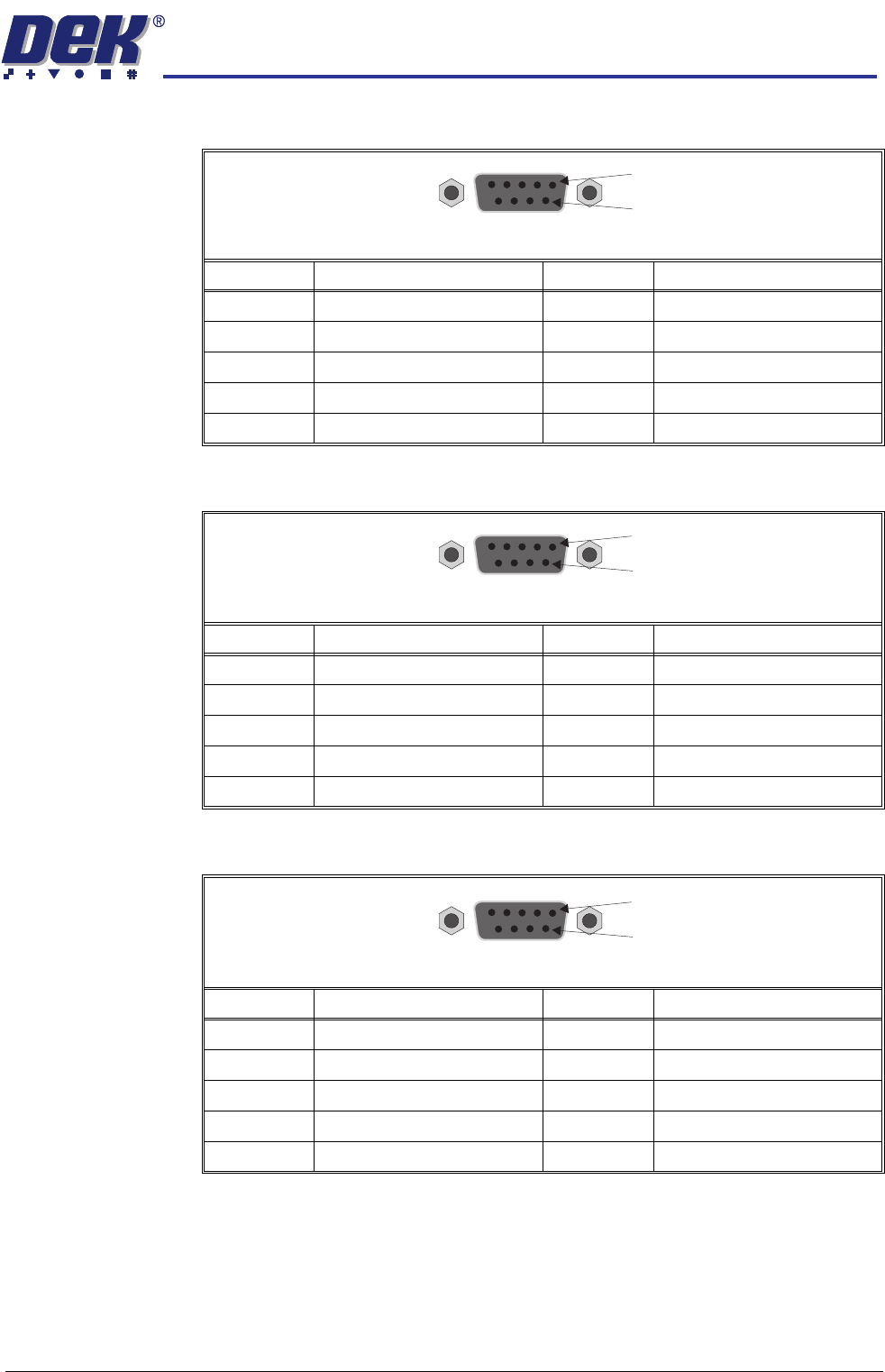

M36SK11 (Board Stop)
M36SK12 (Squeegees Home)
M36SK13 (Fans)
Pin No. Signal Pin No. Signal
1+12V 60V
2Board At Stop 7N/C
30V 8N/C
4+12V 9N/C
5 Board Stop Extended
Pin No. Signal Pin No. Signal
1+12V 60V
2 Front Squeegee Home 7 N/C
30V 8N/C
4+12V 9N/C
5 Rear Squeegee Home
Pin No. Signal Pin No. Signal
1N/C 60V Fan 3
2N/C 7+24V Fan 1
3 0V Fan 1 8 +24V Fan 2
4N/C 9+24V Fan 3
5 0V Fan 2
9Way DType Socket
1
6
9Way DType Socket
1
6
9Way DType Socket
1
6
