MACHI NE CONT ROL M36 MA CHINE CONTR OL EN CLOSUR E Chapter Issue 8 Oct 06 Technical Reference Manual 7.23 M36SK1 1 (Board S top) M36SK12 (Squeegees Home) M36SK13 (Fans) Pin No. Signal Pin No . Signal 1+ 1 2 V 60 V 2B o …
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
7.22 Technical Reference Manual Chapter Issue 8 Oct 06
M36SK09 (Analogue I/O 0)
M36SK10 (Analogue I/O 1)
Pin No. Signal Pin No. Signal
1 Solvent Level + 9 Chassis
2 Solvent Level - 10 0V
3AGND 11+12V
4AGND 12+12V
5 AOUT2 (Spare) 13 -12V
6 Chassis 14 -12V
7 Chassis 15 0V
8Chassis
Pin No. Signal Pin No. Signal
1 AN1+ (Spare) 9 Chassis
2 AN1- (Spare) 10 0V
3AGND 11+12V
4AGND 12+12V
5 Temperature Output to TCM 13 -12V
6 Chassis 14 -12V
7 Chassis 15 0V
8Chassis
15 Way Condensed
DType Socket
10
1
5
11
15 Way Condensed
DType Socket
10
1
5
11
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 8 Oct 06 Technical Reference Manual 7.23

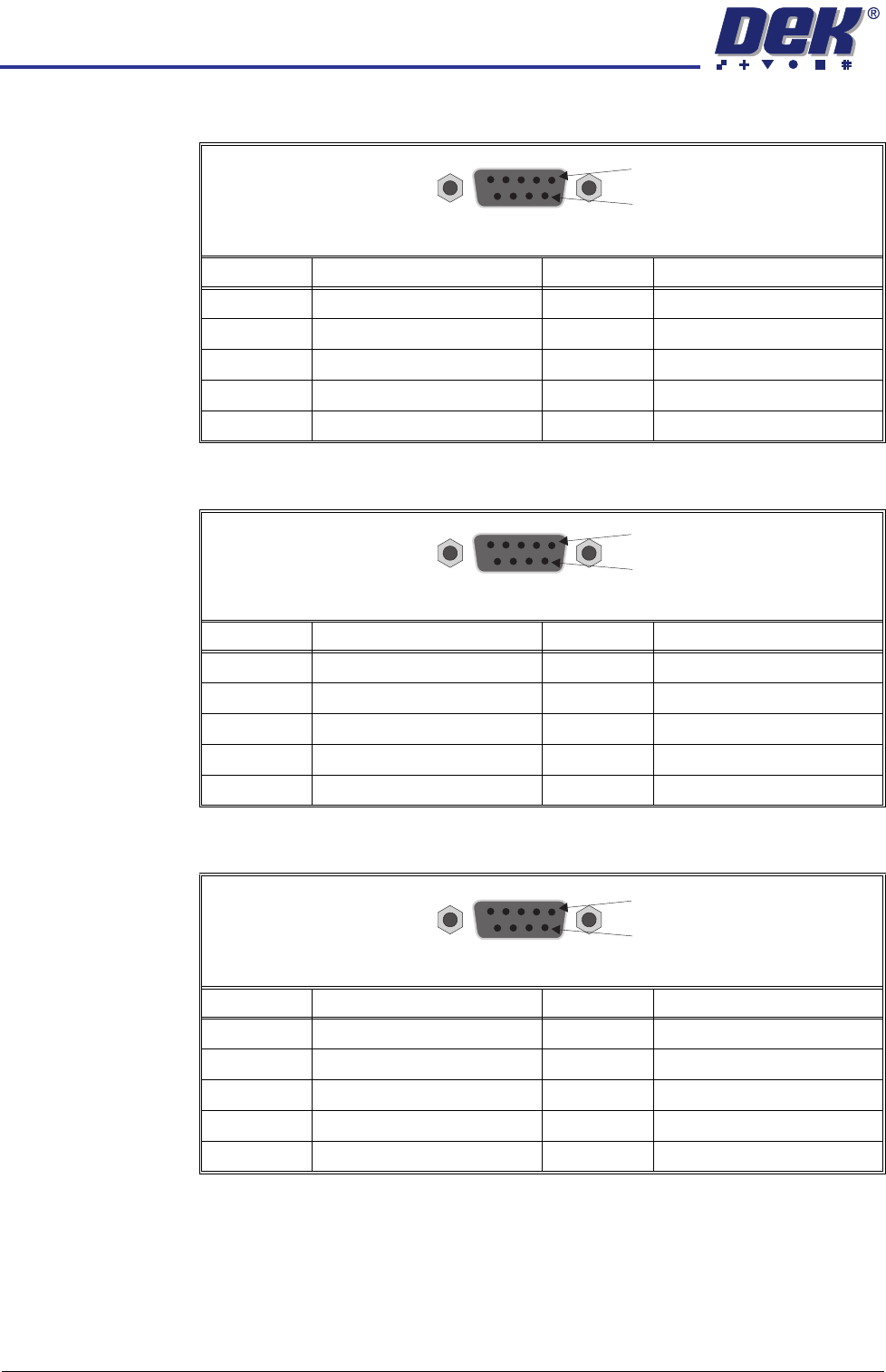

M36SK11 (Board Stop)
M36SK12 (Squeegees Home)
M36SK13 (Fans)
Pin No. Signal Pin No. Signal
1+12V 60V
2Board At Stop 7N/C
30V 8N/C
4+12V 9N/C
5 Board Stop Extended
Pin No. Signal Pin No. Signal
1+12V 60V
2 Front Squeegee Home 7 N/C
30V 8N/C
4+12V 9N/C
5 Rear Squeegee Home
Pin No. Signal Pin No. Signal
1N/C 60V Fan 3
2N/C 7+24V Fan 1
3 0V Fan 1 8 +24V Fan 2
4N/C 9+24V Fan 3
5 0V Fan 2
9Way DType Socket
1
6
9Way DType Socket
1
6
9Way DType Socket
1
6
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
7.24 Technical Reference Manual Chapter Issue 8 Oct 06
M36SK14 (Safety I/O)
M36SK15 (Camera X Home - Linear Drive Machines Only)
M36SK16 (Camera Trigger)
Pin No. Signal Pin No. Signal
1 N/C 6 Cover Interlock
2 Jog Left 7 E-Stop Loop Supply
3Jog Right 80V
4N/C 9N/C
5 Power ‘On’ Monitor
Pin No. Signal Pin No. Signal
1+12V 6N/C
2 Camera X Home 7 N/C
30V 8N/C
4N/C 9N/C
5N/C
Pin No. Signal Pin No. Signal
1 +12V 6 0V
2 Trigger 7 24V US
30V 8N/C
4N/C 9N/C
5N/C
9Way DType Socket
1
6
9Way DType Socket
1
6
9Way DType Socket
1
6
