MACHI NE CONT ROL M36 MACH INE CO NTROL E NCLOS URE 7.26 Technical Reference Manual Chapter Issue 8 O ct 06 M36SK19 (I/O Rear Right) M36SK20 (Low Current DC In) M36SK21 (Squeegee Motors) Pin No. Signal Pin No . Signal 1 …
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 8 Oct 06 Technical Reference Manual 7.25
M36SK17 (Rails Left)
M36SK18 (Rails Right)
Pin No. Signal Pin No. Signal
1+12V 90V
2 Board At Left 10 +12V
30V 11N/C
4+12V 120V
5 Board At Right 13 N/C
60V 14N/C
7+12V 15N/C
8 Rail Lifted Left
Pin No. Signal Pin No. Signal
1 +12V 9 Belt Motor #1 0V
2 Rail Lifted Right 10 N/C
3 0V 11 Belt Motor #4 Enable
4+12V 12N/C
5 Belt Motor #1 Enable 13 Belt Motor #4 24V SW
6 0V 14 Belt Motor #4 Direction
7 Belt Motor #1 24V SW 15 Belt Motor #4 0V
8 Belt Motor #1 Direction
15 Way DType Socket
9
1
15 Way DType Socket
9
1
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
7.26 Technical Reference Manual Chapter Issue 8 Oct 06
M36SK19 (I/O Rear Right)
M36SK20 (Low Current DC In)
M36SK21 (Squeegee Motors)
Pin No. Signal Pin No. Signal
1 +12V 9 0V
2 Spare Input 10 +12V
3 0V 11 Camera Y Home
(linear drive machines only)
4+12V 120V
5 Spare Input 13 N/C
6 0V 14 Spare Output
7+12V 150V
8 Moving Rail Home
Pin No. Signal Pin No. Signal
1 -12V 9 24V SW
2 -12V 10 24V SW
3 +5.5V 11 0V Return
4 +5.5V 12 0V Return
5 24V US 13 N/C
6 24V US 14 N/C
7 0V Return 15 N/C
80V Return
Pin No. Signal Pin No. Signal
1 CH1 B- 6 CH2 A-
2 CH2 B- 7 CH1 A+
3 CH1 B+ 8 CH2 A+
4 CH2 B+ 9 N/C
5 CH1 A-
15 Way DType Socket
9
1
15 Way DType Plug
1
9
9Way DType Socket
1
6
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 8 Oct 06 Technical Reference Manual 7.27

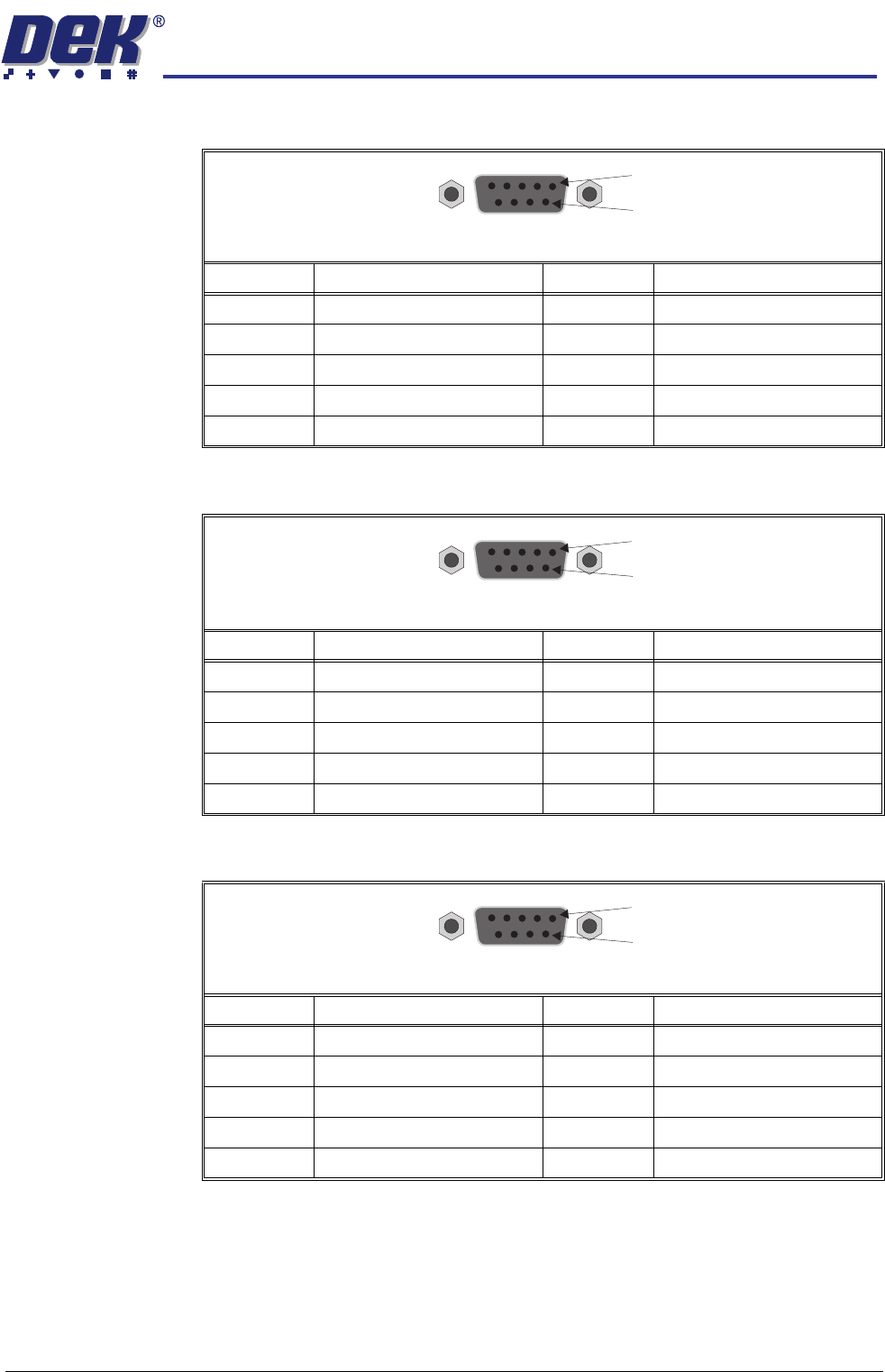

M36SK22 (Moving Rail Motor)
M36SK23 (X Forward Actuator)
M36SK24 (X Rear Actuator)
Pin No. Signal Pin No. Signal
1 CH2 B- 6 N/C
2N/C 7CH2 A+
3 CH2 B+ 8 N/C
4N/C 9N/C
5 CH2 A-
Pin No. Signal Pin No. Signal
1 CH1 B- 6 N/C
2N/C 7CH1 A+
3 CH1 B+ 8 N/C
4N/C 9N/C
5 CH1 A-
Pin No. Signal Pin No. Signal
1 CH2 B- 6 N/C
2N/C 7CH2 A+
3 CH2 B+ 8 N/C
4N/C 9N/C
5 CH2 A-
9Way DType Socket
1
6
9Way DType Socket
1
6
9Way DType Socket
1
6
