MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 8 Oct 06 Technical Reference Manual 7.27
M36SK22 (Moving Rail Motor)
M36SK23 (X Forward Actuator)
M36SK24 (X Rear Actuator)
Pin No. Signal Pin No. Signal
1 CH2 B- 6 N/C
2N/C 7CH2 A+
3 CH2 B+ 8 N/C
4N/C 9N/C
5 CH2 A-
Pin No. Signal Pin No. Signal
1 CH1 B- 6 N/C
2N/C 7CH1 A+
3 CH1 B+ 8 N/C
4N/C 9N/C
5 CH1 A-
Pin No. Signal Pin No. Signal
1 CH2 B- 6 N/C
2N/C 7CH2 A+
3 CH2 B+ 8 N/C
4N/C 9N/C
5 CH2 A-
9Way DType Socket
1
6
9Way DType Socket
1
6
9Way DType Socket
1
6
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
7.28 Technical Reference Manual Chapter Issue 8 Oct 06

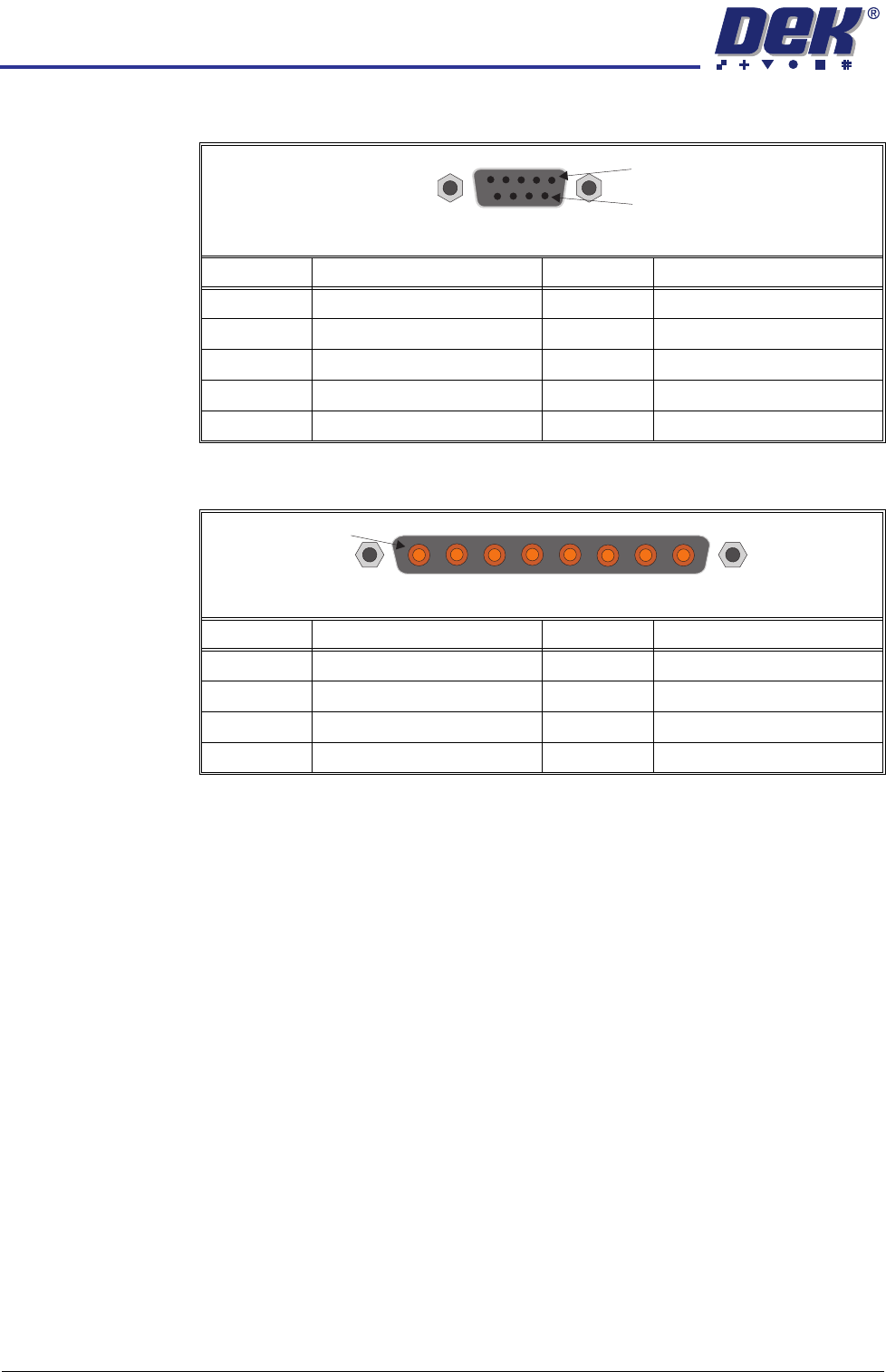

M36SK25 (Y Actuator)
M36PL26 (High Current DC In)
Pin No. Signal Pin No. Signal
1 CH1 B- 6 N/C
2N/C 7CH1 A+
3 CH1 B+ 8 N/C
4N/C 9N/C
5 CH1 A-
Pin No. Signal Pin No. Signal
1+12V 5+24V US
20V Return 60V Return
3 +24V SW (Belt Motors) 7 +24V SW (Stepper Motors)
40V Return 80V Return
9Way DType Socket
1
6
8Way Power D Type Plug
1
MACHINE CONTROL
CAN BUS
Chapter Issue 8 Oct 06 Technical Reference Manual 7.29
CAN BUS
The Controller Area Network (CAN) is a bus system for machine motion control.
An encoder/decoder for the 500Kbit/s rate CAN serial link is fitted to the
NextMove ES card to enable communication with the CAN Nodes. The CAN is
a 2-wire data link designed for transmission of small data packets for fast update
of axis position information.
The CAN Bus connects the NextMove ES card to the Nodes that provide
machine motion, switch functions and sensor feedback. There are two different
types of Nodes:
• I/O Node Boards
• Servo/Stepper Nodes
For the CAN Bus to work correctly, the CAN Bus must be terminated using a
CAN Terminator. The CAN Terminator is fitted to the output connector of the
last node in the CAN Bus line and consists of a 9 pin D type connector with a
link resistor fitted inside the connector hood.

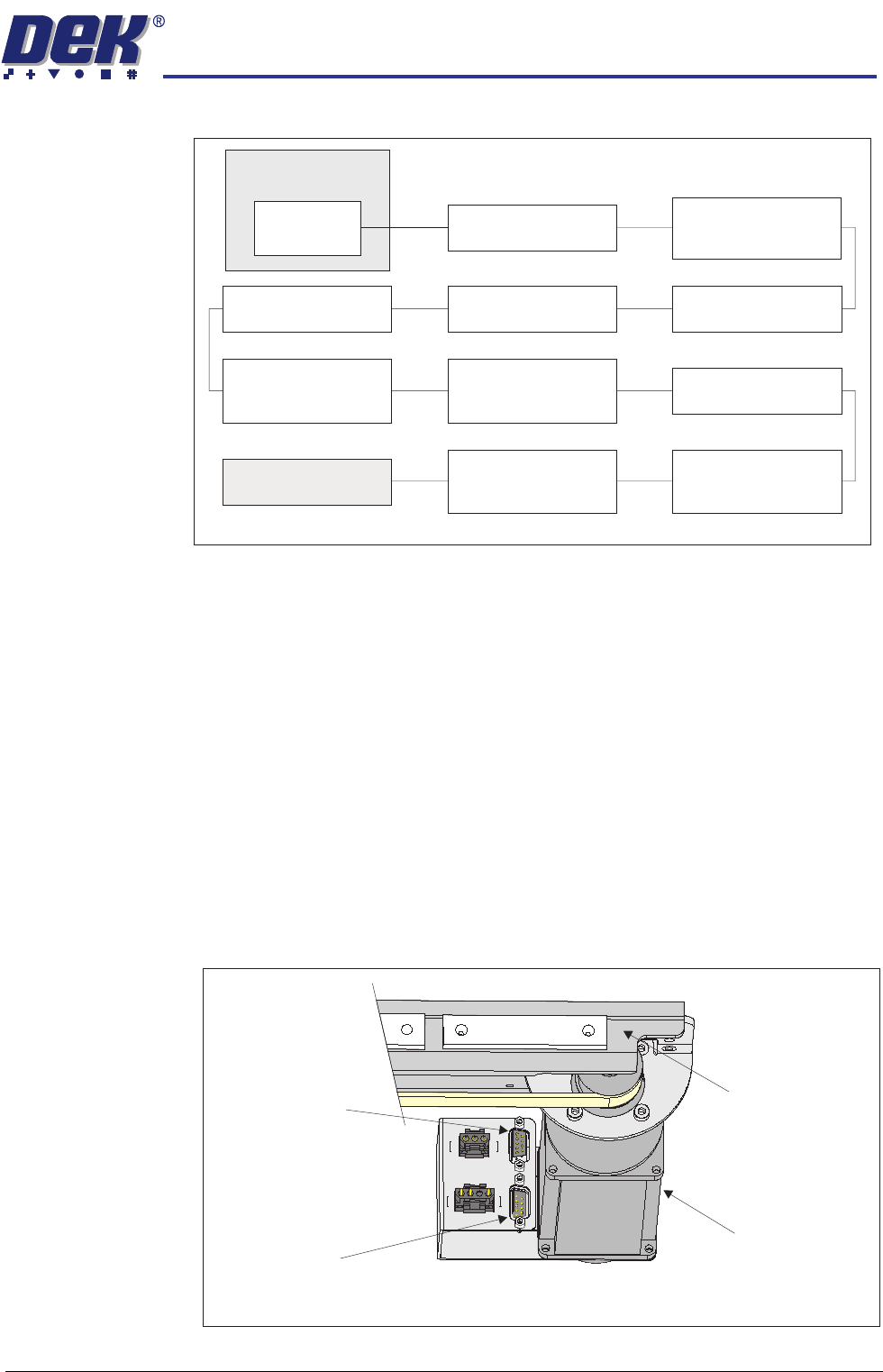

Figure 7-9 CAN Terminator Connection
M36 Machine
Control Enclosure
NextMove ES
(I/O Node 1)
CAN Terminator
Servo Node 6
(Rising Table Motor)
CAN Bus
Stepper Node 10
(Paste Dispense
Motor)
I/O Node 3 Board
(Print Carriage I/O)
Servo Node 7
(Print Carriage Motor)
I/O Node 2 Board
(Main Machine I/O)
I/O Node 4 Board
(Screen Cleaner I/O)
Servo Node 8
(Camera X Motor)
(Rotary Motors Only)
Servo Node 11
(Transport Mechanism)
(RTC Machine Only)
Stepper Node 12
(Rail Width Motor)
(RTC Machine Only)
Servo Node 9
(Camera Y Motor)
(Rotary Motors Only)
Camera X Motor
(Servo Node 8)
Camera CarriageConnector for
CAN Terminator
Connector for
CAN Bus Input
View on Front Right of Camera Carriage (Rotary Motors Only)
