MACHINE CONTROL
CAN BUS
Chapter Issue 8 Oct 06 Technical Reference Manual 7.31

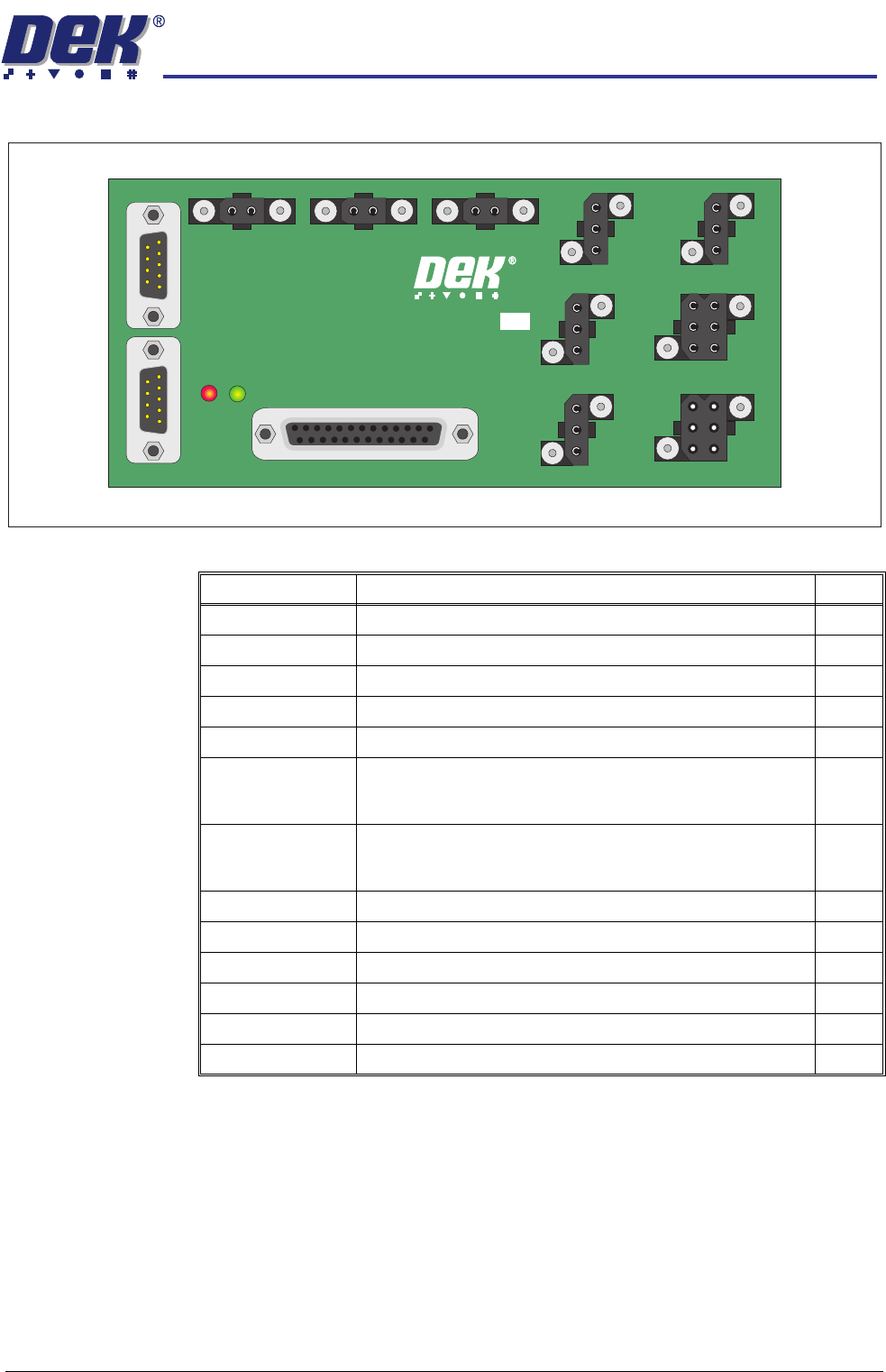

I/O Node 2 (Main Machine I/O)
N2PL3
N2PL1N2PL2
N2SK2 N2SK6 N2SK5 N2SK7 N2SK8
N2SK10N2SK4
MAIN I/O NODE 2
181436 ISSUE
N2SK9 N2SK3
Connector Description I/O
N2PL1 Power Input
N2PL2 CAN Signal In Input
N2PL3 CAN Signal Out Output
N2SK2 Vacuum Tooling Power/Grid-Lok Tooling Output
N2SK3 Tricolour Beacon Output
N2SK4
(Standard Machine)
Chase Clamps - Screen Clamps - Board Clamps - Board Stop
- Lid Bolt - Rail Board Stop - Cleaner Squeegee - Solvent Tank
Pressure
Output
N2SK4
(RTC machine)
Chase Clamps - Screen Clamps - Board Clamps - Rail Width
Clamp - Lid Bolt - Outroad Board Stop - Cleaner Squeegee -
Solvent Tank Pressure - Inroad Vane Lift
Output
N2SK5 Rising Table Brake Output
N2SK6 Internal Light Output
N2SK7 Air Pressure Sensor Input
N2SK8 Lid Bolt Extended Sensor Input
N2SK9 Vacuum Tooling Sensor Input
N2SK10 Screen Sensor Input
MACHINE CONTROL
CAN BUS
7.32 Technical Reference Manual Chapter Issue 8 Oct 06

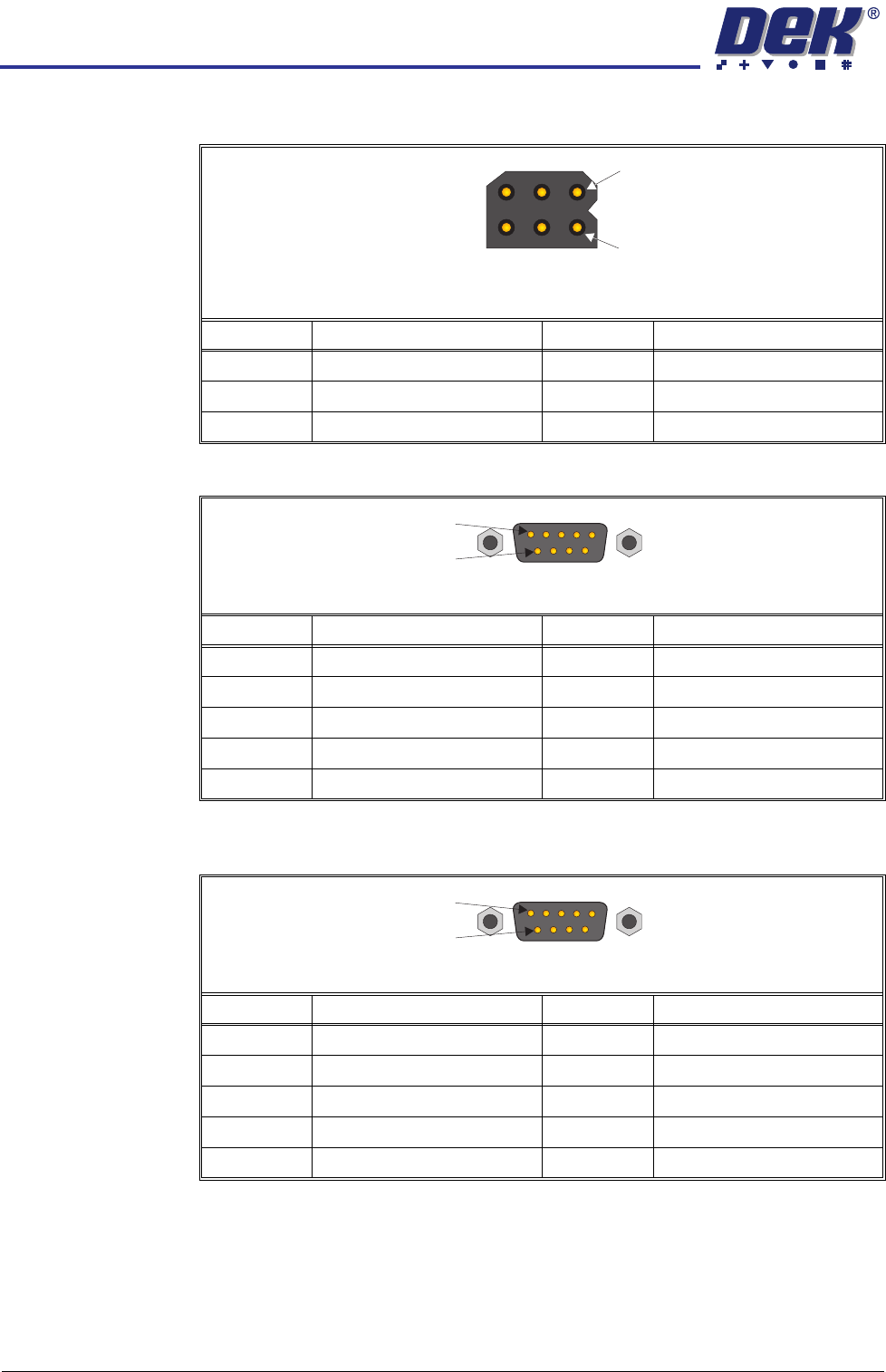

N2PL1
N2PL2
N2PL3
Pin No. Signal Pin No. Signal
124V US 40V
20V 512V
324V SW 60V
4
1
6Way Trident Connector
(with pins)
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9Way DType Plug
1
6
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9Way DType Plug
1
6
MACHINE CONTROL
CAN BUS
Chapter Issue 8 Oct 06 Technical Reference Manual 7.33

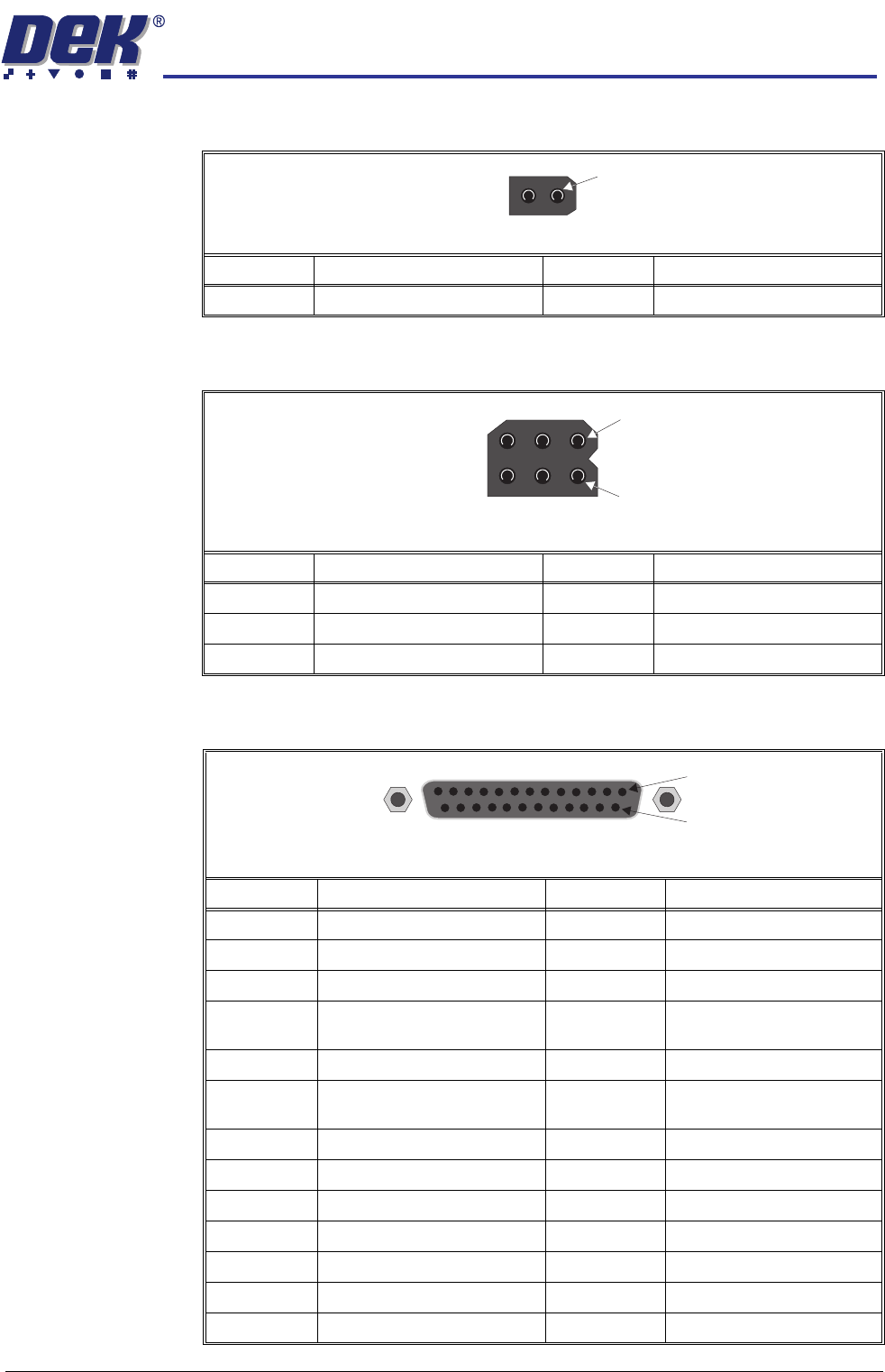

N2SK2
N2SK3
N2SK4
Pin No. Signal Pin No. Signal
1 Vacuum Tooling Power 2 0V
2Way Trident Connector
1
Pin No. Signal Pin No. Signal
1 Tricolour Beacon (Green) 4 Tricolour Beacon (Buzzer)
2 Tricolour Beacon (Amber) 5 0V
3 Tricolour Beacon (Red) 6 0V
4
1
6Way Trident Connector
Pin No. Signal Pin No. Signal
1 Chase Clamps 14 0V
2 Screen Clamps 15 0V
3 Board Clamps 16 0V
4 Board Stop/RTC Rail Width
Clamp
17 0V
5 Lid Bolt 18 0V
6 Rail Board Stop/RTC Outroad
Board Stop
19 0V
7 Solvent Tank Pressure 20 0V
80V 210V
9 Cleaner Squeegee 22 RTC Inroad Vane Lift
10 0V 23 0V
11 0V 24 0V
12 0V 25 0V
13 0V
25 Way DType Socket
14
1
