MACHINE CONTROL
CAN BUS
Chapter Issue 8 Oct 06 Technical Reference Manual 7.35

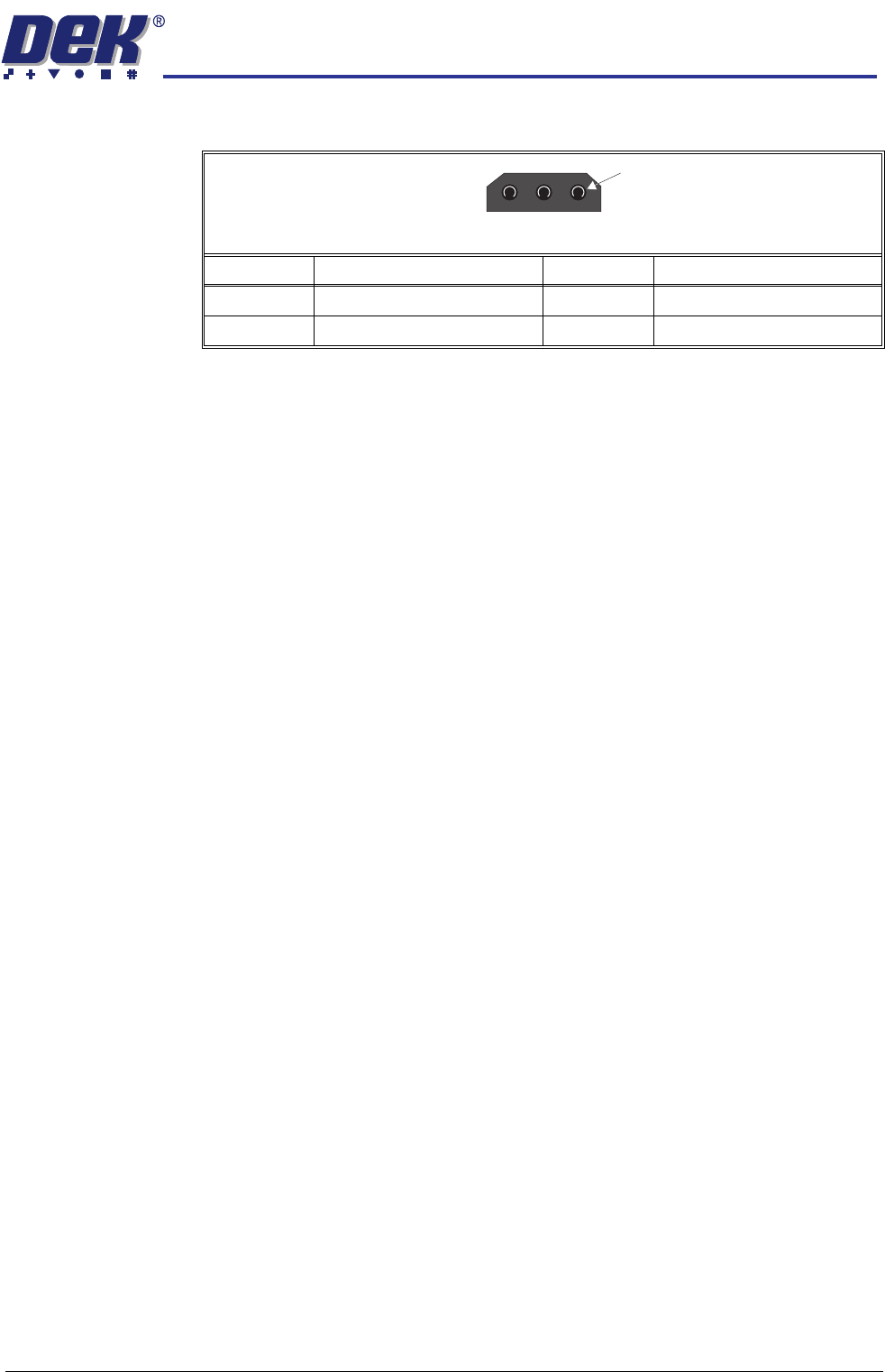

N2SK10
Pin No. Signal Pin No. Signal
1+12V 30V
2 Screen Sensor
1
3Way Trident Connector
MACHINE CONTROL
CAN BUS
7.36 Technical Reference Manual Chapter Issue 8 Oct 06
I/O Node 3 (Print Carriage I/O)

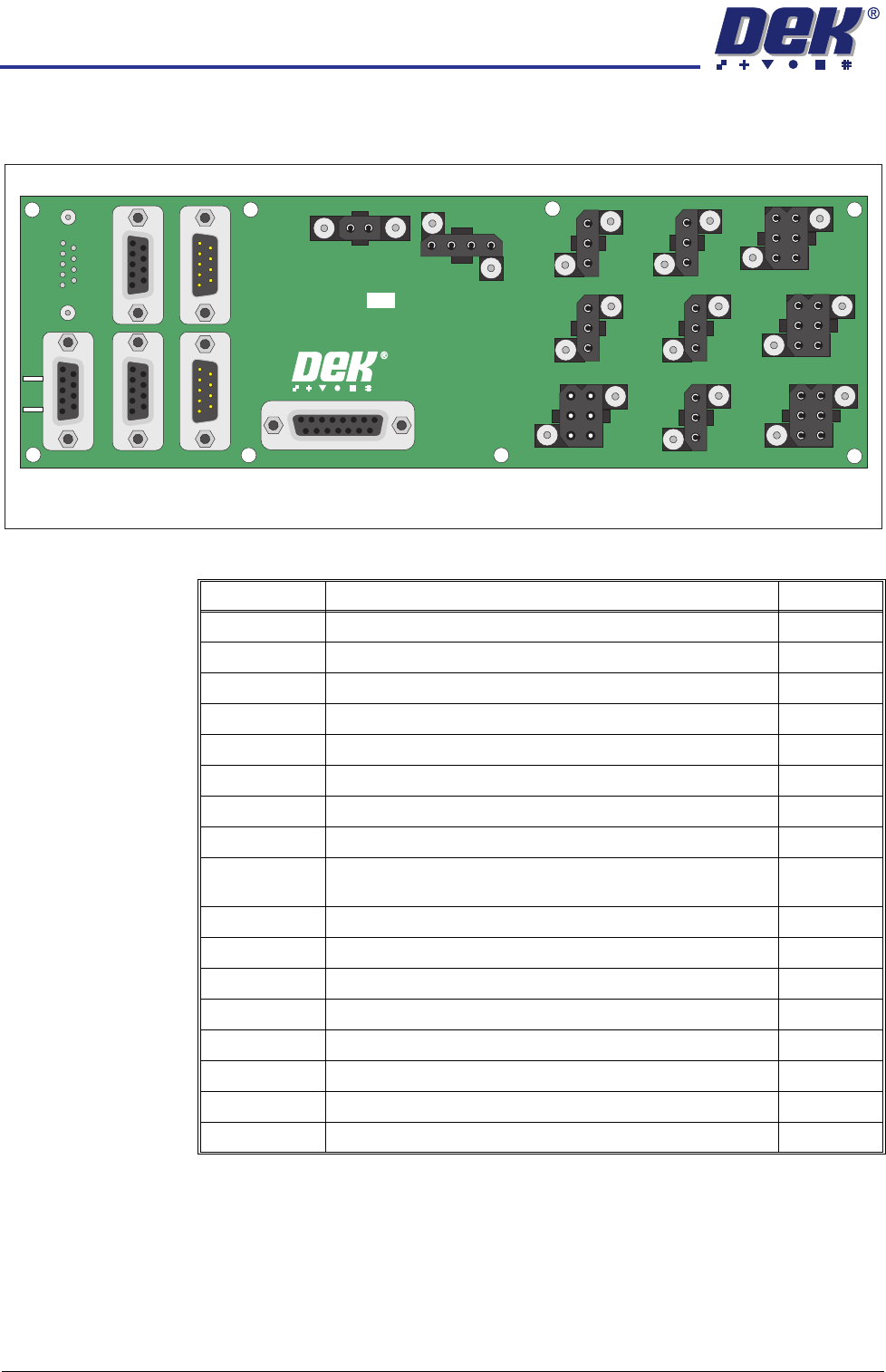

Figure 7-10 I/O Node Board 3 (Connector Side)
Connector Description I/O
N3PL1 Power Input
N3PL2 CAN Signal In Input
N3PL3 CAN Signal Out Output
N3SK1 Spare Output Output
N3SK4 Paste Height Laser - Paste Roll Low Input/Output
N3SK5 Screen Position Input
N3SK6 Spare Output Output
N3SK7 Screen Cylinder Extended & Retracted Sensors Input
N3SK8 ProFlow Paste Pressure - Paste Dispense Solenoid - Paste
Cartridge Tilt - Drip Tray Solenoid - Stencil Actuator
Output
N3SK9 Drip Tray Retracted Sensor Input
N3SK10 Cartridge Horizontal - Cartridge Vertical Input
N3SK11 Cartridge Empty/Paste Level Input
N3SK12 Spare Input Input
N3SK13 ProFlow Pressure Regulator Input/Output
N3SK14 Ball Escape (Ball Bumping only) Input
N3SK15 Temperature/Humidity (External Option) Input
N3SK17 ProFlow Input
NODE 3 PRINT CARRIAGE
181471 ISSUE
N3SK17
N3SK8
N3SK6 N3SK1 N3SK14
N3SK5 N3SK4
N3SK12 N3SK7
N3SK11 N3SK10N3PL2
N3PL1N3PL3N3SK15 N3SK13
N3SK9
View on Connector Side of Board
MACHINE CONTROL
CAN BUS
Chapter Issue 8 Oct 06 Technical Reference Manual 7.37

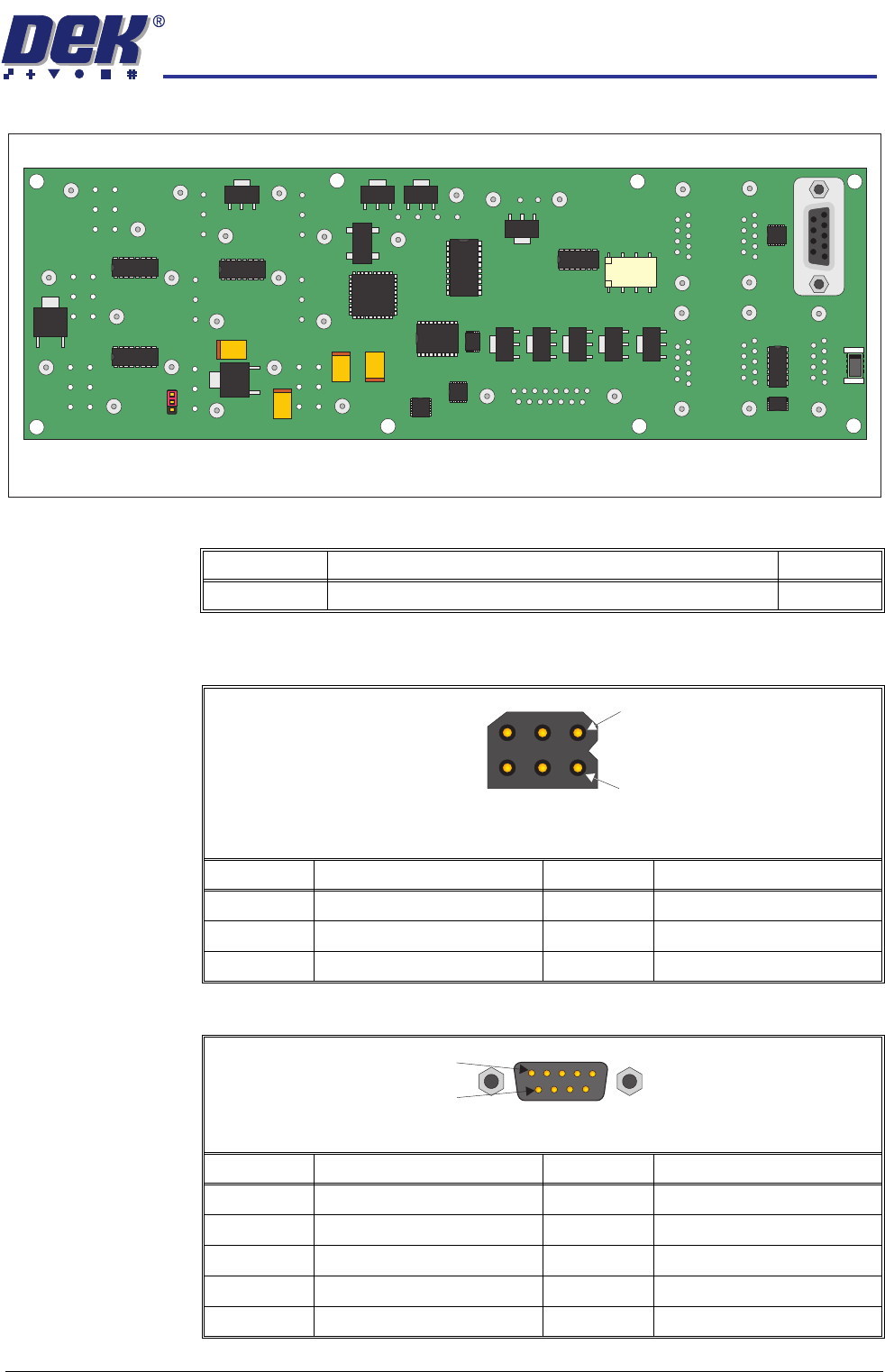

Figure 7-11 I/O Node Board 3 (Component Side)
N3PL1
N3PL2
Connector Description I/O
N3SK16 Squeegee Mechanism Input
View on Component Side of Board
N3SK16
3
Pin No. Signal Pin No. Signal
124V US 40V
20V 512V
324V SW 60V
4
1
6Way Trident Connector
(with pins)
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9Way DType Plug
1
6
