MACHI NE CONT ROL CAN BUS 7.38 Technical Reference Manual Chapter Issue 8 O ct 06 N3PL3 N3SK1 N3SK4 N3SK5 Pin No. Signal Pin No . Signal 1N / C 6N / C 2C A N _ L 7C A N _ H 3C A N _ G N D 8N / C 4N / C 9N / C 5N / C 9W a…
MACHINE CONTROL
CAN BUS
Chapter Issue 8 Oct 06 Technical Reference Manual 7.37
Figure 7-11 I/O Node Board 3 (Component Side)
N3PL1
N3PL2
Connector Description I/O
N3SK16 Squeegee Mechanism Input
View on Component Side of Board
N3SK16
3
Pin No. Signal Pin No. Signal
124V US 40V
20V 512V
324V SW 60V
4
1
6Way Trident Connector
(with pins)
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9Way DType Plug
1
6
MACHINE CONTROL
CAN BUS
7.38 Technical Reference Manual Chapter Issue 8 Oct 06
N3PL3
N3SK1
N3SK4
N3SK5
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9Way DType Plug
1
6
Pin No. Signal Pin No. Signal
1 Spare Output 3 Spare Output
20V 40V
1
4Way Trident Connector
Pin No. Signal Pin No. Signal
1 Paste Height Laser (12V) 4 Paste Height Laser (24V)
2 Paste Roll Low 5 N/C
30V 60V
4
1
6Way Trident Connector
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Screen Position
1
3Way Trident Connector
MACHINE CONTROL
CAN BUS
Chapter Issue 8 Oct 06 Technical Reference Manual 7.39

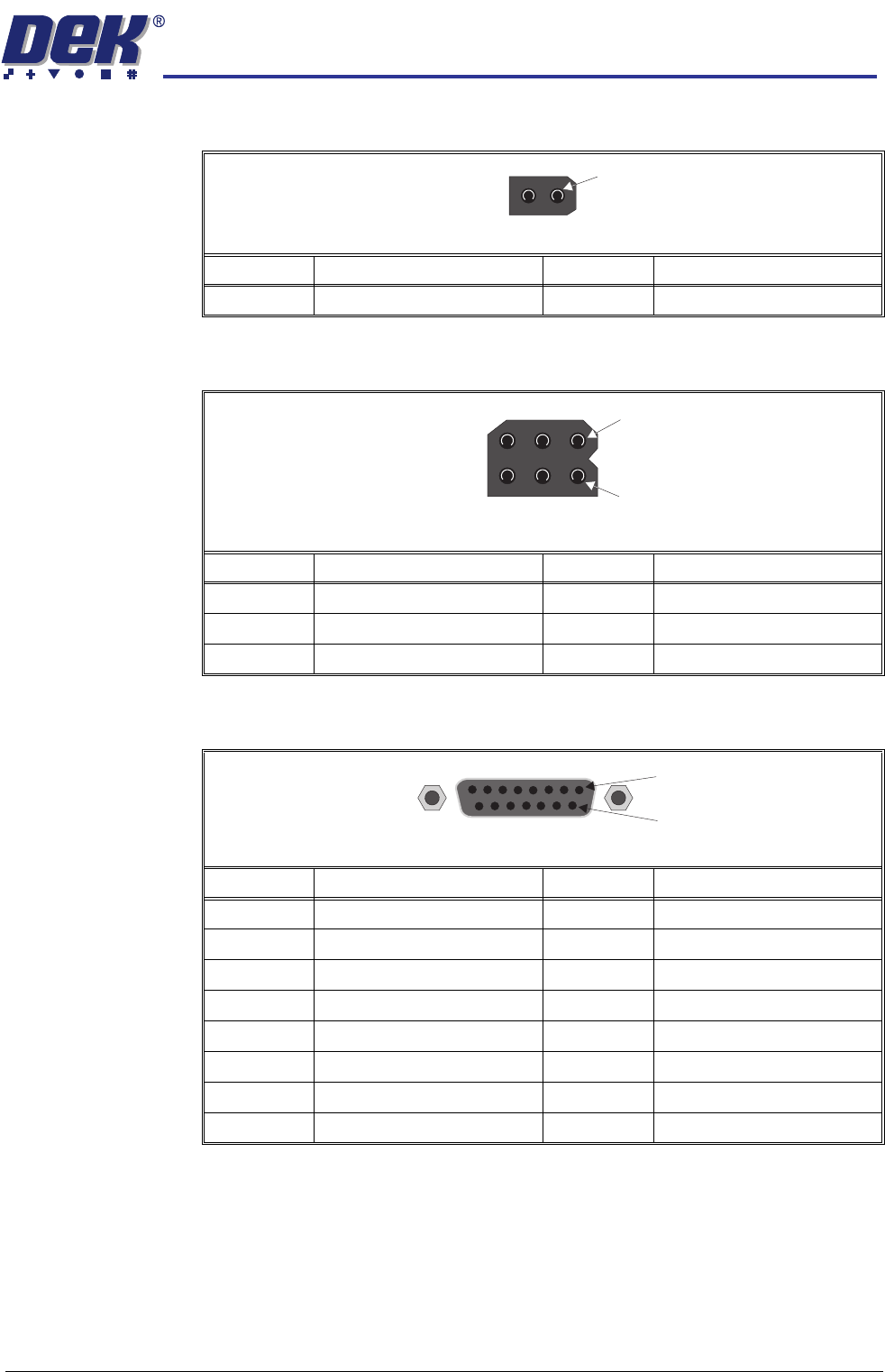

N3SK6
N3SK7
N3SK8
Pin No. Signal Pin No. Signal
1 Spare Output 2 0V
2Way Trident Connector
1
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Screen Cylinder Extended 5 Screen Cylinder Retracted
30V 60V
4
1
6Way Trident Connector
Pin No. Signal Pin No. Signal
1 ProFlow Paste Pressure 9 0V
2 Paste Dispense Solenoid 10 0V
3 Paste Cartridge Tilt 11 0V
4 Drip Tray Solenoid 12 0V
5 Stencil Actuator 13 0V
60V 140V
70V 150V
80V
15 Way DType Socket
9
1
