MACHI NE CONT ROL CAN BUS Chapter Issue 8 Oct 06 Technical Reference Manual 7.45 N4PL1 N4PL2 N4PL3 Pin No. Signal Pin No . Signal 12 4 V U S 40 V 20 V 51 2 V 32 4 V S W 60 V 4 1 6W a y Trident Connector (with pins) Pin N…
MACHINE CONTROL
CAN BUS
7.44 Technical Reference Manual Chapter Issue 8 Oct 06
I/O Node 4 (Screen Cleaner I/O)
Connector Description I/O
N4PL1 Power Input
N4PL2 CAN Signal In Input
N4PL3 CAN Signal Out Output
N4SK1 Paper Low/Paper Usage - Solvent Low Sensor Input
N4SK2 Cleaner Home Clamps Output
N4SK3 Solvent Pinch Valve - Paper Feed Motor/Vortex Motor Output
N4SK4 Cleaner Home Input
N4SK5 Solvent Pump (DUI) - Paper Feed Motor/Vortex Motor Output
N4SK6 Cleaner Vacuum Power Output
N4SK7 Cleaner Vacuum Sense Input
N4SK8 Levelness Screen Sensor - Levelness Cylinder Extended Input
N4SK9 Spare Output Output
N4SK10 Board Present - Product Sensor Input
N4SK11 Oscillating Motor Output
N4SK12 Spare Input Input
N4SK13 Cleaner Dropped Input
N4SK14 Spare Input Input
N3SK15 Spare Output Output
SCREEN CLEANER NODE 4
181479 ISSUE
N4PL3
N4PL1N4PL2
N4SK2 N4SK3
N4SK12N4SK14N4SK15N4SK11
N4SK5
N4SK6
N4SK9
N4SK13 N4SK8 N4SK10
N4SK7 N4SK1 N4SK4
MACHINE CONTROL
CAN BUS
Chapter Issue 8 Oct 06 Technical Reference Manual 7.45
N4PL1
N4PL2
N4PL3
Pin No. Signal Pin No. Signal
124V US 40V
20V 512V
324V SW 60V
4
1
6Way Trident Connector
(with pins)
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9Way DType Plug
1
6
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9Way DType Plug
1
6
MACHINE CONTROL
CAN BUS
7.46 Technical Reference Manual Chapter Issue 8 Oct 06

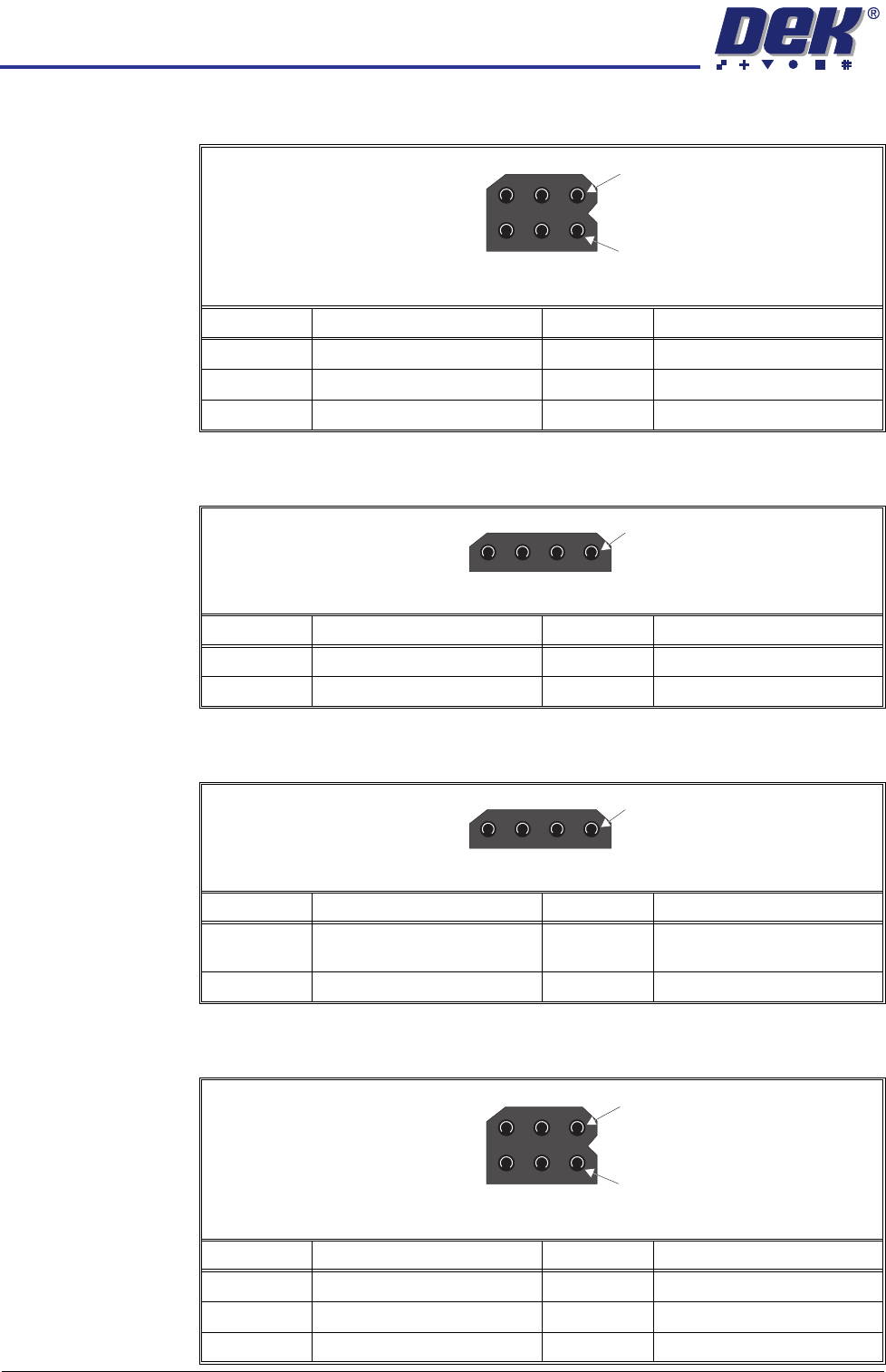

N4SK1
N4SK2
N4SK3
N4SK4
Pin No. Signal Pin No. Signal
1+12V 4+12V
2 Solvent Low Sensor 5 Paper Low/Paper Usage
30V 60V
4
1
6Way Trident Connector
Pin No. Signal Pin No. Signal
1 Cleaner Home Clamps 3 Cleaner Home Clamps
20V 40V
1
4Way Trident Connector
Pin No. Signal Pin No. Signal
1 Solvent Pinch Valve 3 Paper Feed Motor/Vortex
Motor
20V 40V
1
4Way Trident Connector
Pin No. Signal Pin No. Signal
1+12V 4+12V
2 Cleaner Home 5 Cleaner Home
30V 60V
4
1
6Way Trident Connector
