MACHI NE CONT ROL CAN BUS 7.48 Technical Reference Manual Chapter Issue 8 O ct 06 N4SK9 N4SK10 N4SK1 1 N4SK12 Pin No. Signal Pin No . Signal 1 S pare Output 3 S pare Output 20 V 40 V 1 4W a y Trident Connector Pin No. Si…

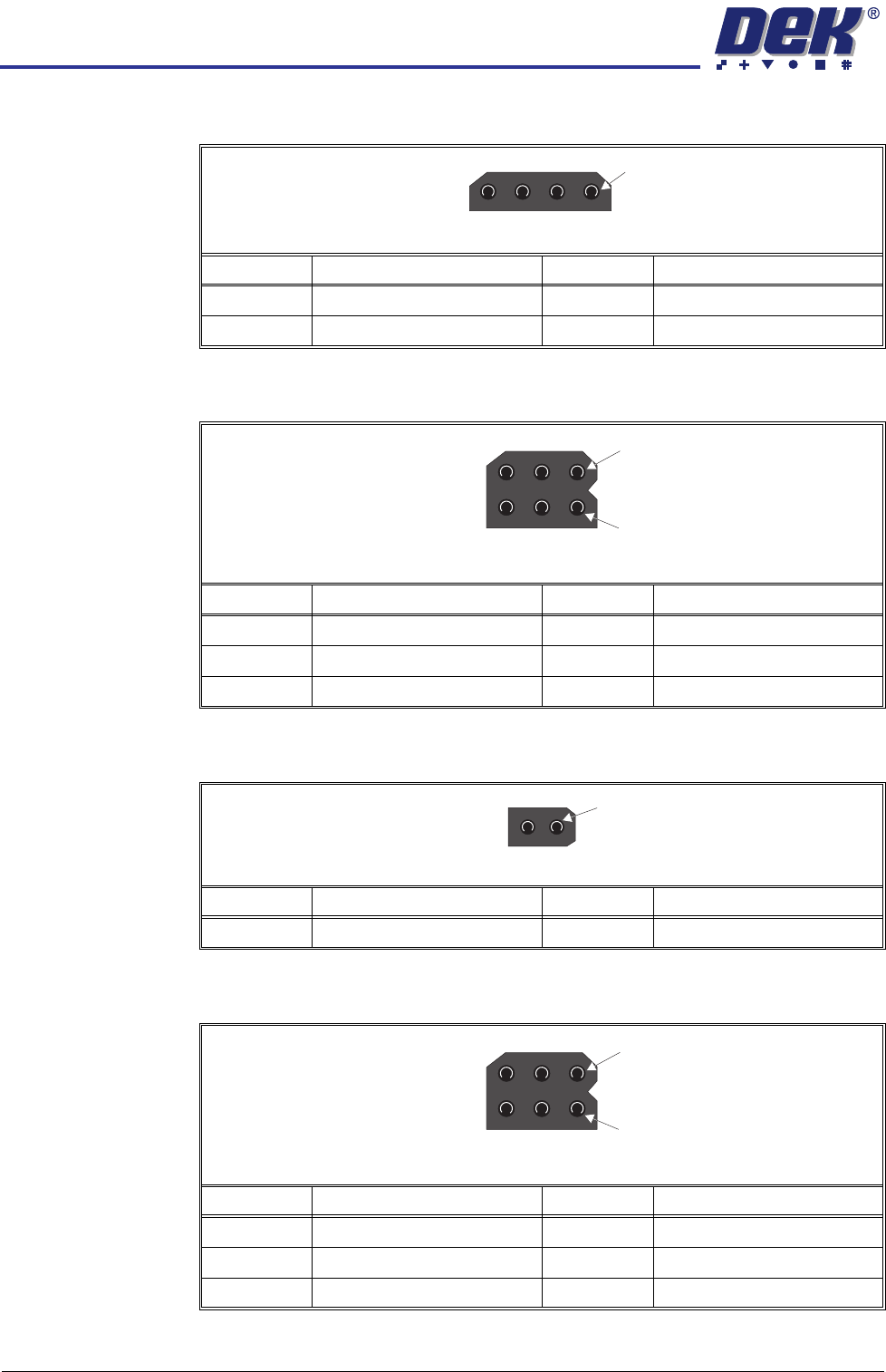

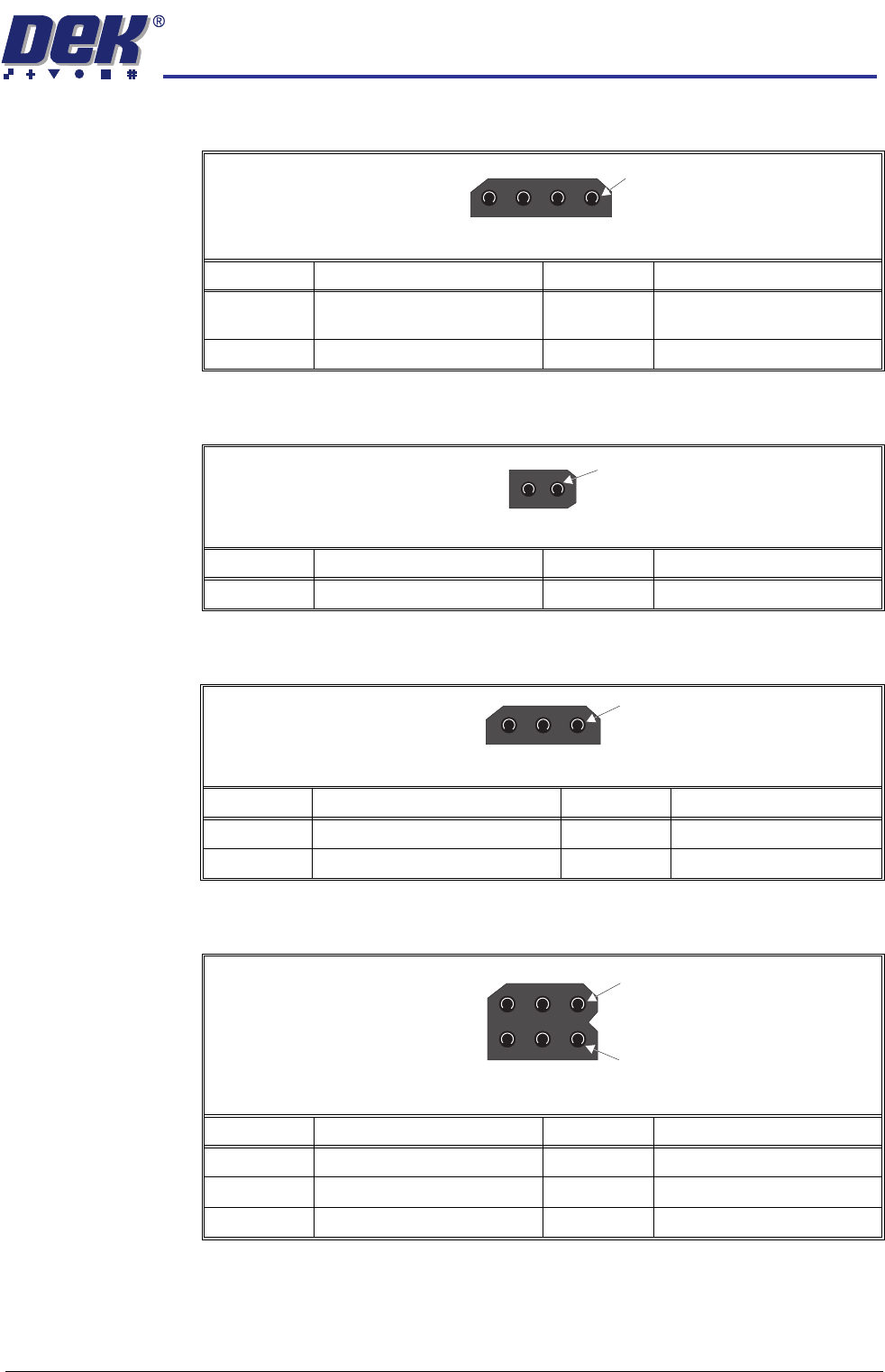

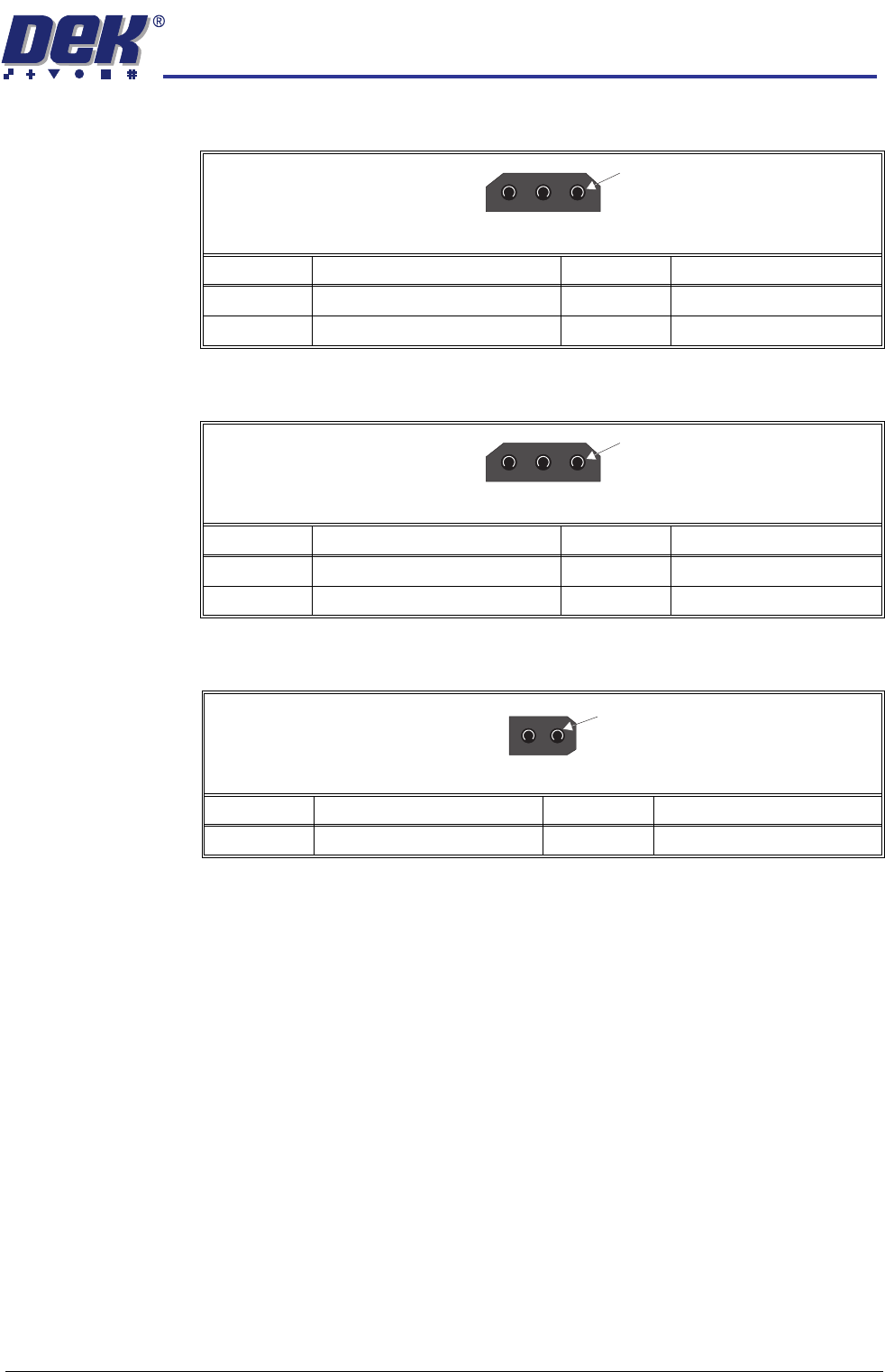

MACHINE CONTROL
CAN BUS
Chapter Issue 8 Oct 06 Technical Reference Manual 7.47
N4SK5
N4SK6
N4SK7
N4SK8
Pin No. Signal Pin No. Signal
1 Solvent Pump (DUI) 3 Paper Feed Motor/Vortex
Motor
20V 40V
1
4Way Trident Connector
Pin No. Signal Pin No. Signal
1 Cleaner Vacuum Power 2 0V
2Way Trident Connector
1
Pin No. Signal Pin No. Signal
1+12V 30V
2 Cleaner Vacuum Sense
1
3Way Trident Connector
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Levelness Screen Sensor 5 Levelness Cylinder Extended
30V 60V
4
1
6Way Trident Connector
MACHINE CONTROL
CAN BUS
7.48 Technical Reference Manual Chapter Issue 8 Oct 06
N4SK9
N4SK10
N4SK11
N4SK12
Pin No. Signal Pin No. Signal
1 Spare Output 3 Spare Output
20V 40V
1
4Way Trident Connector
Pin No. Signal Pin No. Signal
1+12V 4+12V
2 Board Present 5 Product Sensor
30V 60V
4
1
6Way Trident Connector
Pin No. Signal Pin No. Signal
1 Oscillating Motor 2 0V
2Way Trident Connector
1
Pin No. Signal Pin No. Signal
1+12V 4+12V
2 Spare Input 5 Spare Input
30V 60V
4
1
6Way Trident Connector
MACHINE CONTROL
CAN BUS
Chapter Issue 8 Oct 06 Technical Reference Manual 7.49
N4SK13
N4SK14
N4SK15
Pin No. Signal Pin No. Signal
1+12V 30V
2 Cleaner Dropped
1
3Way Trident Connector
Pin No. Signal Pin No. Signal
1+12V 30V
2 Spare Input
1
3Way Trident Connector
Pin No. Signal Pin No. Signal
1 Spare Output 2 0V
2Way Trident Connector
1
