MACHINE CONTROL
CAN BUS
7.40 Technical Reference Manual Chapter Issue 3 Jan 08
N3SK13
N3SK14
N3SK15
Pin No. Signal Pin No. Signal
1 24V US 6 ProFlow Pressure Demand
2 0V 7 24V US
3 Spare Output 8 0V
4 12V 9 ProFlow Pressure Monitor
50V
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Ball Escape (Ball Bumping only)
1
3 Way Trident Connector
Pin No. Signal Pin No. Signal
1 I DAT 6 5.5V
20V 7I CLOCK
3DAT_INT 8IO_B
4 VPP 9 0V
5 IO_C
9 Way D Type Socket
1
6
MACHINE CONTROL
CAN BUS
Chapter Issue 3 Jan 08 Technical Reference Manual 7.41
N3SK16
N3SK17
Pin No. Signal Pin No. Signal
10V 6N/C
2N/C 7Bridge O/P +
3N/C 8Bridge O/P -
4N/C 9N/C
5 +4.1V
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1 +12V 6 0V
2 0V 7 ProFlow Cassette Low
3 Paste Level 8 0V
4 +12V 9 +12V
5 ProFlow Fitted
9 Way D Type Socket
1
6
MACHINE CONTROL
CAN BUS
7.42 Technical Reference Manual Chapter Issue 3 Jan 08

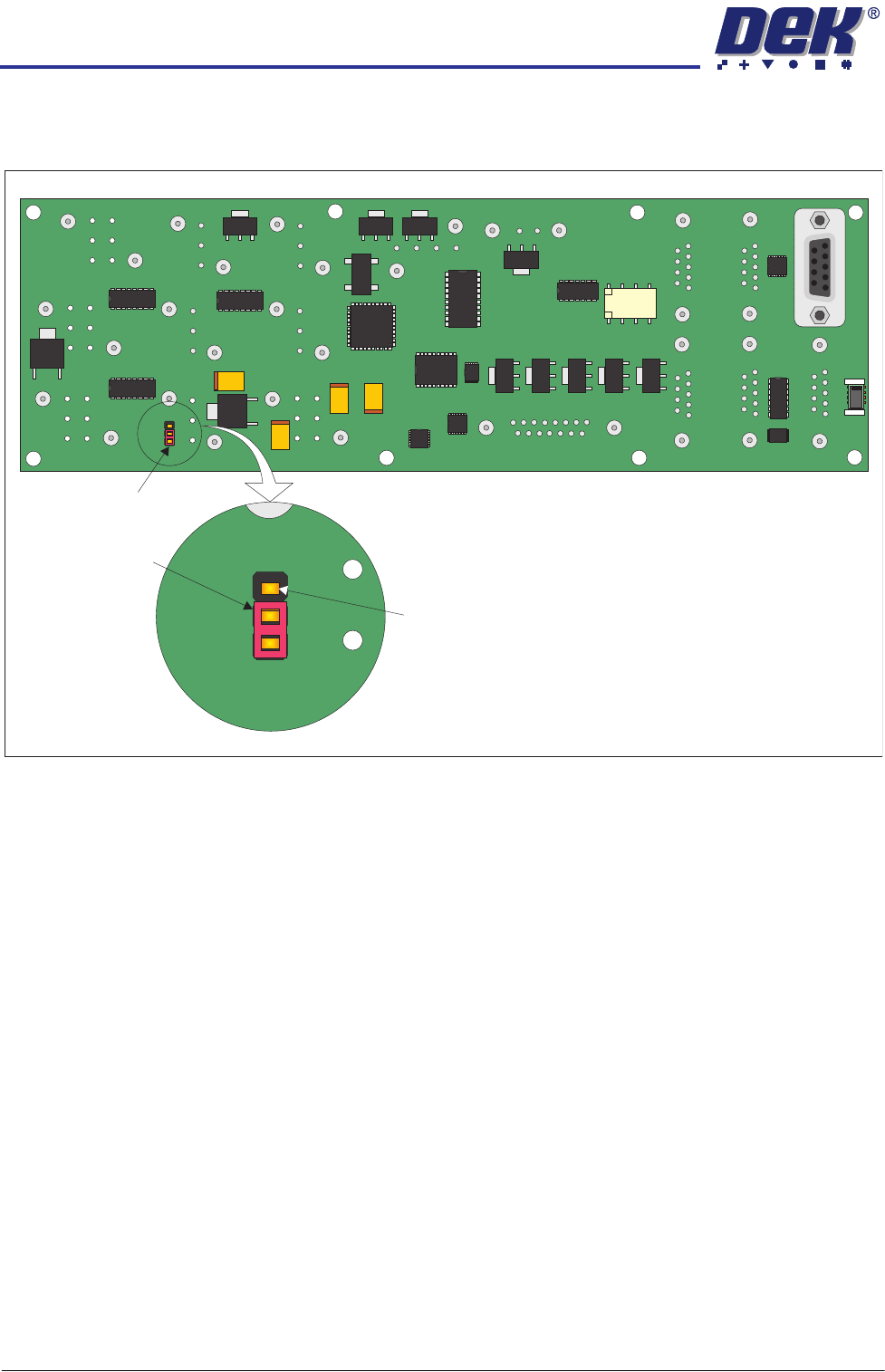

Link (LK1) The link LK1 on the component side of I/O node board 3 must be set across
Pins 2 & 3.
3
View on Component Side of Board
N3SK16
Link (LK1)
3
Jumper
Pin 1
