MACHINE CONTROL CAN BUS 7.42 Technical Reference Manu al Chapter Issue 3 Jan 08 Link (LK1) The link LK1 on the component side of I/O node board 3 must be set across Pins 2 & 3. 3 View on Component Side of Board N3SK1…
MACHINE CONTROL
CAN BUS
Chapter Issue 3 Jan 08 Technical Reference Manual 7.41
N3SK16
N3SK17
Pin No. Signal Pin No. Signal
10V 6N/C
2N/C 7Bridge O/P +
3N/C 8Bridge O/P -
4N/C 9N/C
5 +4.1V
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1 +12V 6 0V
2 0V 7 ProFlow Cassette Low
3 Paste Level 8 0V
4 +12V 9 +12V
5 ProFlow Fitted
9 Way D Type Socket
1
6
MACHINE CONTROL
CAN BUS
7.42 Technical Reference Manual Chapter Issue 3 Jan 08
Link (LK1) The link LK1 on the component side of I/O node board 3 must be set across
Pins 2 & 3.
3
View on Component Side of Board
N3SK16
Link (LK1)
3
Jumper
Pin 1
MACHINE CONTROL
CAN BUS
Chapter Issue 3 Jan 08 Technical Reference Manual 7.43
I/O Node 4 (Screen Cleaner I/O)
Connector Description I/O
N4PL1 Power Input
N4PL2 CAN Signal In Input
N4PL3 CAN Signal Out Output
N4SK1 Paper Low/Paper Usage - Solvent Low Sensor Input
N4SK2 Cleaner Home Clamps Output
N4SK3 Solvent Pinch Valve - Paper Feed Motor/Vortex Motor Output
N4SK4 Cleaner Home Input
N4SK5 Solvent Pump (DUI) - Paper Feed Motor/Vortex Motor Output
N4SK6 Cleaner Vacuum Power Output
N4SK7 Cleaner Vacuum Sense Input
N4SK8 Levelness Screen Sensor - Levelness Cylinder Extended Input
N4SK9 Spare Output Output
N4SK10 Board Present - Product Sensor Input
N4SK11 Oscillating Motor Output
N4SK12 Cleaner Dropped Sensor Input
N4SK13 Spare Input Input
N4SK14 Spare Input Input
N4SK15 Cleaner Camera Clamps Output

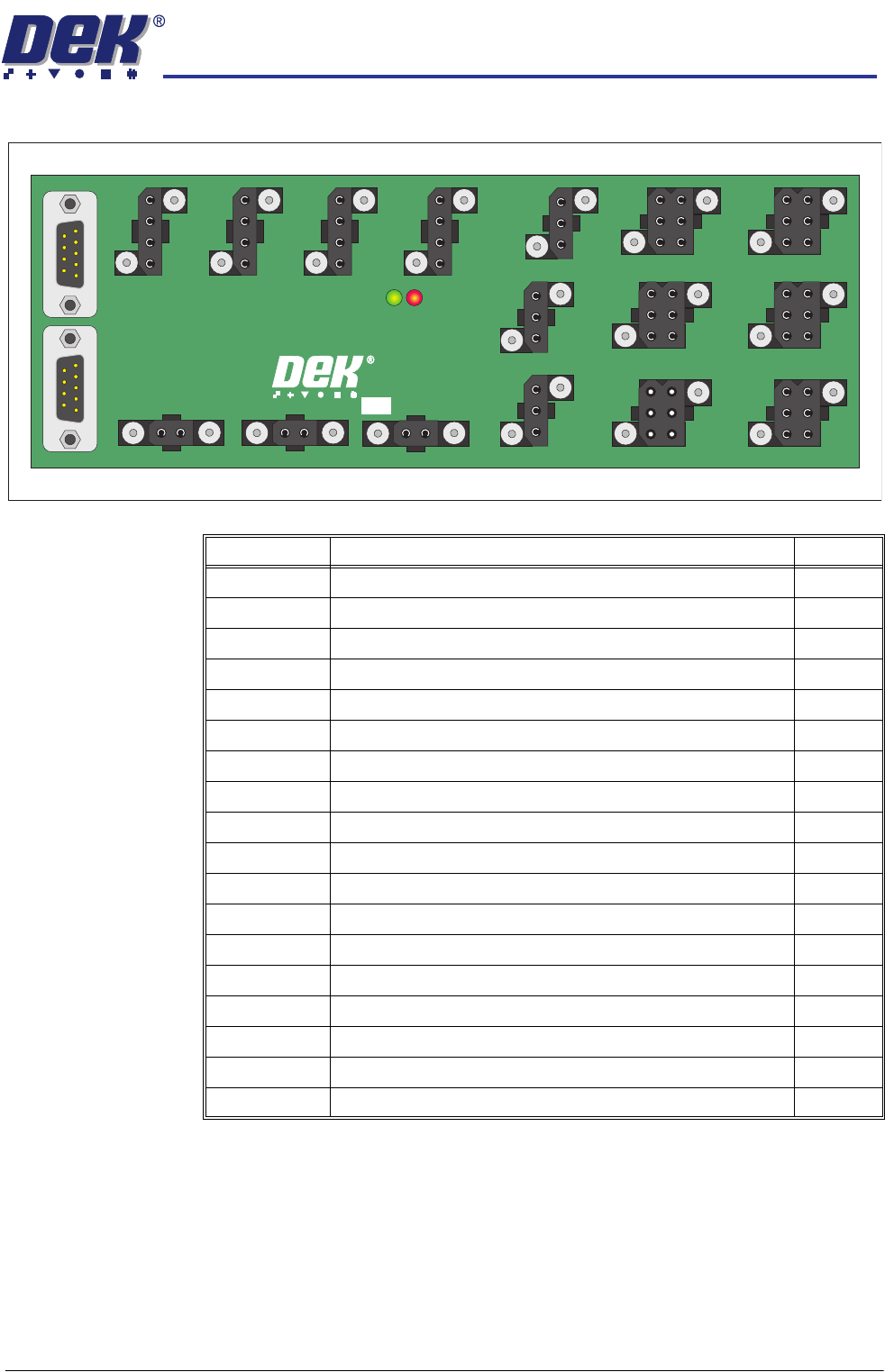

SCREEN CLEANER NODE 4
181479 ISSUE
N4PL3
N4PL1N4PL2
N4SK2 N4SK3
N4SK12N4SK14N4SK15N4SK11
N4SK5
N4SK6
N4SK9
N4SK13 N4SK8 N4SK10
N4SK7 N4SK1 N4SK4
