MACHINE CONTROL CAN BUS 7.46 Technical Reference Manu al Chapter Issue 3 Jan 08 N4SK5 N4SK6 N4SK7 N4SK8 Pin No. Signal Pin No. Signal 1 Solvent Pump (DUI) 3 P aper Feed Motor/V ortex Motor 20 V 40 V 1 4 W ay T rident Con…

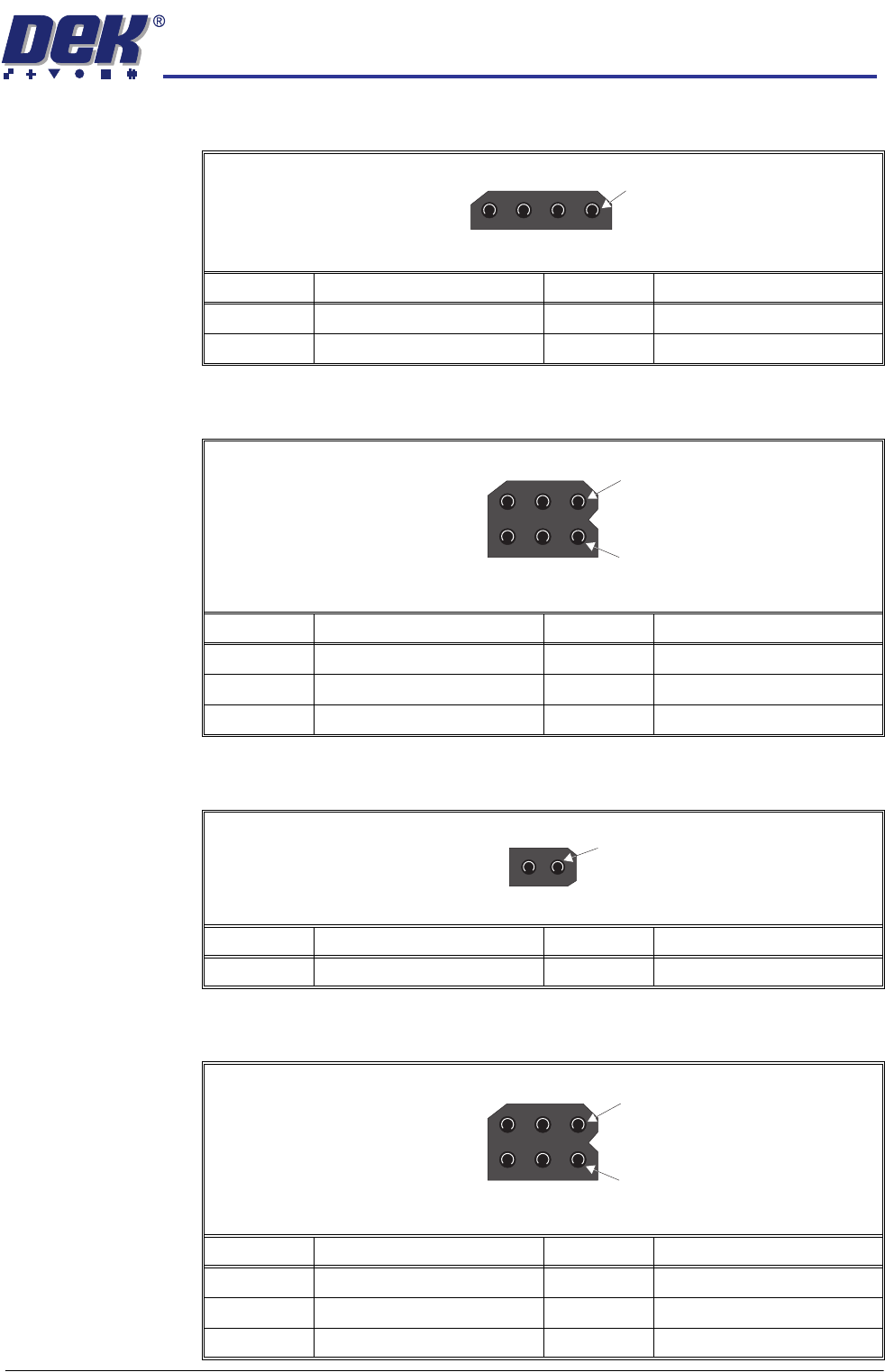

MACHINE CONTROL
CAN BUS
Chapter Issue 3 Jan 08 Technical Reference Manual 7.45
N4SK1
N4SK2
N4SK3
N4SK4
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Solvent Low Sensor 5 Paper Low/Paper Usage
30V 60V
4
1
6 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Cleaner Home Clamps 3 Cleaner Home Clamps
20V 40V
1
4 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Solvent Pinch Valve 3 Paper Feed Motor/Vortex
Motor
20V 40V
1
4 Way Trident Connector
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Cleaner Home 5 Cleaner Home
30V 60V
4
1
6 Way Trident Connector
MACHINE CONTROL
CAN BUS
7.46 Technical Reference Manual Chapter Issue 3 Jan 08
N4SK5
N4SK6
N4SK7
N4SK8
Pin No. Signal Pin No. Signal
1 Solvent Pump (DUI) 3 Paper Feed Motor/Vortex
Motor
20V 40V
1
4 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Cleaner Vacuum Power 2 0V
2 Way Trident Connector
1
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Cleaner Vacuum Sense
1
3 Way Trident Connector
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Levelness Screen Sensor 5 Levelness Cylinder Extended
30V 60V
4
1
6 Way Trident Connector
MACHINE CONTROL
CAN BUS
Chapter Issue 3 Jan 08 Technical Reference Manual 7.47
N4SK9
N4SK10
N4SK11
N4SK12
Pin No. Signal Pin No. Signal
1 Spare Output 3 Spare Output
20V 40V
1
4 Way Trident Connector
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Board Present 5 Product Sensor
30V 60V
4
1
6 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Oscillating Motor 2 0V
2 Way Trident Connector
1
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Cleaner Dropped 5 Spare Input
30V 60V
4
1
6 Way Trident Connector
