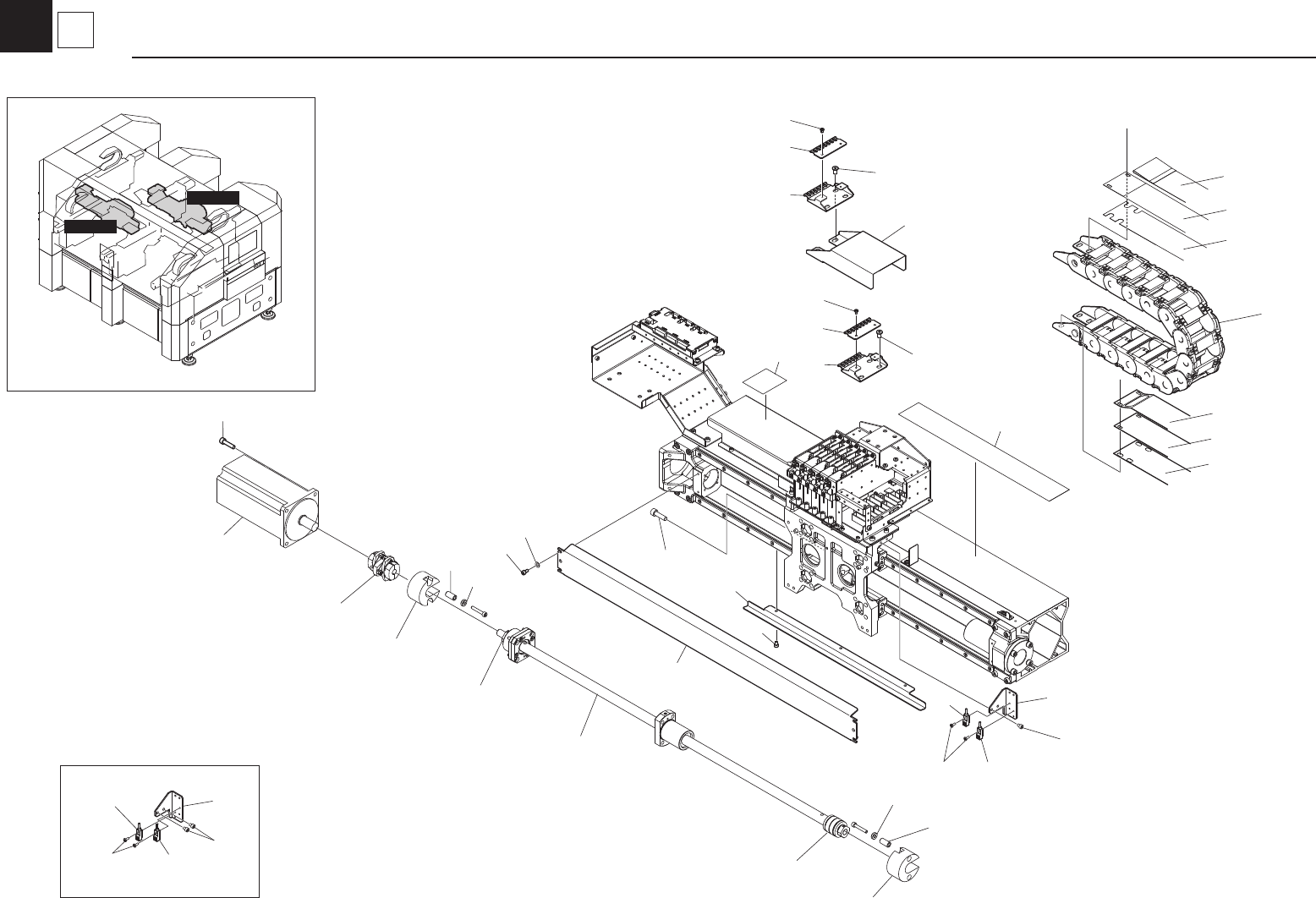

32 30 28 19,27 22 21 21 24 1 1 16 23 22 18,25,26 23 12 13 14 15 17 15 10 31 29 9 5 8 7 35 7 5 4 2 1 3 3 6 1 2 33 14 13 15 34 34 B T able C T able B T able 35 36 KHN-08091 1 3 2 X-axis (C,B T ABLE) Moving-axis
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1 KHN-M220A-00X TAPE 1,X DUCT 1 / × 39
2 KHN-M220B-00X TAPE 2,X DUCT 1 / × 40
3 KHN-M220C-00X TAPE 3,X DUCT 1 / × 41
4 KHN-M221A-A0X COVER.DUCT ASSY. 1 / × 42
5 90990-01J032 BOLT HEX.SOCKET HEAD 8 / × 43
6 KHN-M2267-A0X CABLE,DUCT 1 B × 44
7
KHN-M2268-00X PLATE,NUT 2 / × 45
8 KHN-M2269-10X
BRACKET,TAPE
1
/ ×
46
9
KHN-M2269-20X BRACKET,TAPE
1
/
×
47
10 KHN-M227E-00X COVER,GUIDE 1 /
48
11 KHN-M227G-00X COVER,B.S. 1 /
49
12 KHN-M2291-10X BRACKET,SENSOR 1 for A Table / × 50
13 KHN-M652A-80X SENSOR , X ORG 1 Origin B × 51
14 KHN-M652B-50X SENSOR , X OT 1 2nd Limit B × 52
15 91317-04006 BOLT HEX.SOCKET HEAD 13 M4X6 53
16 91317-04008 BOLT HEX.SOCKET HEAD 4 M4X8 54
17 92907-04200 WASHER PLAIN 10 55
18 KHN-M2248-00X SPACER 2 / × 56
19 KHN-M224D-00X SPACER 1 / × 57
20 58
21 KHN-M224H-00X DAMPER 2 /
59
22 KHN-M224J-00X COLLAR A 4 /
60
23 KHN-M224K-00X COLLAR B 4 /
61
24 KHN-M2271-00X SCREW BALL 1 /
r
62
25 KG2-M9173-00X LOCK NUT 1 / × 63
26 90990-26J008 BEARING 1 / × 64
27 KGS-M2628-00X LOCK NUT 1 / × 65
28 KM0-M2220-00X COUPLING,X-AXIS 1 / × 66
29 KGS-M220A-30X TAPE X-AXIS 2 / × 67
30 90K63-611403 AC SERVO MOTOR 1 B × 68
31 91317-05018 BOLT HEX.SOCKET HEAD 4 M5X18 69
32 91317-06025 BOLT HEX.SOCKET HEAD 4
M6X25
70
33 KHN-M2291-30X BRACKET,SENSOR 1
for D Table
/ × 71
34 98907-03008 SCREW BINDING HEAD 2
M3X8
72
35 98902-03005 SCREW BINDING HEAD 4
M3X5
73
36 KHW-M226B-00X LABEL (BIT TYPE) 1
/
74
37 75
38 76
KHN-080911
3
1
X-axis (A,D TABLE)
Moving-axis
32
30
28
19,27
22
21
21
24
11
16
23
22
18,25,26
23
12
13
14
15
17
15
10
31
29
9
5
8
7
35
7
5
4
2
1
3
3
6
1
2
33
14
13
15
34
34
B Table
C Table
B Table
35
36
KHN-080911
3
2
X-axis (C,B TABLE)
Moving-axis
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1 KHN-M220A-00X TAPE 1,X DUCT 1 / × 39
2 KHN-M220B-00X TAPE 2,X DUCT 1 / × 40
3 KHN-M220C-00X TAPE 3,X DUCT 1 / × 41
4 KHN-M221A-A0X COVER.DUCT ASSY. 1 / × 42
5 90990-01J032 BOLT HEX.SOCKET HEAD 8 / × 43
6 KHN-M2267-A0X CABLE,DUCT 1 B × 44
7
KHN-M2268-00X PLATE,NUT 2 / × 45
8 KHN-M2269-10X
BRACKET,TAPE
1
/ ×
46
9
KHN-M2269-20X BRACKET,TAPE
1
/
×
47
10 KHN-M227E-00X COVER,GUIDE 1 /
48
11 KHN-M227G-00X COVER,B.S. 1 /
49
12 KHN-M2291-20X BRACKET,SENSOR 1 for C Table / × 50
13 KHN-M652A-80X SENSOR , X ORG 1 Origin B × 51
14 KHN-M652B-50X SENSOR , X OT 1 2nd Limit B × 52
15 91317-04006 BOLT HEX.SOCKET HEAD 13 M4X6 53
16 91317-04008 BOLT HEX.SOCKET HEAD 4 M4X8 54
17 92907-04200 WASHER PLAIN 10 55
18 KHN-M2248-00X SPACER 2 / × 56
19 KHN-M224D-00X SPACER 1 / × 57
20 58
21 KHN-M224H-00X DAMPER 2 /
59
22 KHN-M224J-00X COLLAR A 4 /
60
23 KHN-M224K-00X COLLAR B 4 /
61
24 KHN-M2271-00X SCREW BALL 1 /
r
62
25 KG2-M9173-00X LOCK NUT 1 / × 63
26 90990-26J008 BEARING 1 / × 64
27 KGS-M2628-00X LOCK NUT 1 / × 65
28 KM0-M2220-00X COUPLING,X-AXIS 1 / × 66
29 KGS-M220A-30X TAPE X-AXIS 2 / × 67
30 90K63-611403 AC SERVO MOTOR 1 B × 68
31 91317-05018 BOLT HEX.SOCKET HEAD 4 M5X18 69
32 91317-06025 BOLT HEX.SOCKET HEAD 4
M6X25
70
33 KHN-M2291-40X BRACKET,SENSOR 1 for B Table / × 71
34 98907-03008 SCREW BINDING HEAD 2
M3X8
72
35 98902-03005 SCREW BINDING HEAD 4
M3X5
73
36
KHW-M226B-00X LABEL (BIT TYPE) 1
/
74
37 75
38 76
KHN-080911
3
2
X-axis (C,B TABLE)
Moving-axis
