No. Part No. Part Name Uses No. Part No. Part Name Uses 1 KHN-M8860-00X CLEANING KIT Spline shaft cleaner kit 34 2 KV8-M8883-A0X NEEDLE ASSY Nozzle cleaning wire 35 3 KV7-M8880-20X BRUSH, FEEDER Feeder plate cleaning bru…

100%1 / 53
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
16 17 18 19
KHN-M8860-00X KV8-M8883-A0X KV7-M8880-20X KGA-M3801-00X KGA-M3803-00X
KV8-M8881-A0X KU4-M8590-00X K48-M3856-00X KV8-M8870-00X
K48-M3852-01X K48-M3857-00X K48-M3854-00X KM8-M34E0-B1X KJ3-MY010-00X
KJ3-MJA00-00X KJ3-M34E0-01X KV7-M3823-00X KV7-M8890-00X
KGA-M3802-00X
KHN-1010
11
1

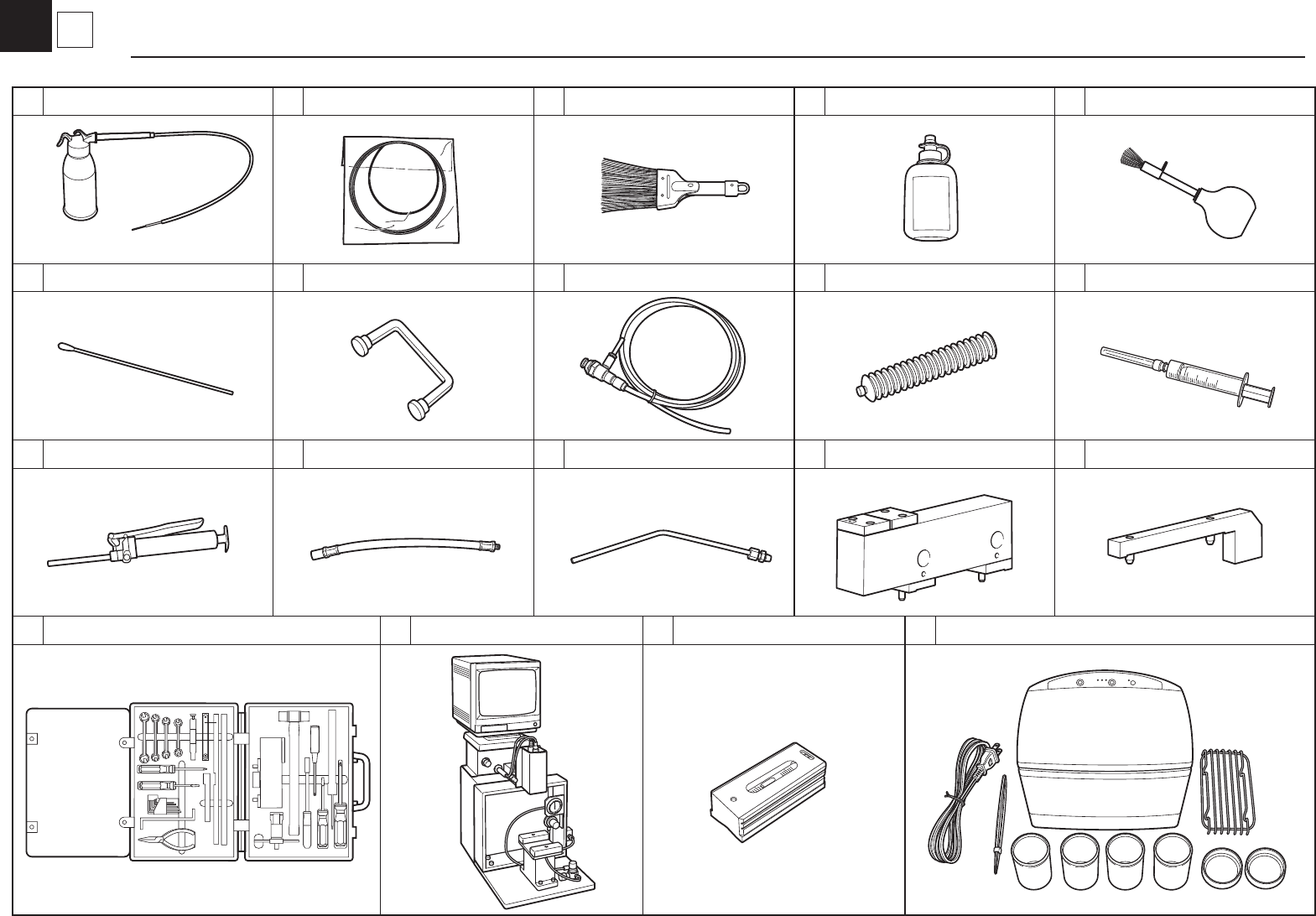

Tools
Tools
No. Part No. Part Name Uses No. Part No. Part Name Uses
1 KHN-M8860-00X CLEANING KIT Spline shaft cleaner kit 34
2 KV8-M8883-A0X NEEDLE ASSY Nozzle cleaning wire 35
3 KV7-M8880-20X
BRUSH, FEEDER
Feeder plate cleaning brush
36
4 KGA-M3801-00X CLEANER, LENS Lens cleaner 37
5 KGA-M3803-00X BLOWER Lens blow brush 38
6 KGA-M3802-00X SWAB Cotton swab sticks 34
7
KV8-M8881-A0X NEEDLE CLEANER ASSY Nozzle cleaning wire handle
35
8
KU4-M8590-00 AIR BLOW TOOL Air blow gun
36
9
K48-M3856-00 GREASE PACK Lithium-based grease (NSL 80g)
37
10 KV8-M8870-00 SYRYNGE OIL
Oil syringe applicator for nozzle
holder
38
39
11
K48-M3852-01 GREASE GUN Grease gun (for Cartlidge )
40
12
K48-M3857-00X GREASE NOZZLE Grease gun nozzle
41
13
K48-M3854-00X
GREASE NOZZLE Grease gun nozzle 42
14 KM8-M34E0-B1X FEEDER JIG ASSY Check and adjust pickup position 43
15 KJ3-MY010-00X MASTER JIG
Adjust the feeder oating detect
sensor
44
45
16 KJ3-MJA00-00X TOOL CASE ASSY
Tool set for exchanging and adjusting
tape feeders
46
47
17 KJ3-M34E0-01X JIG FEEDER PICK POS
Check and adjust the pickup position
on tape feeders with monitor
48
49
18 KV7-M3823-00X FLAT LEVEL 0.1mm/m
Adjust the machine in the horizontal
position
50
51
19 KV7-M8890-00X ULTRAS. CLEANER SET For nozzle cleaning 52
20 53
21 54
22 55
23 56
24 57
25 58
26 59
27 60
28 61
29 62
30 63
31 64
32 65
33 66
KHN-1010
11
1
Tools
Tools
