Ref No. Remark s R 1 Q'ty 1-A T/F;44 ;56mm;継目検出;深さ26mm;タイプA Tape Feeder; 44; 56 mm; depth 26mm; Splice sens; Type A ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit N o . キット 品 番 Kit Name キット名称 N610133539AA Part Nam e 備 考…
1-A
T/F;44;56mm;継目検出;深さ26mm;タイプA
Tape Feeder; 44; 56 mm; depth 26mm; Splice sens; Type A
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610133539AA
ｾｸｼｮﾝNo.

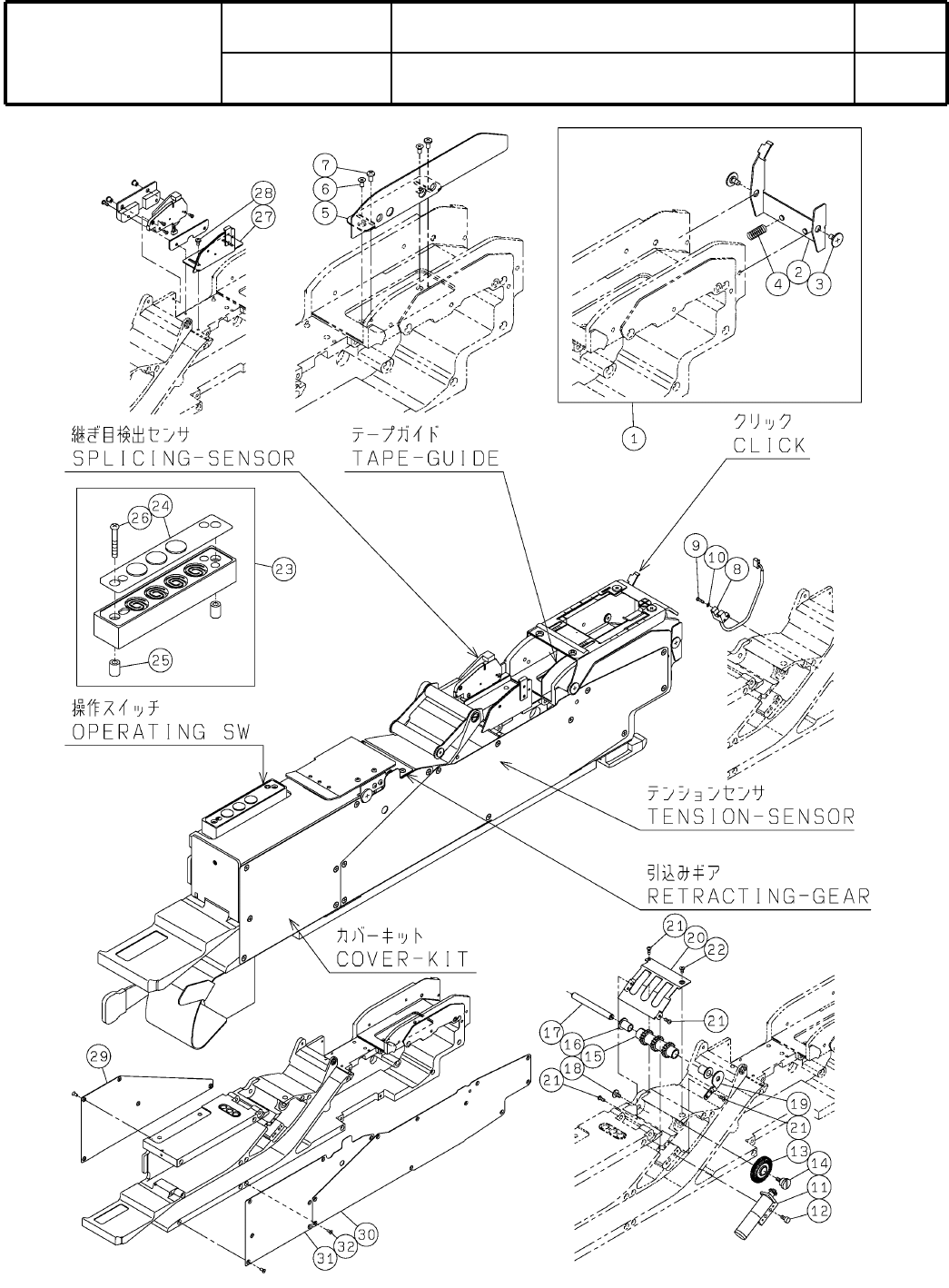

PARTS LAYOUT
Section No.
--
M1
( KN610133539AA-07-1 )
Ref
No.
Remarks
R
1
Q'ty
1-A
T/F;44;56mm;継目検出;深さ26mm;タイプA
Tape Feeder; 44; 56 mm; depth 26mm; Splice sens; Type A
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610133539AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
MAGNET
1
1 KXF0DYAZA00 NEO33
SCREW
1
2 XXE25C3FP
Hexagon socket set screw Flat point M2.5X3-45H SCHP
COVER
1
3 N210191773AA
PIN
1
4 KXFA1M2AA00
PRESSER-COVER
1
5 N610090963AA
COVER
1
6 N210020703AA
COVER
1
7 KXFA1PR5B01
PIN
2
8 N210001880AA
GUIDE
1
9 N210006457AA
PIN
2
10 KXFA1PQ5B00
PIN
1
11 KXFA1Q0LA00
PLATE
1
12 KXFA1Q0PA00
PRESSER-PLATE
1
13 N610072586AB
GUIDE
1
14 KXFA1P3AA00
SCREW
2
15 KXF0DYAJA00 S020659-2001(Delivery drawing available)
TENSIONER
1
16 N610134270AB
LEVER
1
17 N210158693AC
LEVER
1
18 N210001888AB
PIN
1
19 KXFA1M3AA00
PIN
1
20 N210044529AA
PIN
1
21 KXFA1LZAA00
ROLLER
2
22 KXFA1LYAA00
PIN
2
23 KXFA1KAAA00
SPRING
1
24 KXF0DK6AA00 SP(Drawing available KXF0DK6AA00)
COVER
1
25 N210158728AA
SCREW
2
26 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
PIN
2
27 KXFA1KRAA00
LEVER
1
28 KXFA1P0AA00
LEVER
1
29 KXFA1NSAA00
GEAR
1
30 N210151827AA
BUSH
2
31 KXF0CWGAA00 80F-0610
PIN
1
32 KXFA1M1AA00
PIN
1
33 KXFA1KAAA00
COMB
1
34 N210154554AB
SCREW
6
35 XSN25+4VW
Cross recessed Pan head machine screw M2.5X4-A2-70
SPRING
2
36 N210114131AA
M2
--
( KN610133539AA-07-1 )
1-B
T/F;44;56mm;継目検出;深さ26mm;タイプA
Tape Feeder; 44; 56 mm; depth 26mm; Splice sens; Type A
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610133539AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M3
( KN610133539AA-07-2 )
