Pneumatic unit 2 Retrofit instructions Pneumatic maintenance unit SIPLACE D1/D2 / S-27 HM 05/2007 Edition 11 2 Retrofit instructions Pneumatic maintenance unit SIPLACE D1/D2 / S-27 HM 2.1 Reason for retrofit When the sec…
1 Nachrüstanleitung Pneumatikwartungseinheit SIPLACE D1/D2 / S-27 HM Druckluftwartungseinheit
Ausgabe 05/2007
10

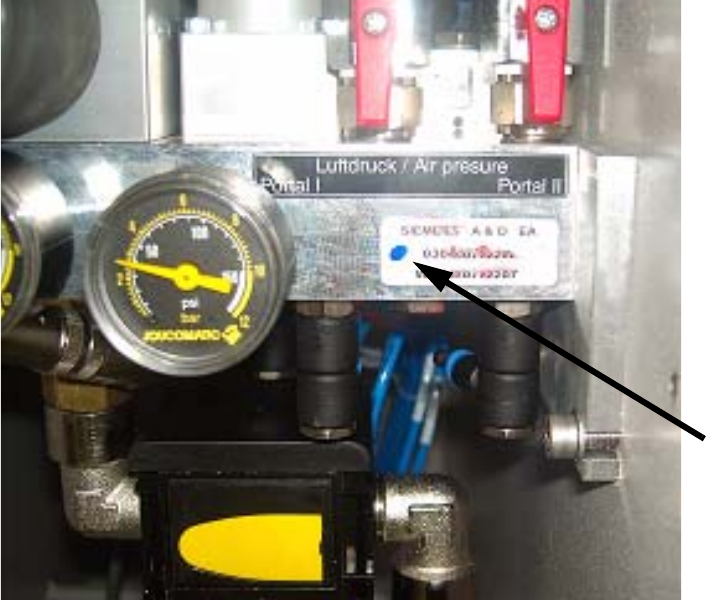

: Bei geprüfter und korrekter Funktion markieren Sie die Wartungseinheit mit einem wasserfe-
sten blauen Punkt.
1
1
: Vermerken Sie den Umbau im Logbuch.
1
1
1
Markierung:
blauer Punkt
Pneumatic unit 2 Retrofit instructions Pneumatic maintenance unit SIPLACE D1/D2 / S-27 HM
05/2007 Edition
11
2 Retrofit instructions
Pneumatic maintenance unit
SIPLACE D1/D2 / S-27 HM
2.1 Reason for retrofit
When the security loop is opening (opening the covers, press the emergency stop), the air pres-
sure system is not exhausting. The reason is a wrong positioned exhausting drill in the base of the
air service unit. In that case, there is a big injury risk, because the cutting units can move up to 4
times, when they get manual operated. 2
2 Retrofit instructions Pneumatic maintenance unit SIPLACE D1/D2 / S-27 HM Pneumatic unit
05/2007 Edition
12
2.2 Pneumatic maintenance units
The retrofit has to be done at the following pneumatic maintenance units: 2
2
Machines with the following serial number are concerned: 2
If in one of these S-27 HM machines an other pneumatic unit (see item numbers) is fitted, the
pneumatic unit is an older version. These are not concerned of the retrofit. 2
2
Withe the next version of the pneumatic units (-02) will have the exhausting drill at the right posi-
tion. 2
2
2.3 Retrofit kit
2
2
2
Pneumatic unit for SIPLACE D1, D2
Item no.: 03043756-01
Pneumatic unit for SIPLACE S-27 HM
Item no.: 03039800-01
SIPLACE D1/D2
Serial number C1 to C90 and C1000 to C1023 with pneumatic unit
item no. 03043756-01
SIPLACE S-27 HM
Serial number 609 to 690 with pneumatic unit item no: 03039800-01
Retrofit kit Pneumatic unit D1 (as well for S-27 HM)
item no.: 03059195-xx
1 Adapter plate air exhaust
item no.: 03058921-xx
1 Sealing cutting valve
item no.: 03059200-xx
2 Screws DIN 84-M3 x 35-4.8
item no.: 00301140-xx
1 Retrofit instructions Pneumatic unit SIPLACE D1/D2 / S-27 HM
item no.: 00195626-xx
